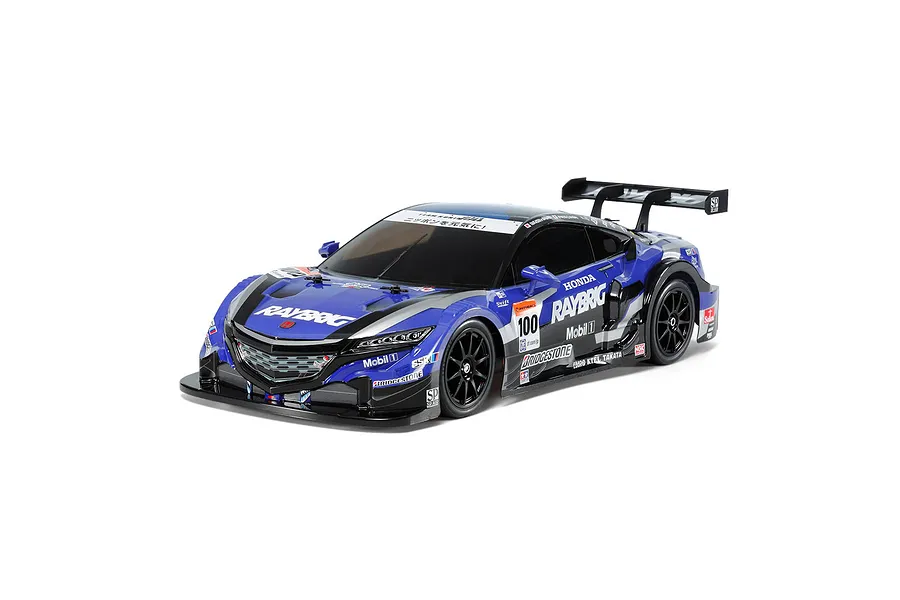

Tamiya TT-02 Honda Raybrig NSX Concept-GT RC On Road Car Electric 4WD 1/10 Scale Kit

Brand: Tamiya | SKU: 58599

sold out

write a review

$181.78

Add to Wishlist

Shop replacement & upgrade parts for this model

Shop Parts

TT-02 Shaft Driven 4WD Chassis

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Features

The durable polycarbonate body accurately captures the low nose and complex make up of the front and rear ends
The TT-02 is a highly versatile and easy-to-maintain chassis
Separate parts are included to recreate dynamic rear wing and unique door mirrors
Comes with black 10-spoke wheels
Includes body markings and masking stickers for use when painting the model
Includes Tamiya TBLE-02S ESC (capable of running brushed and brushless motors)

Specifications

Length: 475mm (18.7")
Width: 188mm (7.40")
Height: 123mm (4.84")
Wheelbase: 257mm (10.1")
Body Shell: Clear Polycarbonate
Chassis Type: TT-02
Construction Type: Assembly Kit
Motor: Type 540 Brushed
Electronic Speed Control (ESC): Tamiya TBLE-02S ESC
Motor Mount: Longitudinal
Wheel Drive: 4WD
Gear Ratio: 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
Friction Shocks: Front & Rear
Suspension: 4-Wheel Independent Double-Wishbone
Terrain Use: On Road

Included items

Description	QTY
1/10 TT-02 Honda Raybrig NSX Concept-GT Electric On Road RC Car Kit	1

Required Items

Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. To view the entire range of polycarbonate safe paints, please CLICK HERE

Specifications

Factory Specs

Front Shock Oil
Max LiPo Power
Battery Connector

RC Car

Completion: Kit
Drivetrain: 4WD
Max LiPo Power: 2S (7.4v)
On/Off Road: On Road
Chassis Type: Car
Power Source: Electric Brushed
Skill Level: Beginner
Scale: 1/10
