Name: Tamiya TT-02 Raikiri GT RC Car Electric 4WD 1/10 Scale Kit
Brand: Tamiya
SKU: TAM-58626
Price: 199.54 AUD
Availability: Discontinued

Recommended products

FlySky FS-GT2 2.4Ghz 2ch Radio w/ Receiver
9 reviews
$57.39
G.T. Power N802 NiMH/NiCad Charger
8 reviews
$31.52
Power HD Standard LW-13MG 13kg Metal Geared Waterproof Servo
11 reviews
$49.98
Sold out
Gens Ace 7.2v 3000Mah NiMH Battery
$54.16

Overview

Please Note:

This kit comes without a Servo, Battery, Charger, or Transmitter.

The stylish Raikiri shell is the brainchild of Japanese designer Kota Nezu of znug design, who has contributed to a number of popular Tamiya products. The wide and lowdown form of the Raikiri GT has been adapted for use on electric R/C cars and is equipped with a stylish wing at the rear. Markings are included to decorate the body.

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. It features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, offering 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups, in addition to a range of 10 possible gear ratios. Brake disc-shaped wheel hubs and stylish front bumper supports add to the look. Gun metal colour 12-spoke rims are paired with slick tyres for a racey finish.

Note

This body shell comes completely unpainted and may require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies — standard paints will not adhere and/or may cause damage to the body shell's surface.

Features

Highly detailed 1/10 Raikiri GT clear polycarbonate body shell
Super tough bathtub-type chassis
Balanced longitudinal chassis layout
Adjustable wheelbase
Shaft-driven 4WD system
Front/rear 4-bevel resin differentials
3-piece steering tie-rod system for superior handling
4-wheel double wishbone suspension
Front/rear friction dampers
Powerful brushed 540 motor
Racing Wing Set A (Item 54457) included, with wing stay mounts allowing different aero setups

In the box

1x 1/10 TT-02 Raikiri GT Electric On Road RC Car Kit
1x Decals set
1x Product Manual

You'll need

7.2V NiMH Battery & Compatible Charger
Standard Sized Servo
2-Channel Transmitter & Receiver
Tamiya PS Paint

Highlights

Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

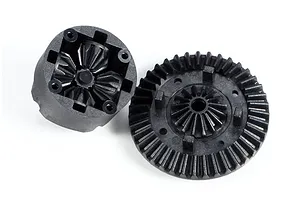

Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.

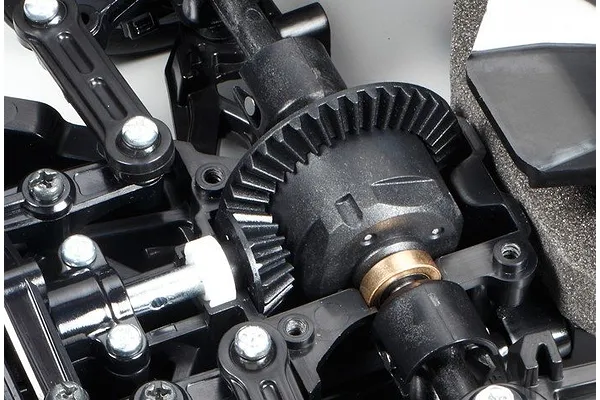

TT-02 Raikiri GT chassis detail

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right.

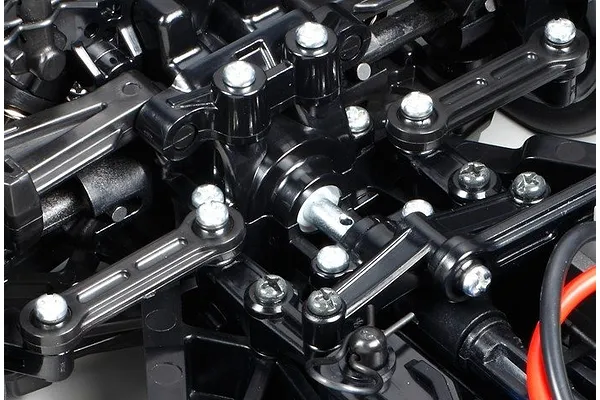

TT-02 Raikiri GT gearbox detail

The gearbox cover can be removed by simply loosening screws on the frame.

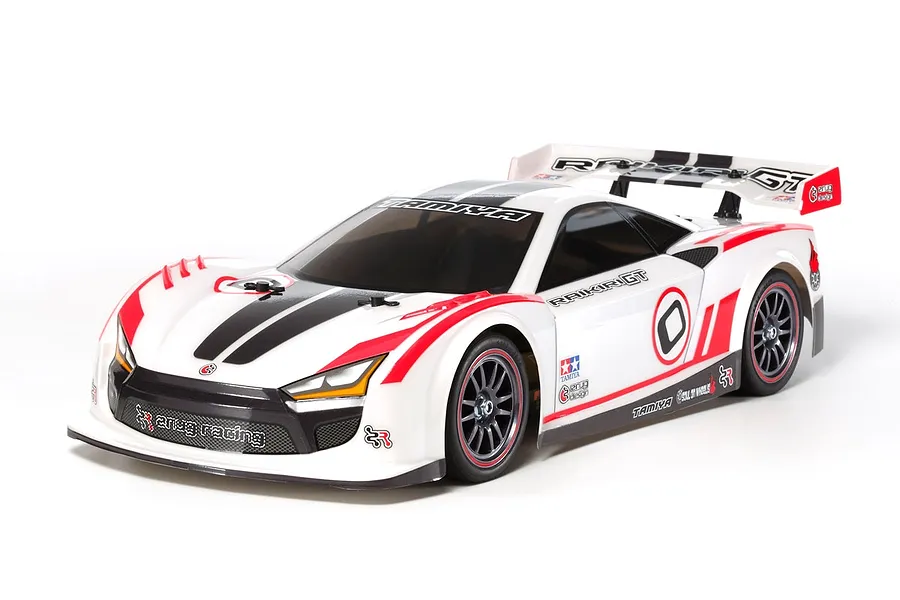

Raikiri GT body shell and completed model

The stylish Raikiri GT shell is the brainchild of Japanese designer Kota Nezu and is bound to turn heads at the local racetrack.

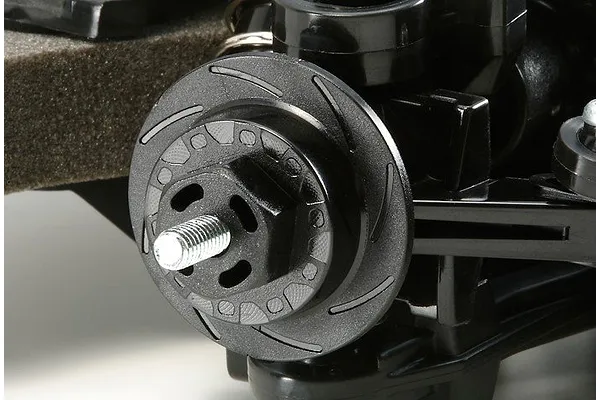

Raikiri GT wheel hub and tyre detail

Gun Metal colour 12-spoke rims are paired with slick tyres for a racey finish.

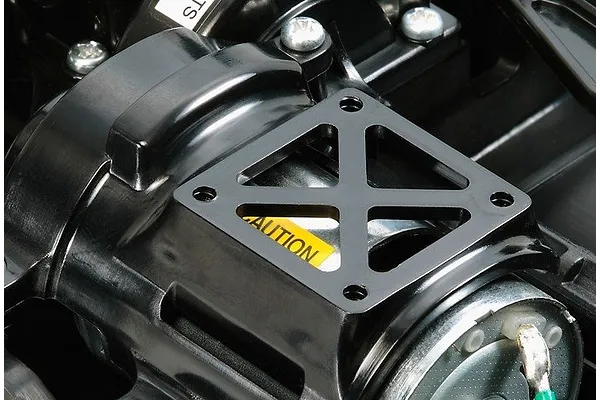

Raikiri GT motor and cooling duct

The motor cover includes a removable cooling duct (not attached in above image).

Specifications

Scale	1/10
Length	432mm (17.0")
Width	188mm (7.40")
Height	114mm (4.48")
Wheelbase	257mm (10.1")
Body Shell	Clear Polycarbonate
Chassis Type	TT-02
Construction Type	Kit
Motor	540-Brushed Type
Electronic Speed Control (ESC)	Included
Wheel Drive	4WD
Gear Ratio	8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with separately-sold pinions)
Shocks	Friction Front & Rear
Suspension	Fully independent double wishbone
Terrain Use	On Road
