Tamiya TA08R RC Race Chassis Kit: High-performance race chassis. 4WD, 2-belt drive, carbon/aluminium hop-ups, precision tuned for competitive racing.
2-belt driven 4WD chassis with numerous hop-up options
Carbon fibre upper deck and reinforced plastic lower deck for rigidity
Aluminium upper arm mounts and adjustable suspension mounts for precise tuning
Super short big bore dampers and low-friction king pin-balls for smooth suspension
Designed for RC Racers after peak performance
The body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or may cause damage to the body shell's surface.

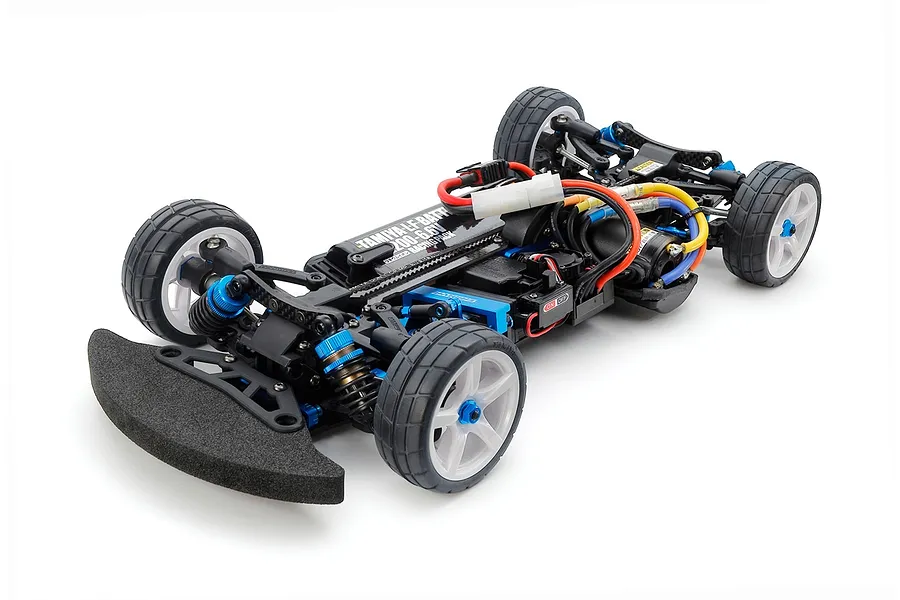

The Tamiya TA08R RC Chassis is a 1/10 scale kit that elevates the TA08 platform with a comprehensive suite of hop-up parts. This kit emphasises rigidity and precision, featuring a carbon fibre upper deck and a reinforced lower deck. The suspension system is optimised for performance, with aluminium upper arm mounts, adjustable suspension mounts, and super short big bore dampers. The drivetrain is enhanced with front double cardan drive shafts and rear universal shafts, ensuring efficient power delivery. This limited-edition chassis comes with a convenient carry case, making it easy to transport your racing machine.
This kit is tailored for serious RC racers seeking a high-performance chassis with minimal need for after market upgrades. The included hop-up parts, valued at over $450, provide a significant performance advantage. The focus on rigidity, precision, and smooth power delivery makes this chassis a formidable competitor on the track.
Tamiya ups the ante with the TA08 PRO, packing it with an impressive array of pre-installed aluminium and carbon fibre hop-up parts. These upgrades, usually sold separately and sometimes exclusive to this option, enhance the chassis's performance and visual appeal right out of the box. This generous inclusion demonstrates Tamiya's commitment to delivering a truly exceptional on-road touring car experience.
The TA08 PRO further elevates your on-road driving experience with the inclusion of the renowned big bore super short aluminium shock absorbers. These exceptional shocks, deliver unparalleled smoothness and precise handling, allowing you to master the track with confidence. This upgrade, typically offered separately, underscores Tamiya's commitment to providing a ready-to-race package that surpasses expectations.

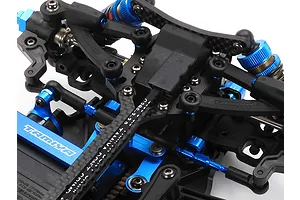

Tamiya has precisely crafted the TA08 PRO with a carbon fibre centre brace, offering crucial structural support without compromising weight. This strategic addition enhances chassis rigidity while maintaining a low centre of gravity, resulting in superior stability and handling on the track. This optimisation exemplifies Tamiya's dedication to achieving the perfect balance between performance and weight efficiency in their top-of-the-line releases.

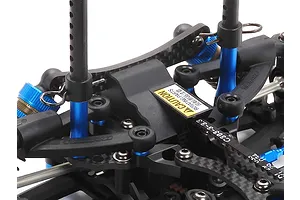

Prevent body wobble with rear body mounts attached to a carbon fibre plate and aluminium mounts.

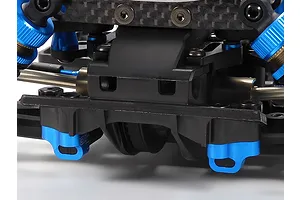

Minimise flex with additional ribs on the lower deck, and fine-tune your setup with adjustable suspension mounts.

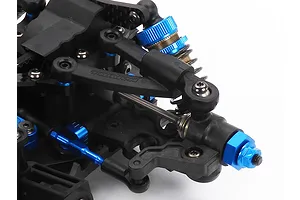

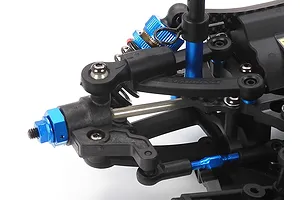

Reduce toe angle variation with linear steering tie-rods and durable aluminium bridge and arms.
2mm carbon fibre upper deck
Reinforced plastic lower deck with additional ribs
Aluminium upper arm mounts
Aluminium adjustable suspension mounts (XB/A)

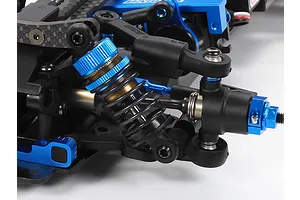

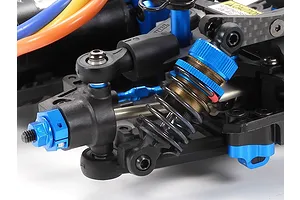

Super short big bore dampers with VG O-rings
Low-friction king pin balls
Front double cardan drive shafts with lightweight cross joints and casings
Rear universal shafts with 43mm swing shafts and low-friction cross joints

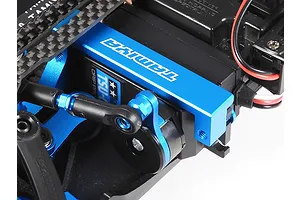

Aluminium servo mount
Aluminium steering linkage
Clamp-type wheel hubs (4mm)
Front direct pulley with aluminium direct cups
Rear gear differential with aluminium diff joints and VG O-rings

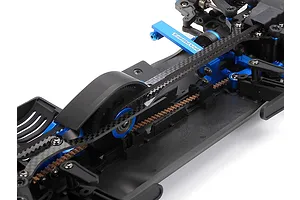

TRF420 centre pulley and 71T spur gear
Carbon fibre rear body mount plate and aluminium posts

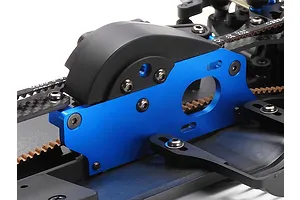

Aluminium motor mount with upper deck attachment points
Includes full ball bearings
Optimised for competitive racing with included high-end hop-up parts
Toe control rear suspension helps match toe angle with compressed suspension
Comes with a convenient carry case
Genuine Tamiya Product
Length: 373mm (14.6")
Width: 182mm (7.1")
Height: N/A
Wheelbase: 257mm (10.1")
Chassis: Stepped V Carbon Fibre Reinforced Plastic Lower Deck, 2mm Carbon Fibre Upper Deck
Drivetrain:Â 2-Belt Driven Transverse Motor
Suspension: 4-Wheel Independent Double Wishbone, TRF Super Short Big Bore Dampers
Bearings: Full ball bearings
Motor: N/A
ESC: N/A
1x Tamiya TA08R Chassis RC Car Electric 4WD 1/10 Scale Kit
1x 1/10 Body Shell
1x Tyres
1x Type 540 motor
1x 2-Channel RC System with ESC
1x R6/AA/UM3 Batteries for Transmitter
1x 7.2-7.4V Battery Pack & Charger
Consult manual for maintenance info and setup options.
-
Completion
- Kit
-
Drivetrain
- 4WD
-
Max LiPo Power
- 2S (7.4v)
-
On/Off Road
- On Road
-
Chassis Type
- Car
-
Power Source
- Electric
-
Skill Level
- Expert
-
Scale
- 1/10
-
Max LiPo Power
- 2S (7.4v)
