Tamiya TRF104 RC Formula 1 Car Electric 2WD 1/10 Scale Kit

  • 1/10
  • 2WD
  • Kit

Part no. 42389

DiscontinuedWrite a review
1 / 2
1 / 2

This product has been discontinued.

Contact us

No longer made. In stock now: similar

Overview

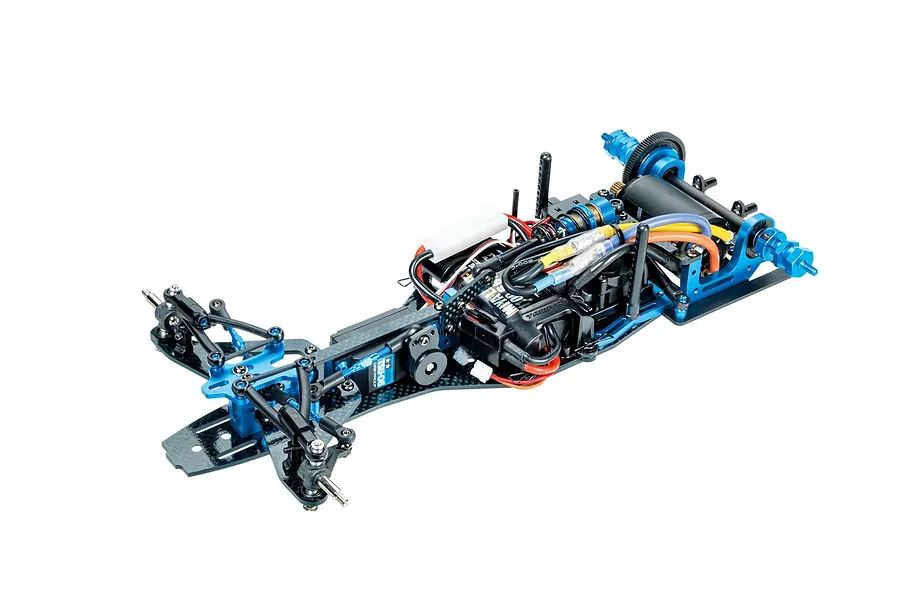

Get ready for a new level of F1 racing with the Tamiya TRF104 RC Formula 1 Car Kit! This high-spec 2WD chassis, built around carbon fibre & aluminium components, is a formidable opponent. Enjoy the fun of building this precision machine, exploring its updated suspension & optimising its RC equipment layout for ultimate performance!

Boasts updated front suspension with adjustable camber & caster. Innovative rear suspension uses motor mount ball connectors; roll controlled by springs & pitching by FRP plate/TRF shock. RC equipment centrally positioned for superior rear grip. Motor mount allows ground clearance & wheelbase adjustments. Advanced steering linkage offers 4 types of Ackerman. Full ball bearings & a carbon fibre diff shaft complete this high-end racer!

Features

  • High-spec 2WD F1 chassis with carbon fibre & aluminium components
  • Updated front suspension with adjustable camber & caster
  • Innovative rear suspension with central roll & adjustable pitching
  • Optimised RC equipment layout for superior rear grip
  • Adjustable motor mount for ground clearance & wheelbase tuning
  • Advanced steering linkage with 4 types of Ackerman adjustments
  • Lightweight, durable carbon fibre differential shaft & full ball bearings
  • Two rear wing mount options for custom aerodynamic setup
  • Your ultimate challenge for competitive F1 racing!
  • Genuine Tamiya Product

In the box

  • 1x Tamiya TRF104 RC Formula 1 Car Kit (Requires Assembly)
  • 1x Set Of Carbon Fibre Chassis Components
  • 1x Set Of Aluminium Chassis Components
  • 1x Set Of Carbon Fibre Front Lower Arms
  • 1x Set Of Plastic Upper A-Arms (Front)
  • 1x Rear Differential Unit (Carbon Fibre Shaft)
  • 1x TRF Shock
  • 1x Square-Shaped Battery Holder
  • 1x 2mm Thick Carbon Fibre Rear Wing Plate
  • 1x Set Of Full Ball Bearings
  • 11x 1060 Sealed Flanged Ball Bearings
  • 4x 1050 Sealed Ball Bearings
  • 1x 1150 Sealed Ball Bearing
  • 1x 1280 Sealed Ball Bearing
  • 1x Set Of Instructions / Manual

You'll need

  • 1x 2-Channel Radio System (Transmitter & Receiver)
  • 1x Steering Servo
  • 1x Electronic Speed Control (ESC)
  • 1x 540-Size Electric Motor
  • 1x 7.4V LiPo Or 7.2V NiMH Battery Pack
  • 1x Compatible Battery Charger
  • 1x F-1 Body Parts Set
  • 1x Set Of F1 Wheels
  • 1x Set Of F1 Tyres
  • 1x Tamiya PS Polycarbonate Paint (For Body)

Specifications

LengthN/A
WidthN/A
HeightN/A
WheelbaseN/A
WeightN/A
ChassisTRF104 Carbon Fibre Weave
SuspensionCVA Oil-Filled Rear Mono Shock, Coil Spring Front
Drivetrain2WD, Pressure Plate Ball Differential
MotorSold Separately
ESCSold Separately

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelExperienced
Power SourceElectric
Chassis TypeCar
On/Off RoadOn Road
Drivetrain2WD

RC Kit

Suited Motor/ESC TypeElectric

Factory Specs

Battery ConnectorNot Included
