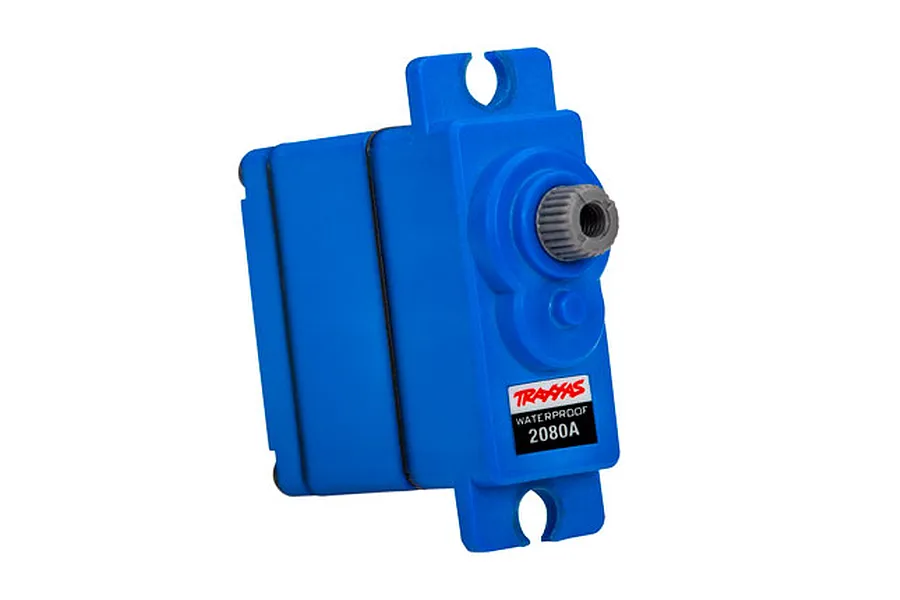

Traxxas Blue Micro Waterproof 3kg Servo
Brand: Traxxas
|
SKU: 2080A
1 in stock
$69.44
Want more than 1?
Looking for spare parts or upgrades?
Login to My Garage to check compatibility.
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
TRA-2080A Servo Specifications
- Total Height (A) = 37mm
- Body Width (B) = 29.4mm
- Below Mount (C) = 23.8mm
- Above Mount (D) = 13.2mm
- Total Length (E) = 39.8mm
- Total Width (F) = 14mm
Specifications
| Servo | |
|---|---|
| Size: | Micro |
| 6V Torque kg/cm: | 3 |
| 6V Sec/60 Degrees: | 0.11 |
| Gear Material: | Plastic |
| Waterproof Casing: | Yes |
| Signal Type: | Digital |
| Drive Motor Type: | 3-Pole |
| Case Material: | Plastic |
| Rotational Degrees: | 120° (Normal) |
| Total Height: | 37mm |
| Body Length: | 29.4mm |
| Bottom to Under Mount: | 23.8mm |
| Top to Under Mount: | 13.2mm |
| Total Length: | 39.8mm |
| Total Width: | 14mm |
