Yeah Racing

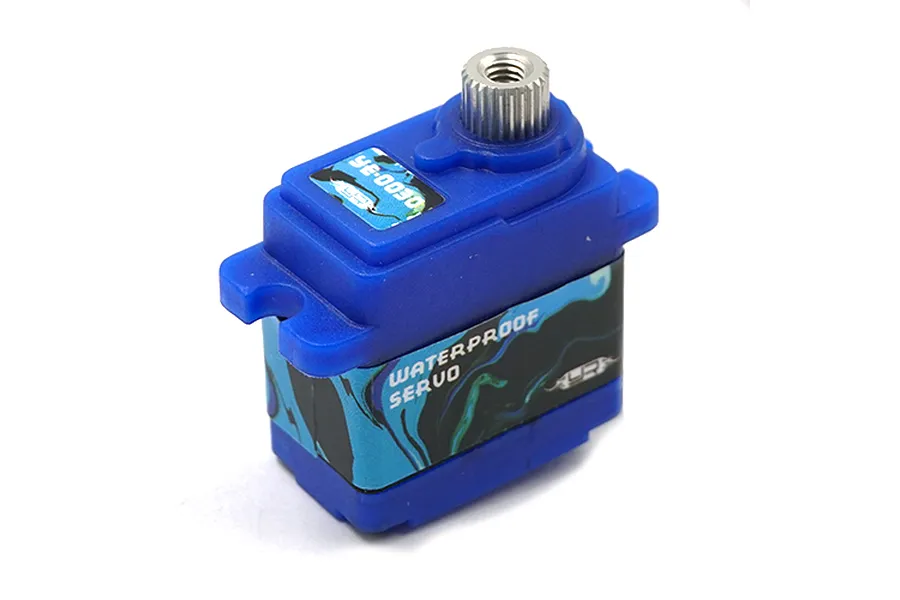

Yeah Racing TRX-4 Micro Waterproof 2.2kg Metal Geared Servo

Part no. YE-0030

Sold outNo reviews yet
1 / 3
1 / 3

$42.82

or 4 fortnightly payments of $10.70 with afterpay or PayPal, or zip

In stock now: similar

Will it fit?

Check fit: add your vehicle to My GarageFits 15 vehicles

Alternative products

Overview

Upgrade micro servo for diff locking and gear changing on Traxxas's line of scale crawlers! Features full metal gears for utmost durability and reliability on the trail! Being waterproof means you can take this servo anywhere on the trail and not worry about it failing! Long wires and servo horns included if you want to use this servo in other applications as well!

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver to smooth the current delivery. However, in some cases, you may need to install an external BEC.

Features

  • For: Traxxas TRX-4 / TRX-6
  • Material: Plastic Case / Metal Gears
  • Color: Blue

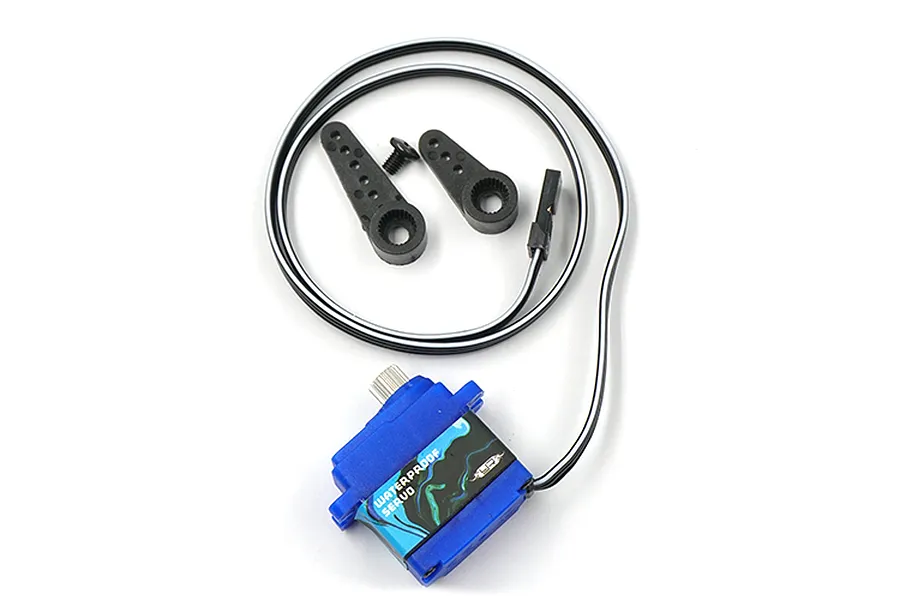

In the box

  • Waterproof Micro Servo (1 pc)
  • Servo Horns (2 pcs)

Specifications

Torque (4.8V)1.8kg-cm
Torque (6.0V)2.2kg-cm
Torque (7.4V)2.6kg-cm
Speed0.15s (4.8V), 0.12s (6.0V), 0.10s (7.4V)
Operating Voltage4.8–7.4V
Weight16.0g
Servo Spline25T
Gear TypeCopper & Aluminum
Size22.5 x 12.5 x 24.0mm
Yeah Racing TR-4 Servo Dimensions:
Total Height (A)29mm
Body Width (B)22.8mm
Below Mount (C)15.5mm
Above Mount (D)11.5mm
Total Length (E)29.7mm
Total Width (F)12.8mm

Servo

Servo
SizeConventionally sized servo namesSub Micro
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingYes
Case MaterialPlastic
Height (A)29mm
Body Length (B)22.8mm
Bottom to Under Mount (C)15.5mm
Top to Under Mount (D)11.5mm
Length (E)29.7mm
Width (F)12.8mm
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline2.2
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.12
