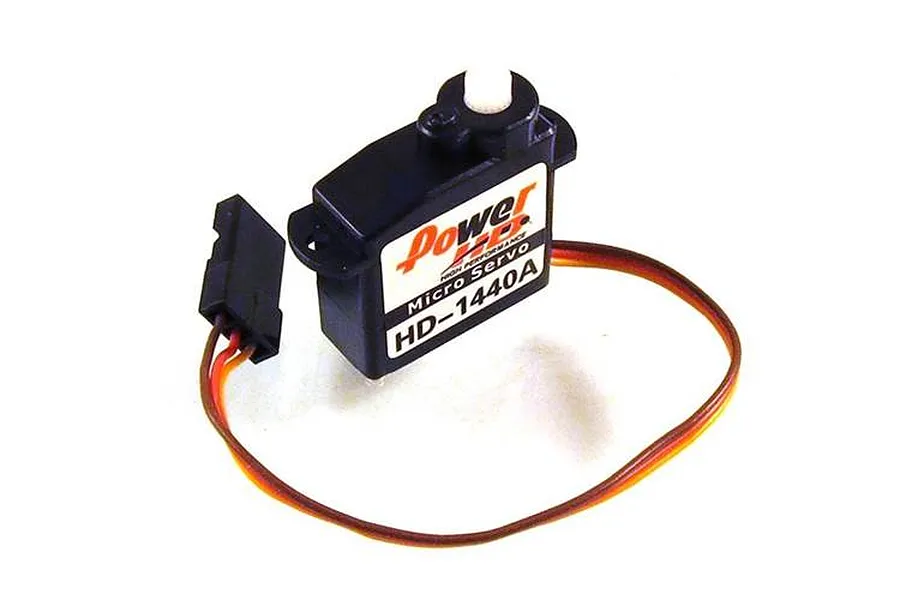

Power HD Sub-Micro 0.8kg 6V Analog Servo
Videos
Description
Power HD-H1440A Servo.
How To: Install a ServoIn this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Power HD 1440A Servo Dimensions
Total Height (A) = 22.2mm
Body Width (B) = 20.2mm
Below Mount (C) = 16.3mm
Above Mount (D) = 5.9mm
Total Length (E) = 23.5mm
Total Width (F) = 8.5mm
Specifications
Torque(4.8V): 0.6 kg-cm (8.33 oz/in)
Torque(6.0V): 0.8 kg-cm (11.10 oz/in)
Speed: 0.12 sec (4.8V) ? 0.10 sec (6.0V)
Operating Voltage?4.8 ~ 6.0 DC Volts
Weight: 4.4 g (0.15 oz)
Bearing Type?No
Motor Type?Brushed
Gear Type?Plastic
Operating Temperature?-20?~60?
Working frequence?1520?s / 50hz
Size?20.2 x 8.5 x 20.2 mm ( 0.79 x 0.33 x 0.79 in)
| Description | QTY |
|---|---|
| Micro 0.8kg 6V Servo | 1 |
| Servo Hardware Set | 1 |
Specifications
Servo
-
Height (A)
- 22.2mm
-
Body Length (B)
- 20.2mm
-
Bottom to Under Mount (C)
- 16.3mm
-
Top to Under Mount (D)
- 5.9mm
-
Length (E)
- 23.5mm
-
Width (F)
- 8.5mm
-
SizeConventionally sized servo names
- Sub Micro
-
Gear Material
- Plastic
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 0.8
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.10
-
Signal Type
- Analog
-
Drive Motor Type
- Brushed
-
Case Material
- Plastic
-
Rotational Degrees
- 120° (Normal)
