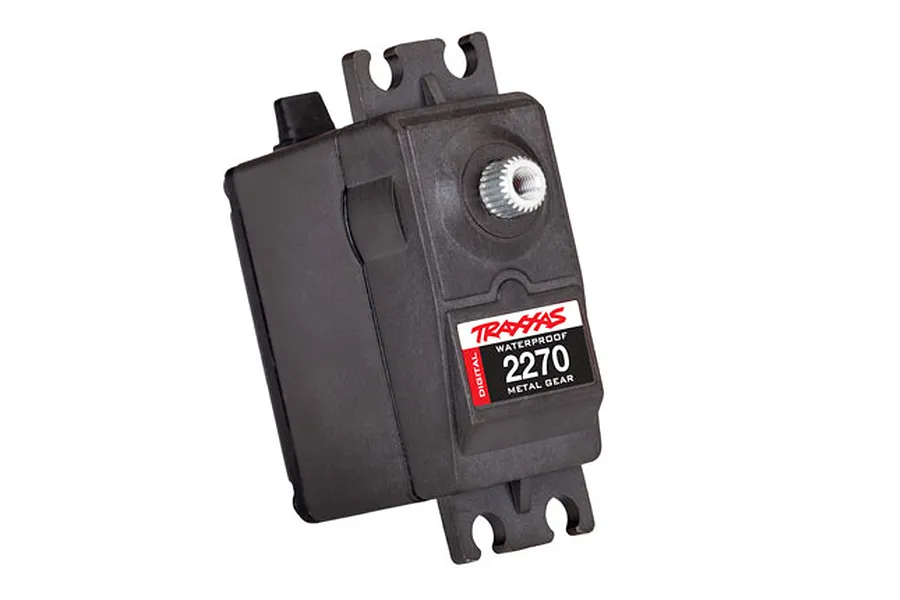

Traxxas 2270 Standard 17kg Metal Geared Waterproof Servo

Videos

Traxxas 2270 Standard 17kg Metal Geared Waterproof Servo

Brand: Traxxas | SKU: 2270

sold out

write a review

$147.59

Add to Wishlist

Shop replacement & upgrade parts for this model

Shop Parts

Loading compatibility information...

Description

The waterproof, high-torque 2270 servo is the perfect upgrade for 1/10 scale vehicles. With 236 oz-in of torque on tap and full metal gears, the 2270 servo provides a significant performance boost over the standard 2075 servo line-up.

Features

Waterproof sealed plastic case with O-Ring
Full ball bearings
Metal Gears

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Specifications

Torque(6.0V): 17kg-cm (236oz/in)
Speed: 0.175 sec (6v)
Operating Voltage: 6.0v
Bearing Type: Ball
Gear Type: Metal
Size: 55x44.5x20mm (2.16x1.75x0.78")

Included items

Description	QTY
High-Torque Digital Metal Gear Servo	1

Specifications

Servo

Size Conventionally sized servo names: Standard
Gear Material: Metal
Waterproof Casing: Yes
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 17
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.175
Signal Type: Digital
Drive Motor Type: Brushed
Case Material: Plastic
Rotational Degrees: 120° (Normal)
