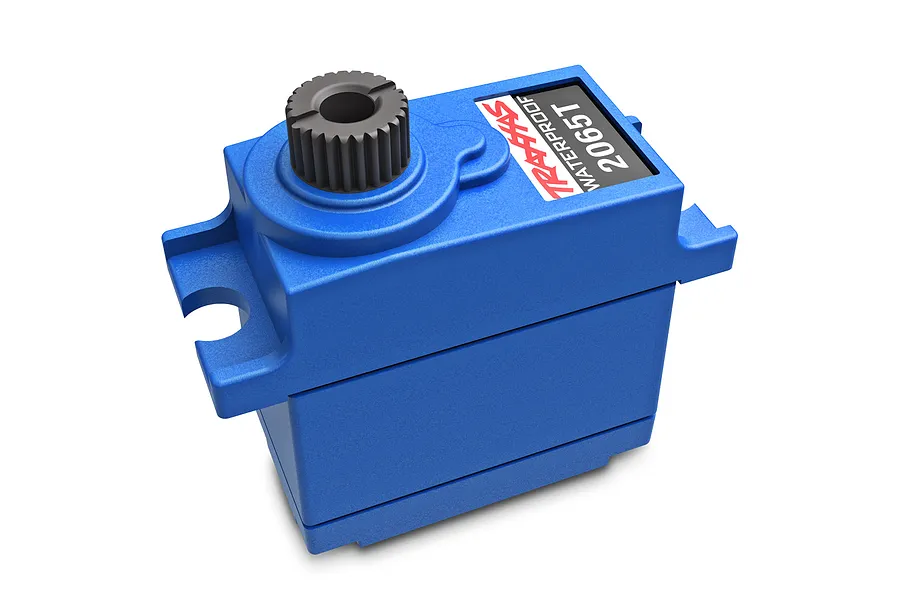

Traxxas Blue Sub Micro 2.5kg Waterproof Servo

Videos

Traxxas Blue Sub Micro 2.5kg Waterproof Servo

Brand: Traxxas | SKU: 2065T

1 in stock

write a review

$86.15

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Loading compatibility information...

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Experience unmatched responsiveness and pinpoint steering control with the 2065T waterproof sub-micro servo. Featuring a robust metal main gear, this miniature powerhouse shrugs off wear and tear while delivering precise actuation for even the most demanding manoeuvres.

The 2065T's exceptional torque and waterproof design ensure reliable performance in any environment. Trust this servo to deliver the precision and confidence you need to push your RC vehicle to its limits.

Features

Metal main gear for additional strength
Micro sizing makes this servo perfect for tight installation areas

Stand out with the unique Traxxas blue colouring
Genuine Traxxas part

Video

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Servo Dimensions

Total Height (A) = 27 mm
Body Width (B) = 22.8 mm
Below Mount (C) = 14.5 mm
Above Mount (D) = 12.5 mm
Total Length (E) = 29.7 mm
Total Width (F) = 12.8 mm

Specifications

Torque(6V): 2.5 kg-cm
Speed: 0.20 sec (6V)
Operating Voltage: 6V
Weight: N/A

Bearing Type: Ball Bearing
Motor Type: Brushed
Operating Temperature: N/A
Refresh Rate: N/A
Size: Sub Micro

Included items

Description	QTY
Traxxas Blue Sub Micro 2.5kg Waterproof Servo	1

Specifications

Servo

Total Length: 29.7mm
Total Width: 12.8mm
Bottom to Under Mount: 14.5mm
Top to Under Mount: 12.5mm
Total Height: 27mm
Body Length: 22.8mm
Rotational Degrees: 120° (Normal)
Drive Motor Type: Brushed
Signal Type: Digital
Case Material: Plastic
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 2.5
Gear Material: Plastic & Metal
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.20
Input Voltage Range: 6VV
Size Conventionally sized servo names: Sub Micro
