Kyosho Optima Mid RC Buggy: A Fusion of Nostalgia and Modern Engineering in a High-Performance Buggy!
  • Perfect for intermediate and up kit builders
  • Compatible with modern day brushless electronics
  • Race Spec Design
  • Compatible with a wide range of OEM and aftermarket upgrade parts
Add to Wishlist
Save Time & Add These Now
Complete your setup with these required items.
LiPo Safe Charging Bag
LiPo Safe Charging Bag
Battery
Battery
Batteries for Controller
Batteries for Controller

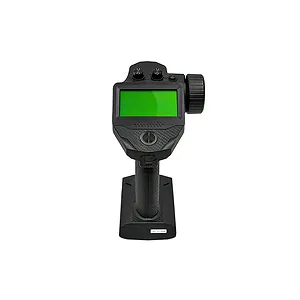

Transmitter
Transmitter
Low Profile Servo
Low Profile Servo
Body Shell Reamers
Body Shell Reamers
Curved Scissors
Curved Scissors
Shop replacement & upgrade parts for this model
Shop Parts
Description
Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

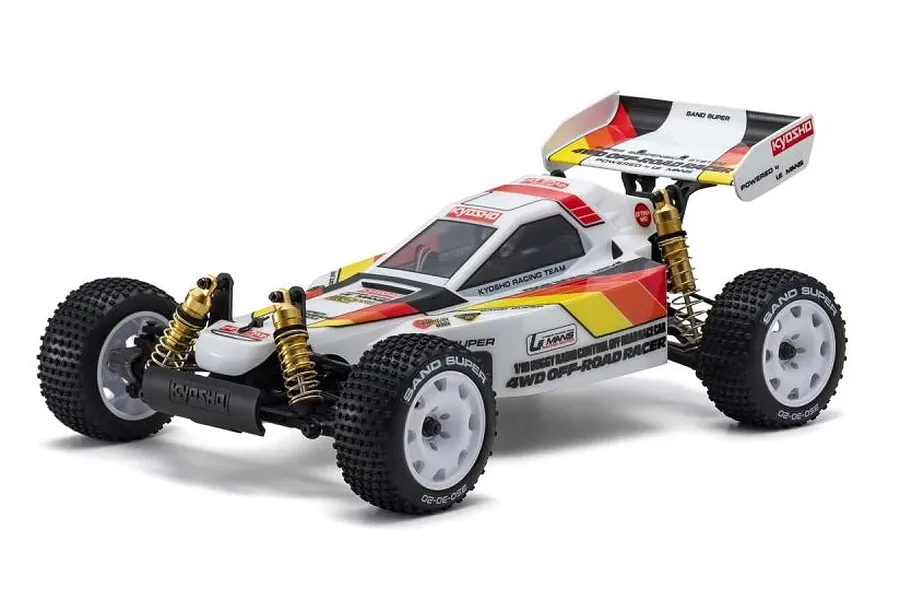

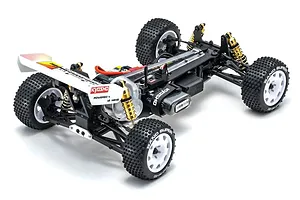

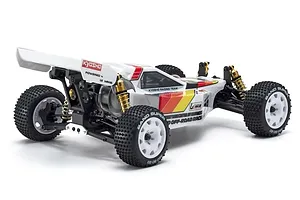

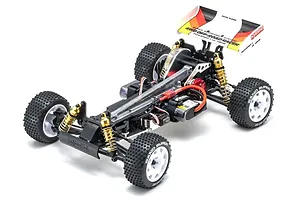

The Kyosho Optima Mid is a triumphant return of a true RC legend. This reimagined icon captures the spirit of the original Optima Mid, a buggy that made a significant impact on the RC racing scene in 1987, while incorporating modern technology and performance enhancements for today's enthusiasts. The Optima Mid retains its classic design and innovative features, but with upgraded materials and components throughout.

The Optima Mid features a durable and lightweight 6061T6 aluminium alloy main chassis, providing exceptional strength and rigidity. The mid-motor position and undercarriage layout, which became the foundation for modern racing buggies, deliver exceptional handling and balance. The 4WD belt drive system now includes an adjustable belt tensioner, improving driving efficiency and reducing power loss. The moulded resin belt cover offers better protection from dirt and dust compared to the original vacuum-formed part.

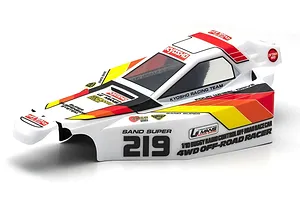

The Optima Mid also features a 48-pitch spur gear with a slipper clutch for smooth and reliable power transfer, as well as FRP front and rear shock stays and a countersunk main chassis for improved durability. The body retains the classic Optima Mid design, complete with decals that recreate the original packaging and a masking sheet for easy painting. Whether you're a seasoned racer who remembers the magic of the original Optima Mid or a newcomer eager to experience a classic design with modern performance, the Kyosho Optima Mid is a must-have.

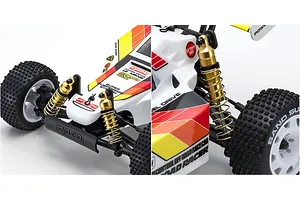

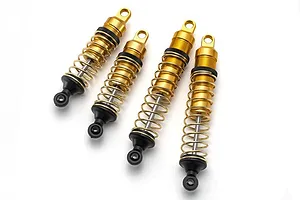

Gold Anodised Shocks

The aluminium oil shocks retain the classic look while featuring an updated dial adjustment for precise chassis height control and refined damping performance.

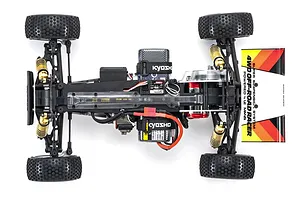

Mid Ship Motor Mount

The basic design follows the 1987 Optima Mid. As the name suggests, the layout allows for the mid-ship motor mount. Driving performance is optimised by centrally locating heavy components on the chassis.

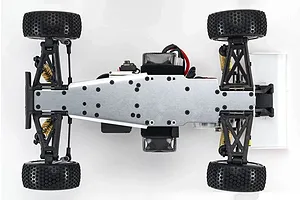

6061-T6 Main Chassis

The 6061-T6 aluminium alloy main chassis achieves an excellent balance between rigidity and crash resistance. Incorporating hex screws with countersunk holes for a flat underside of the chassis.

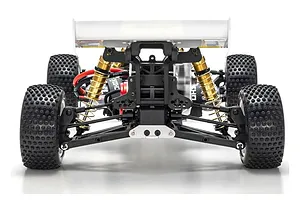

Front and Rear FRP Shock Stays

The front and rear shock stays have been updated from the original aluminium to FRP, similar to the Turbo Optima Mid-specs.

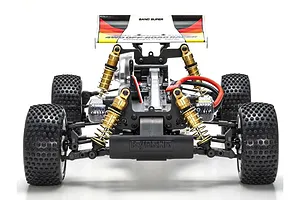

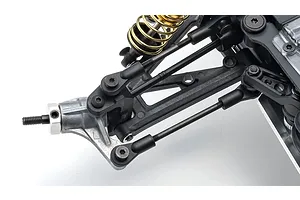

Stronger Front End

Stabiliser end mounting holes have been added to the front suspension arms. The quality of the material has been optimised for increased strength and driving stability.

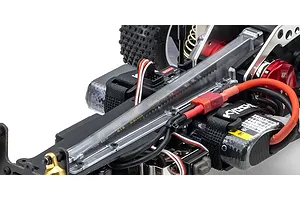

Clear Plastic Belt Cover

The belt cover has been updated from the previous vacuum-formed part to a moulded resin part that effectively protects the drive belt from dirt and dust. The new belt cover is easier to assemble and provides more complete protection from dust.

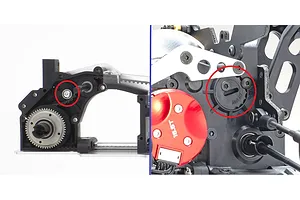

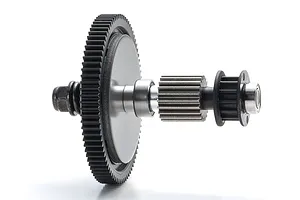

48dp/0.5Mod Gearing

 The Optima Mid's drivetrain features a 48-pitch spur gear and a slipper clutch for enhanced performance and durability. The slipper clutch protects the gears from shock loads, ensuring smooth operation and extending the life of the drivetrain.

Learn How to Paint an RC Body Shell

Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.

Features
  • 1/10 scale replica of the Optima Mid 4WD buggy, updated for modern R/C technology
  • Belt-type 4WD system for excellent drive efficiency and stability on various surfaces
  • Compatible with 48-pitch pinion and 82T spur gear, with optional settings for 78T/80T spur gears
  • Reinforced slipper clutch supports powerful brushless motors and allows for adjustable settings
  • Battery holder accommodates various battery types and includes a hook-and-loop fastener

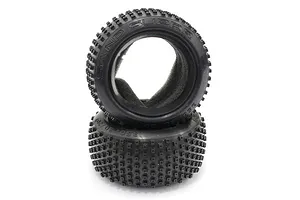

  • New wheels with the original Optima Mid design and Turbo Optima tyres for exceptional grip
  • Reinforced nylon rear wing with three mounting angles for customisation
  • Blister packaging replicates the original style for a nostalgic touch
  • Wide range of optional parts available for tuning and upgrades
  • Genuine Kyosho Product
Specifications
  • Length: 375mm (14.7")
  • Width: 244mm (9.60")
  • Height: 142mm (5.59")
  • Wheelbase: 255mm (10")
  • Weight: 1,600g (3.52 lbs)
  • Chassis: Buggy
  • Drivetrain: 4WD
  • Suspension: Oil Filled Coil Over Shock Absorbers
  • Motor: Not included
  • ESC: Not included
Included Items
  • 1x Kyosho Optima Mid Kit
  • Assorted Tools
  • Instruction Manual
Required Items
  • 1x Compatible 7.4V LiPo or 7.2V NiMH Battery
  • 1x Compatible Charger
  • 1x Compatible Servo
  • 1x Compatible ESC
  • 1x Compatible 540 Sized Motor
  • 1x 2+ Channel Transmitter & Receiver
  • Polycarbonate Safe Paint
  • AA Batteries For Chosen Transmitter
Videos
Specifications
Factory Specs
Spur Gear
82T 48dp/0.5Mod
Wheel Hex Size
12mm
Pinion Gear
25T 48dp/0.5Mod
Front Differential Oil
3000cSt
Rear Differential Oil
3000cSt
Rear Shock Oil
200cSt
Battery Connector
Not Included
Max LiPo Power
3S (11.1v)
Front Shock Oil
200cSt
RC Car
Skill Level
Intermediate
Completion
Kit
Drivetrain
4WD
Max LiPo Power
3S (11.1v)
On/Off Road
Off Road
Chassis Type
Buggy
Power Source
Electric
Scale
1/10
RC Kit
Suited Motor/ESC Type
Electric
