Tamiya XV-01T Asterion RC Short Course Truck Electric 4WD 1/10 Scale Kit

Tamiya XV-01T Asterion RC Short Course Truck Electric 4WD 1/10 Scale Kit

Tamiya XV-01T Asterion RC Short Course Truck Electric 4WD 1/10 Scale Kit

Brand: Tamiya | MPN: 58552
discontinued
Description
Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

Enjoy driving in the dirt!

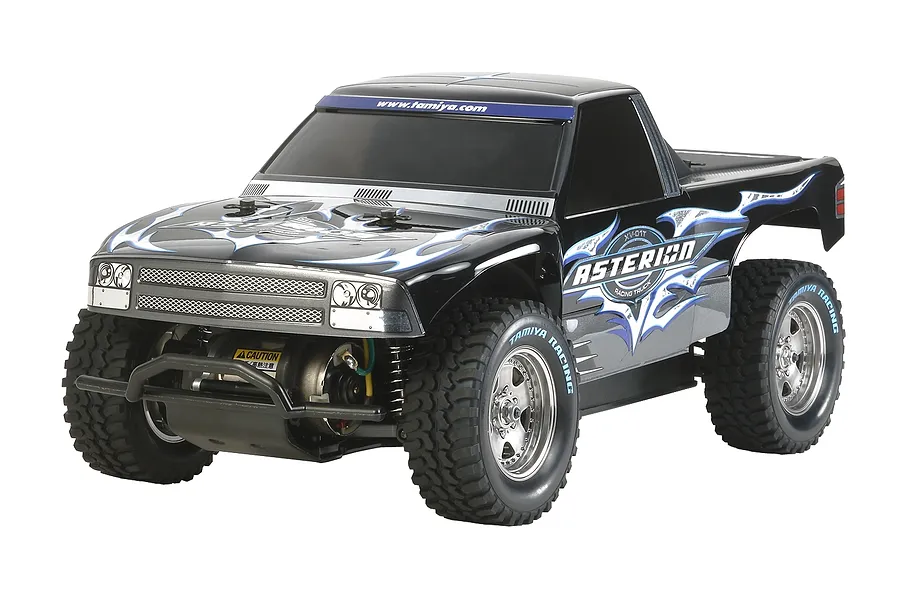

This is a 1/10 scale R/C assembly kit of a racing truck, the mainstay of US off-road racing. The name 'Asterion' derives from a heavenly dog, who is led by the hunter Bootes in a constellation in the northern sky. The short-bumpered form gives the model a racy feeling, and the metallic stickers add embellishment to the black body. The chrome-plated wheels and off-road tires add to the splendid experience of driving this high-performance truck.

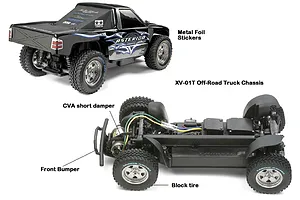

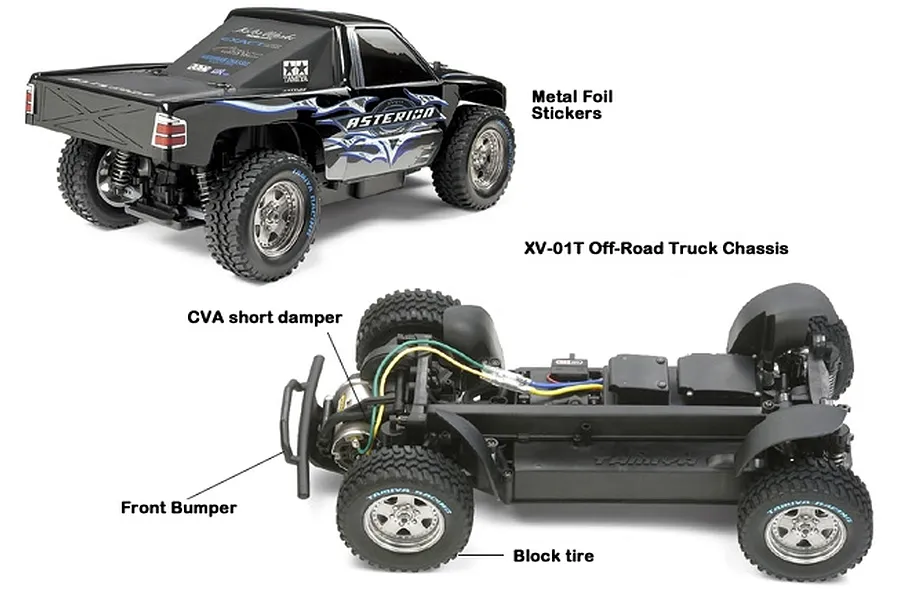

Short-bumpered body and large-diameter tires make for fun driving. The R/C mechanism, battery pack, and drive belt are protected by a dust-proofed frame and dedicated bumper.

Features

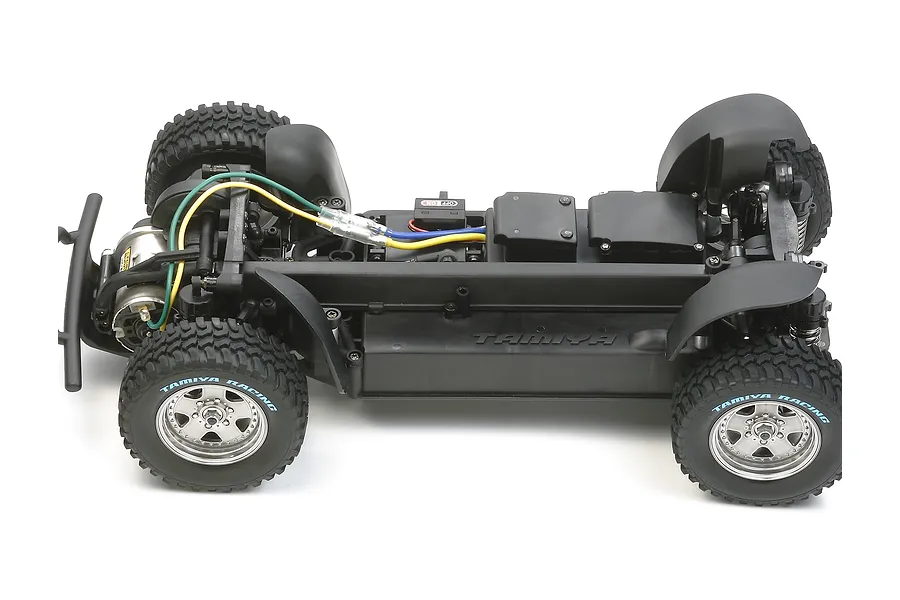

  • The XV-01 chassis offers exciting R/C driving action on both on-road and dirt track surfaces.
  • Front-motor, belt-driven 4WD layout with the gearboxes, drive belt, battery, and R/C unit areas protected by covers against dirt and debris.
  • Holes in the bottom of the chassis further help remove any debris which manages to get onboard to ensure unhindered off-road performance.
  • Detachable wheel well liners help prevent mud and gravel intrusion.
  • Gear differential units enable customization with different viscosities of differential oils.
Required Items
  • Steering servo
  • Radio
  • Battery
  • Charger
  • Paint
  • Tools
Note

This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Specifications
Length
425mm
Width
195mm
Height
159mm
Wheelbase
255mm
Monocoque Chassis Frame
Belt-Driven 4WD
F/R Gear Differential Units
3-Piece Steering Tie-Rod
4-Wheel Double Wishbone Suspension
CVA Shock Units
Gear Ratio 8.04
1 (when used with kit-standard 68T spur and 22T pinion gears)
Full Ball Bearings
Type 540 Motor

RC Car
Scale
1/10
Max LiPo Power
2S (7.4v)
Completion
Kit
Skill Level
Intermediate
Power Source
Electric Brushed
Chassis Type
Truck
On/Off Road
Off Road
Drivetrain
4WD
Factory Specs
