Tamiya GF-01 RC Dump Truck Electric 4WD 1/24 Scale Kit

  • 1/24
  • 4WD
  • Kit
  • Brushed

Part no. 58622

DiscontinuedNo reviews yet
1 / 8
1 / 8

Videos

This product has been discontinued.

Contact us

Videos

Overview

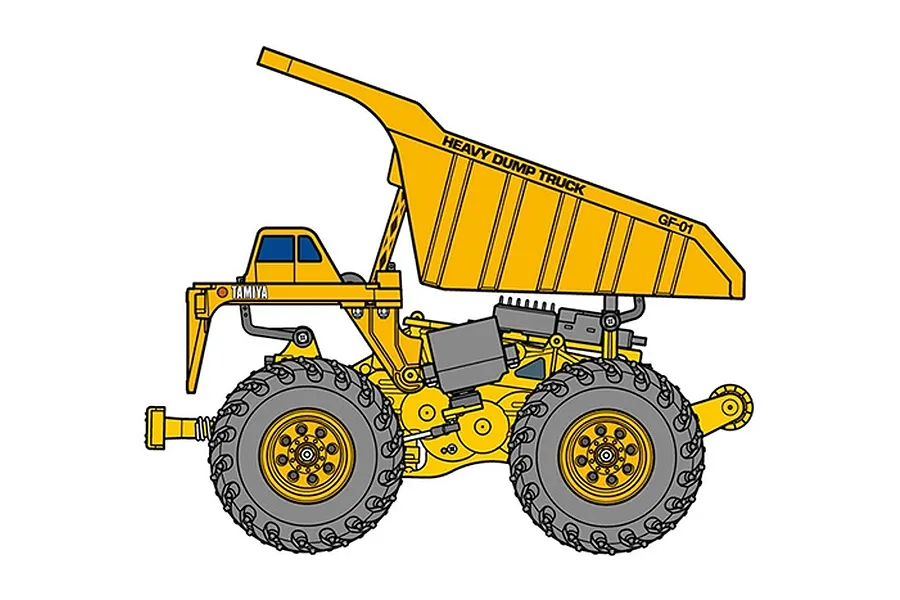

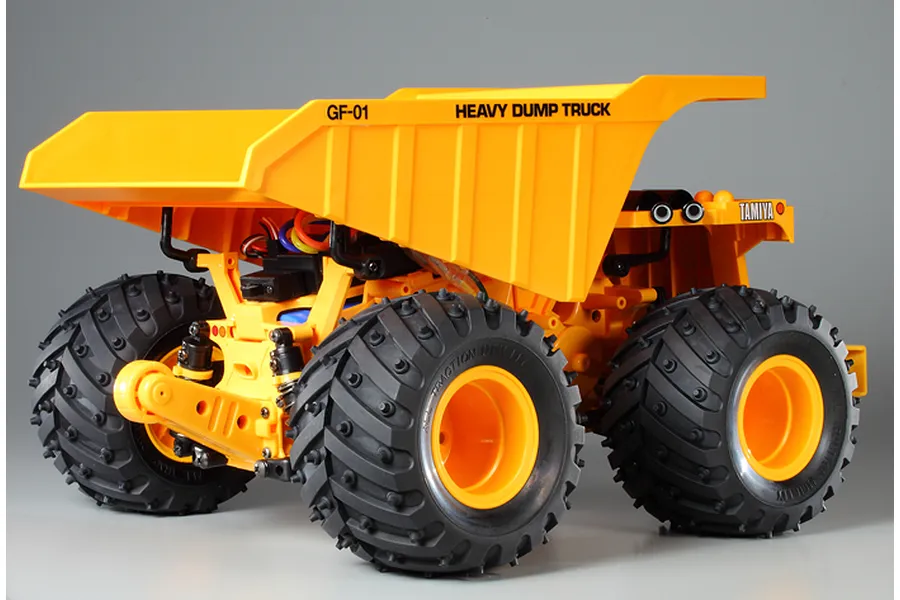

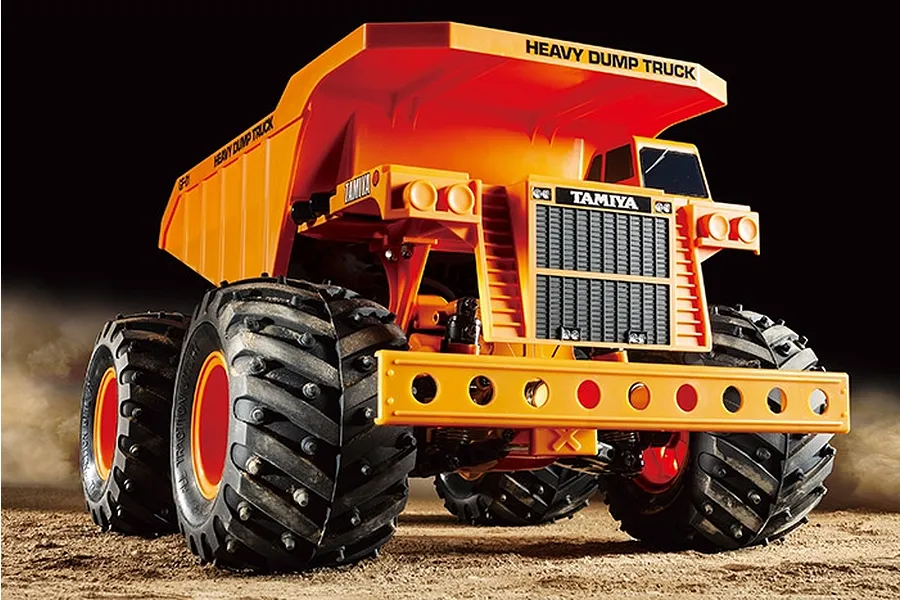

Dump trucks earn their living in some of the toughest workplaces around: large-scale construction sites, mines and quarries to name but a few. The largest of them are known as "off-highway trucks" which cannot be driven on public roads; factory built, they are disassembled and component parts such as the chassis, cab, fenders, axles and rear bed are transported via trailer to their employer, where they are re-assembled on site. These giant vehicles can reach the height of 2-storey buildings, with tires exceeding 4 meters in diameter, engines generating over 3,500hp, and an ability to carry loads topping 300 tons. Some can even be controlled remotely for use in dangerous environments. Now, you can feel the power scaled down into realistic 1/24, with the addition of this exciting new R/C model assembly kit, with realistic yellow ABS resin molded cab and rear bed parts. The model runs on the gear-driven 4WD of the GF-01 chassis.

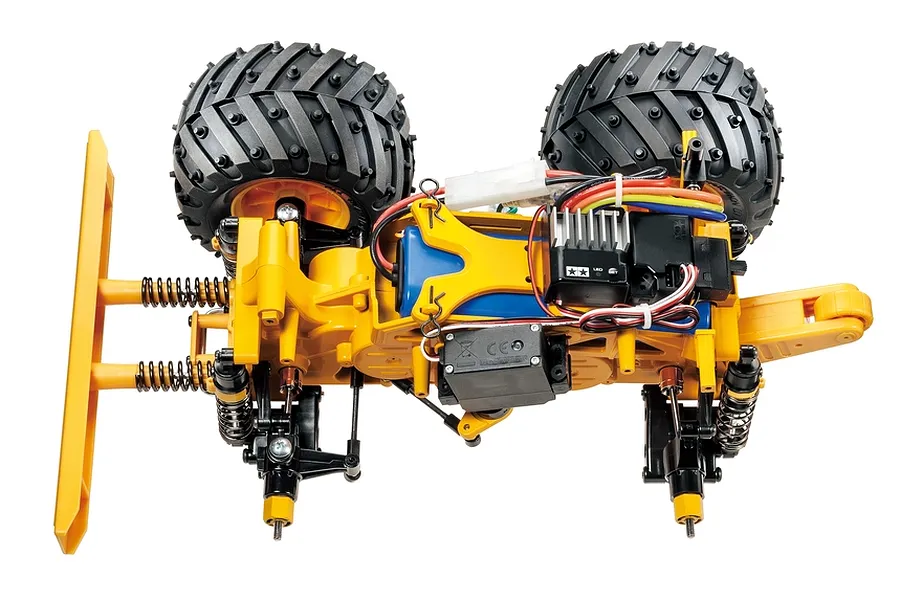

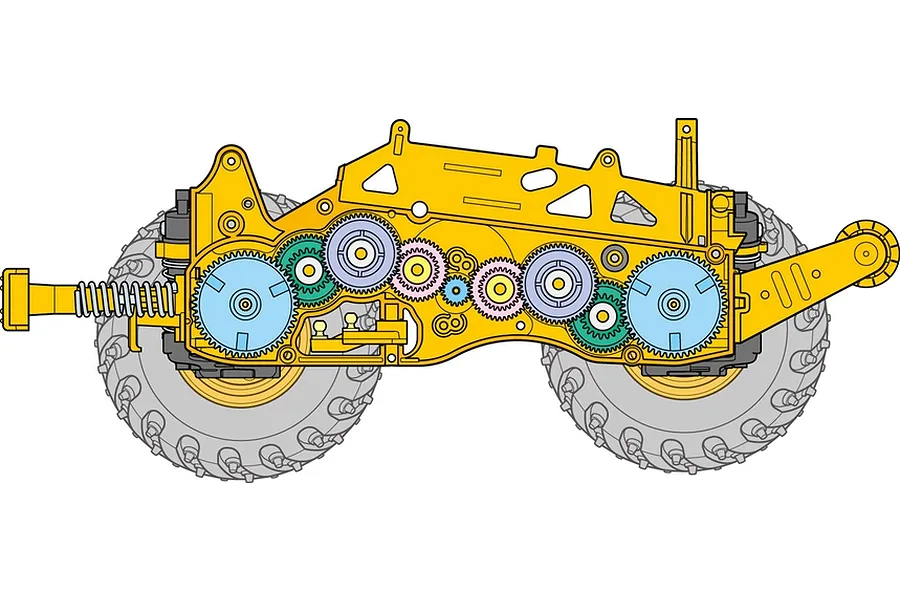

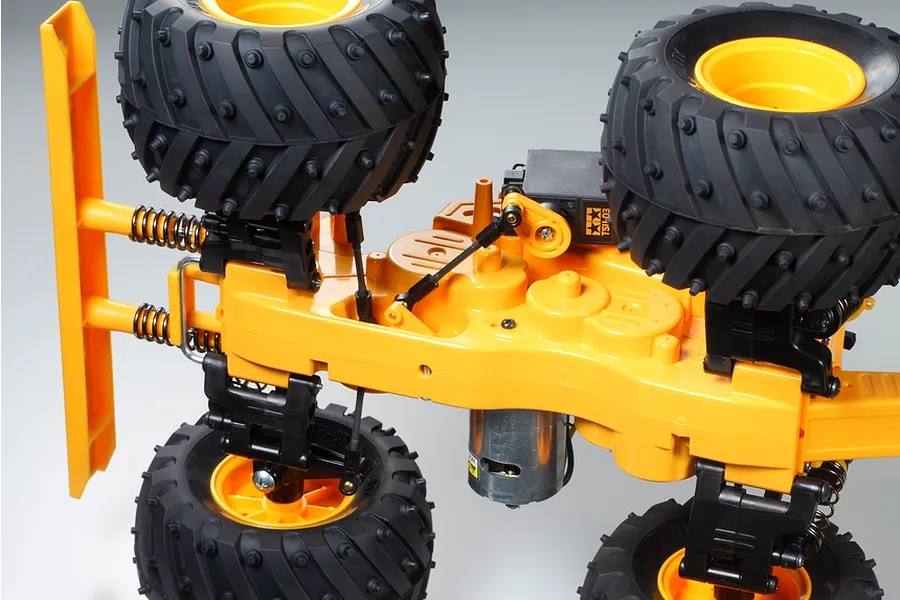

This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. It utilizes a 'square' setup with similar tread and wheelbase lengths. Sealed gearbox is integrated into the frame and protects from dust and debris, while the built-in front and rear differential gears provide smooth cornering. This is reinforced by 4-wheel double wishbone suspension and friction dampers plus a 2-piece tie rod steering setup with the servo on the left for excellent response. Furthermore, it has wheels molded in yellow to match the chassis, fitted with big 115mm diameter tires, in addition to a rear support bar with roller to prevent the model from flipping.

Note

It is not advisable to put objects in the rear bed, or drive the model with the bed elevated. The bed is not remote controlled. Camber (the angle of the tops of the tires from vertical when viewed from front or behind) is non-adjustable. Caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis.

Features

  • Chassis: GF-01 lightweight monocoque resin with wheelie bar to prevent flipping over backward during wheelies
  • Drive: 4 wheel, dogbone driveline
  • Motor: Tamiya Sport Tuned RS-540 brushed, center mounted
  • Electronic Speed Control: TBLE-02
  • Differentials: Bevel gear type
  • Gearboxes: Sealed
  • Cab and Rear Bed: Injection molded resin; bed may be displayed in flat or raised position by changing the position of the two stays and snap pins in the body mounts

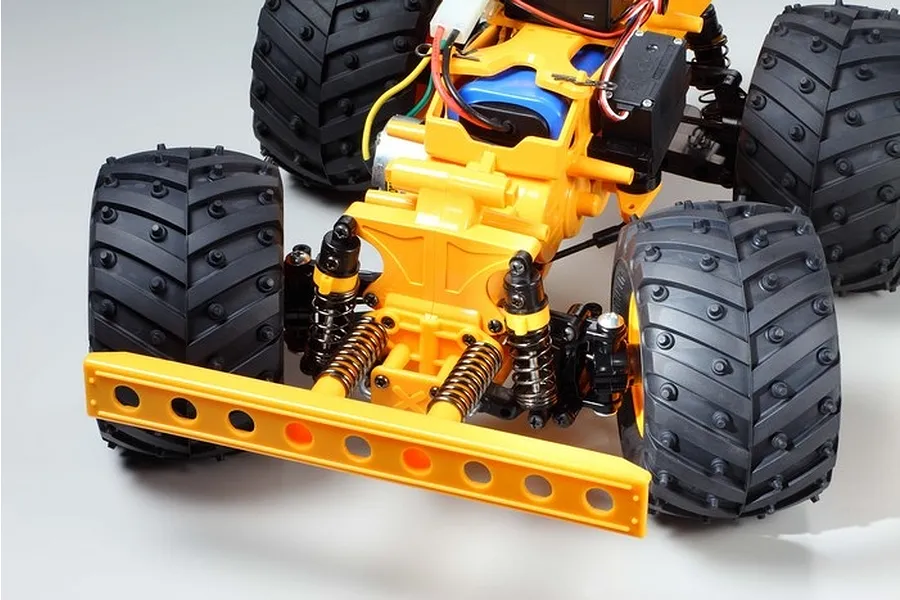

  • Front Bumper: Spring loaded
  • Shocks: Plastic body friction, not oil-filled
  • Suspension: Four wheel double wishbone
  • Tires: Rubber, lug and pin spike 2.5" (65mm) wide, 4.5" (115mm) diameter
  • Wheels: Orange plastic 1.9" (49mm) diameter, 2.3" (58.5mm) wide 12mm hex
  • Steering: Bell crank type
  • Camber: Non-adjustable
  • Steering Tie Rods: Adjustable

You'll need

  • Steering servo
  • Remote controller
  • Battery
  • Charger
  • Tools

Specifications

WeightComing Soon
Wheel Base174mm
Ground ClearanceComing Soon
Drivetrain4WD

Dimensions

Length350mm
Width270mm
Height210mm

RC Car

Scale1/24
Power SourceElectric Brushed
Drivetrain4WD
Chassis TypeTruck
CompletionKit
On/Off RoadOff Road
Skill LevelIntermediate
Max LiPo Power2S (7.4v)
