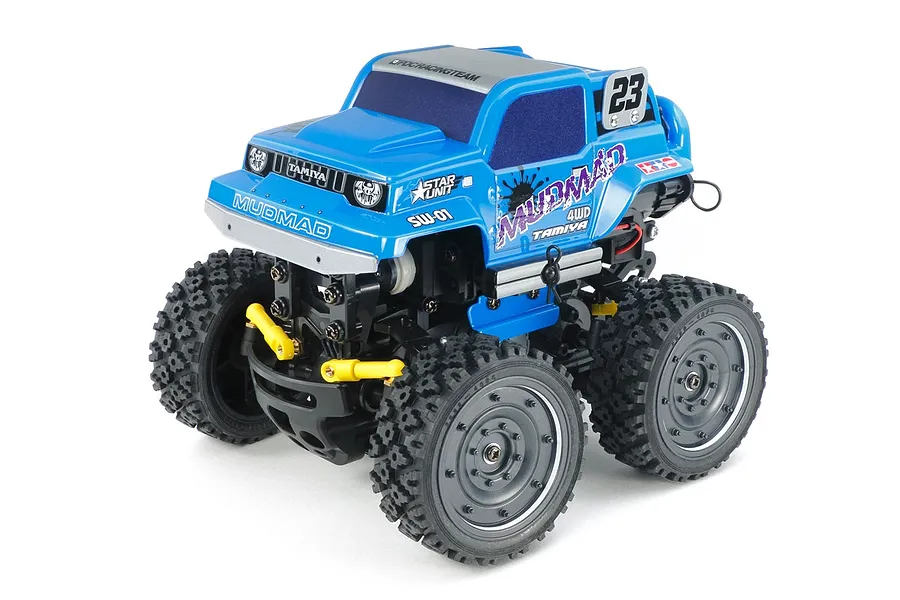

Tamiya SW-01 Mudmad RC Monster Truck Electric 4WD 1/24 Scale Kit - Blue

  • 1/24
  • 4WD
  • Kit
  • Brushed

Part no. 57412

Sold outNo reviews yet
1 / 9
1 / 9

$142.59

or 4 fortnightly payments of $35.65 with afterpay or PayPal, or zip

Tamiya SW-01 MudMad: compact 1/24 scale 4WD monster truck kit with lean-steering body and wheelie-popping Type 370 motor power.

  • Super-compact 1/24 scale with wheelie capability under acceleration
  • Body leans into turns for remarkably tight turning circles
  • Pre-painted polycarbonate body with magnet-secured attachment
  • Gear-driven 4WD with front and rear differentials
$142.59

Overview

The Tamiya MudMad is the second R/C model assembly kit on the super-compact and fun to drive SW-01 chassis. The body itself is inspired by off-road vehicles and was designed by Takayaki Yamazaki. 190mm long and 150mm wide, the SW-01 is a compact, highly fun 4WD chassis. A Type 370 motor is central in the slim monocoque frame, with gears transmitting its output to the front and rear of the model, where 70mm tires translate it into a powerful drive. The chassis power source is mounted in the top section to allow wild wheelies under acceleration. Strut type 4-wheel independent coil sprung suspension utilizes single piece upper arms to link left and right wheel steering motion, helping suppress roll during turns, and together with front and rear differentials realize a tight turning circle.

Note

Aftermarket battery note: Battery pack size must be under 66x36x15mm in size.

Compatible with item 51610 RC T301 Battery Case for use with 4 AA batteries if desired.

Features

  • 1/24 scale R/C model assembly kit. Length: 190mm.
  • Lightweight and durable polycarbonate body. Magnet-secured for swift attachment and detachment, and comes pre-painted in PS-3 Light Blue.

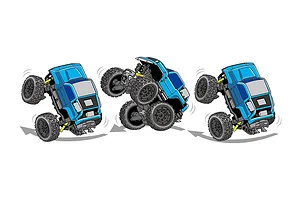

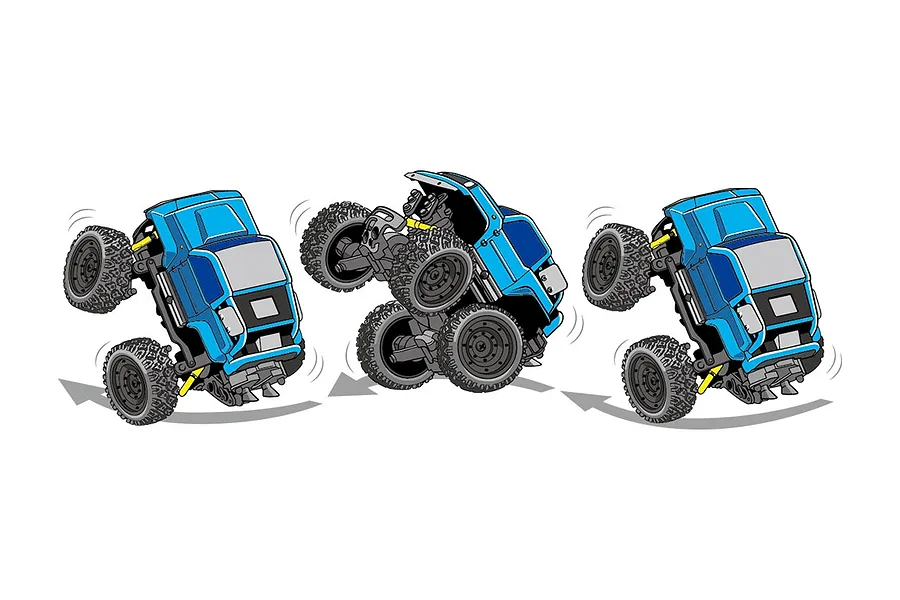

  • The body leans in the direction in which the model steers, achieving remarkably tight turning circles and helping to suppress roll.
  • Strut style suspension.
  • A central Type 370 motor transmits power to the front and rear in a gear-driven 4WD setup.
  • Can be used with standard size servos and R/C equipment despite its compact nature.

In the box

  • 1x Tamiya SW-01 Mudmad RC Monster Truck Electric 4WD 1/24 Scale Kit
  • 1x 370 Size Brushed Motor
  • 1x 1/24 Mudmad Painted Body Shell - Blue

You'll need

  • 2-channel radio
  • Standard size servo
  • 7.2–7.4V battery pack
  • Compatible charger
  • ESC
  • Tools

Highlights

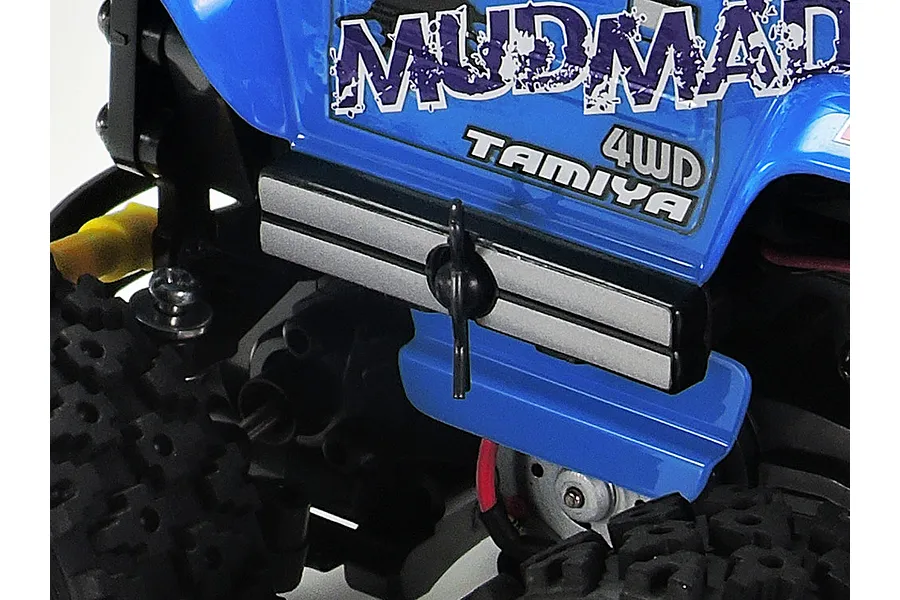

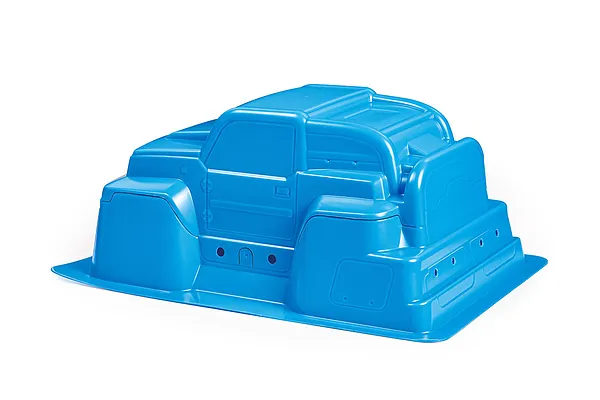

Factory Painted Body Shell

Factory Painted Body Shell

The Mudmad's comically-styled body, designed by Kyosho's Yamasaki, is a perfect match for the compact SW-01 chassis. Pre-painted in light blue with pre-cut wheel arch and body catch sections, it's ready for action right out of the box.

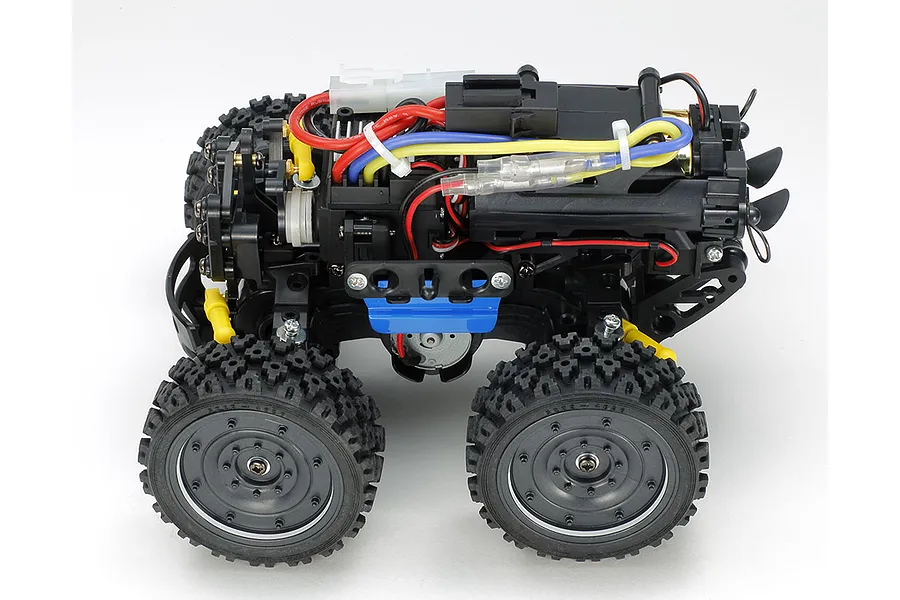

Centrally Mounted Motor

Centrally Mounted Motor

The centrally located 370 size motor powers all four wheels through a gear-driven 4WD system, providing smooth and reliable performance for tackling any terrain.

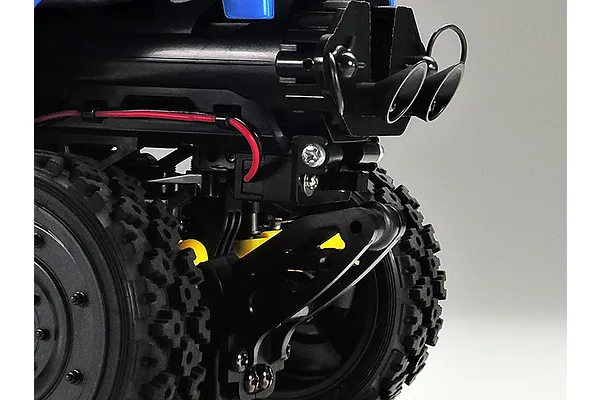

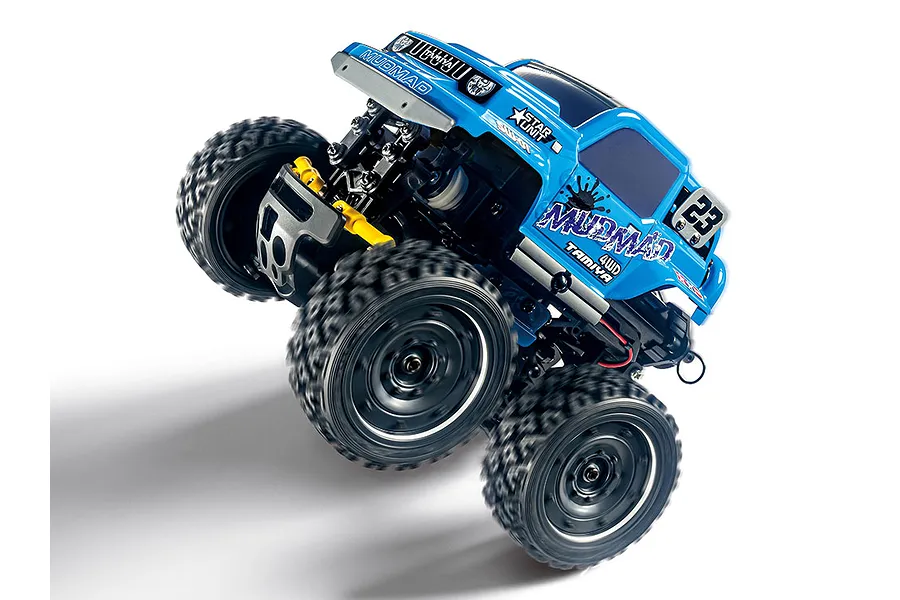

Wheelie Bar

Wheelie Bar

The Mudmad is built for fun and excitement, with a wheelie bar that makes it easy to perform impressive stunts. The realistic exhaust details add a touch of authenticity and enhance the overall visual appeal.

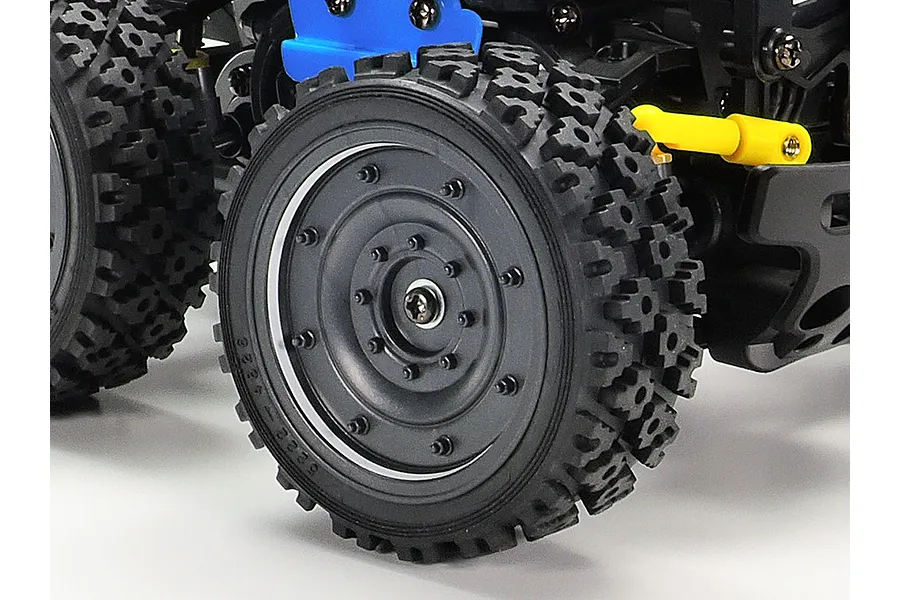

Stylish Wheels

Stylish Wheels

The Mudmad's wheels are designed for both style and performance. The black dish design adds a touch of classic cool, while the durable construction ensures reliable performance on any terrain.

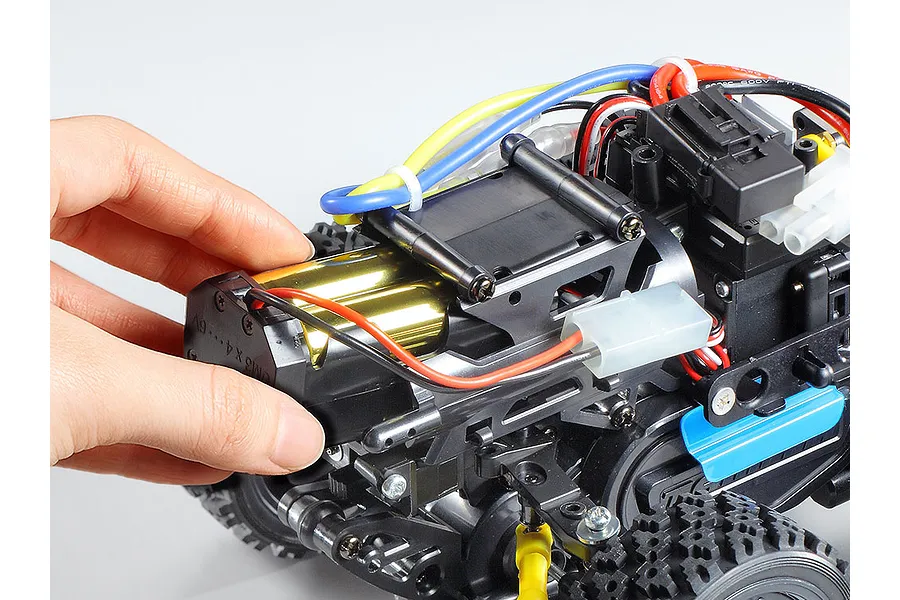

Top Mount Battery

Top Mount Battery

The Mudmad's battery is strategically positioned on top of the chassis to optimize weight distribution for wheelies. This configuration makes it easier to lift the front wheels and perform impressive stunts.

Specifications

Length190mm
ChassisMonocoque Frame
Drivetrain4WD (gear-driven)
SuspensionStrut type 4-wheel independent coil sprung
MotorType 370
Tire diameter70mm

RC Car

Scale1/24
Power SourceElectric Brushed
Drivetrain4WD
Chassis TypeTruck
CompletionKit
On/Off RoadOff Road
Skill LevelBeginner
Max LiPo Power2S (7.4v)

Factory Specs

Battery ConnectorTamiya
