Tamiya 1/24 Volvo A60H Hauler 6x6 Electric Off Road RC Tip Truck Kit
- 1/24
- Kit
- Brushed
Part no. 58676
Videos
1/24 scale RC kit of the Volvo A60H hauler on the 6WD G6-01 chassis. Pre-painted yellow cab with manually operated tipping bed.
- 1/24 scale RC kit of the Volvo A60H hauler
- 6-wheel drive G6-01 chassis with triple differentials and double-wishbone suspension
- Pre-painted yellow cab; bed moves manually between flat and raised positions
- Convertible to 4-wheel steering with separately sold 4WS transmitter
Checking delivery dates…
Free 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
In stock now: similar
Ready to send today if you order before 1pm.
- Huina 1598 RC Dump Truck Electric 4WD 1/14 Scale RTR - Orange
Now $529.99
was $599.98Save $69 - Team Associated RC10 American Custom RC Semi Truck Electric 6WD 1/10 Scale Kit
Now $549.99
was $601.46Save $51
Videos
Recommended products
Overview

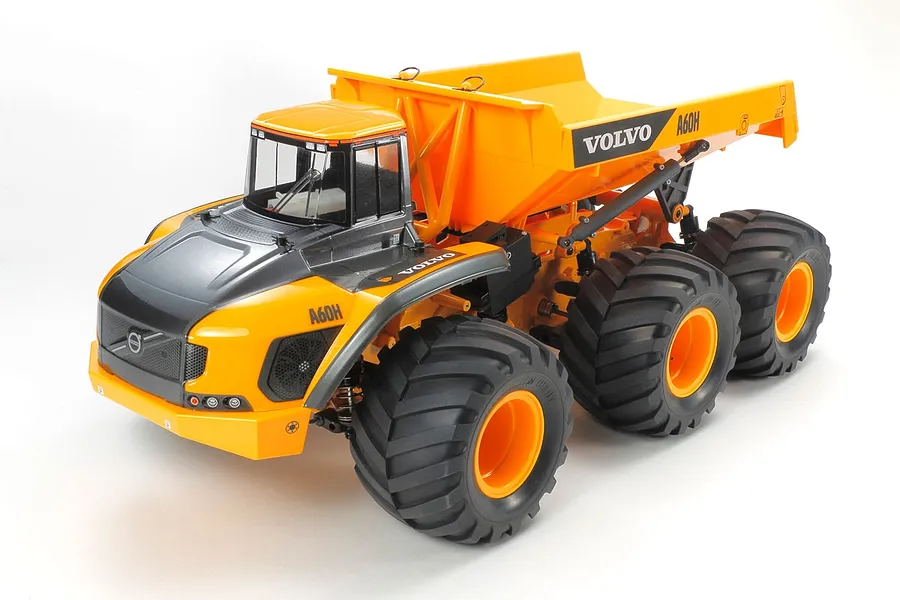

This Tamiya R/C assembly kit recreates Volvo's A60H hauler. The actual vehicle is a revolutionary design offering exceptional flexibility and mobility as well as the sheer strength required to haul loads in quarries and similarly grueling workplaces.

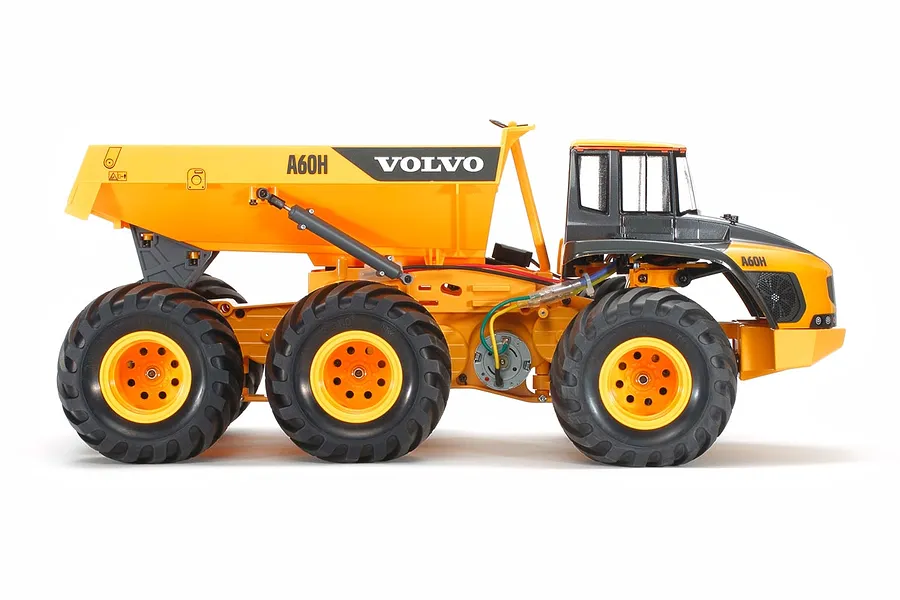

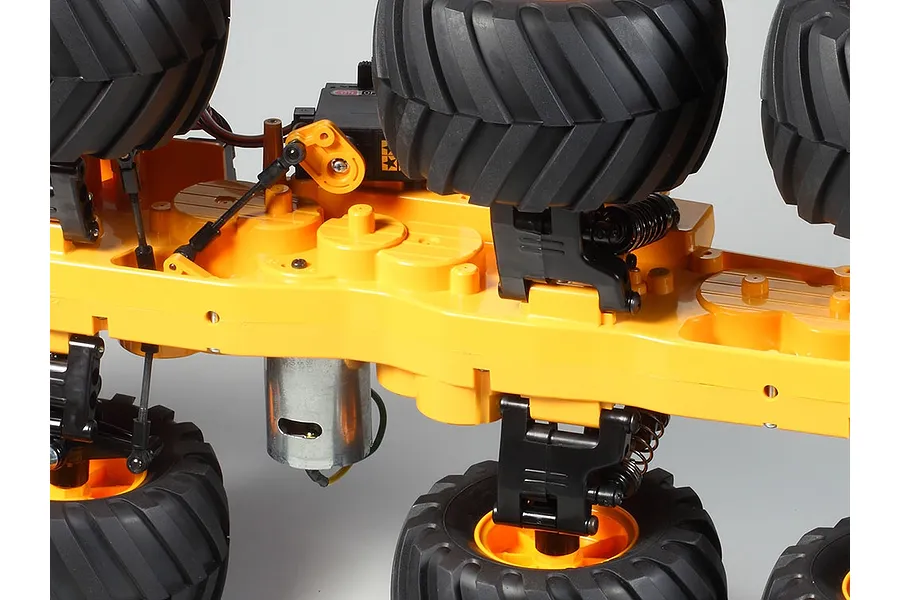

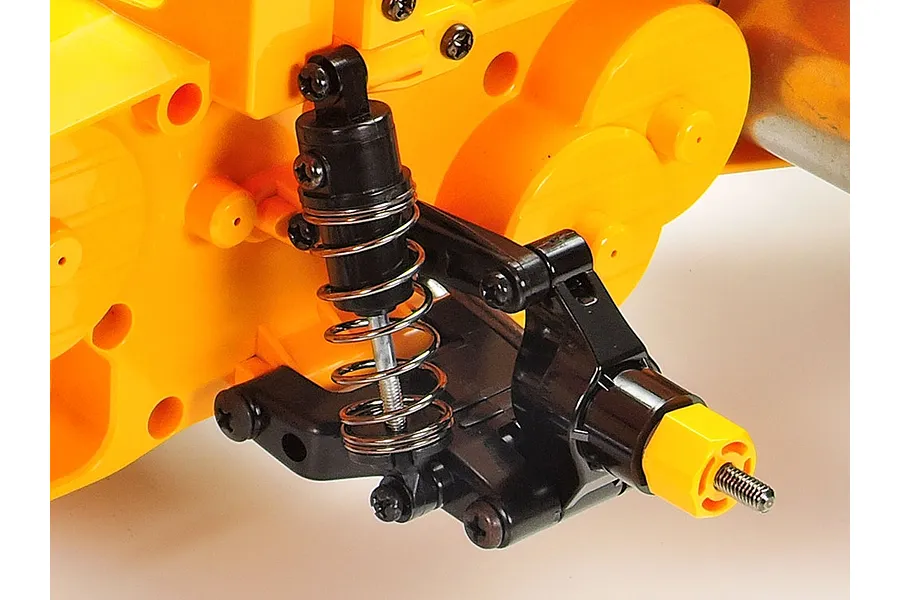

The G6-01 chassis is based around a tough, slimline monocoque frame and offers excellent off-road performance thanks to a 6-wheel drive system. Power is provided by a motor behind the front wheels and transmitted to the front, center, and rear wheels via gears. The sealed gearbox integrates built-in front, center, and rear differential gears to provide smooth cornering. 6-wheel double wishbone suspension is fitted with friction dampers. A 2-piece steering tie-rod setup utilizes the servo on the left for excellent response.
Note
4-wheel steering conversion requires reassembly of the suspension and a separately sold transmitter with 4WS function and compatible R/C equipment.
Features
- 1/24 scale R/C model assembly kit; length: 486mm, width: 270mm, height: 213mm

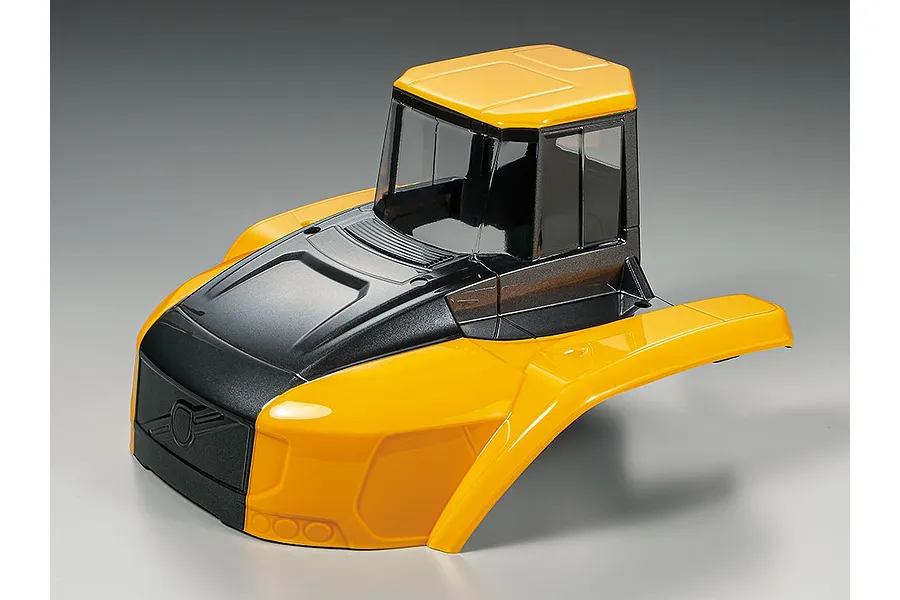

- Polycarbonate cab and molded ABS plastic bed components; cab component is pre-painted in yellow

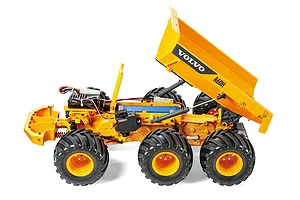

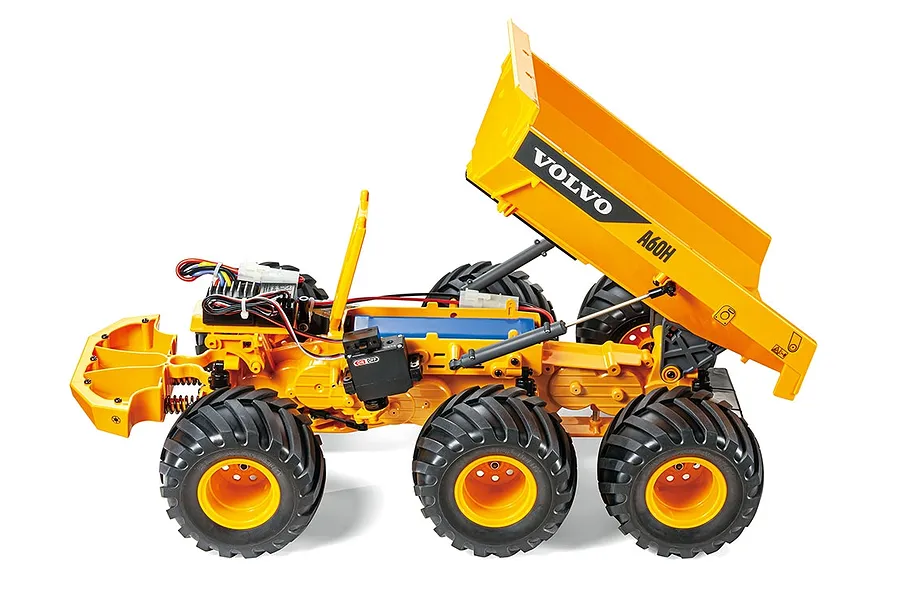

- The bed can be moved manually between flat and raised positions
- Yellow deep-dish wheels paired with 115mm lug-pattern spike tires
- Stickers included to recreate front grille, air inlets, headlights, and logos
- 6WD platform with gear-driven powertrain, triple differentials, double-wishbone suspension, and tough monocoque frame
- Chassis parts molded in yellow
- The G6-01 can be converted to 4-wheel steering with suspension reassembly and a separately sold transmitter with 4WS function and R/C equipment
You'll need
- Steering servo
- Remote controller

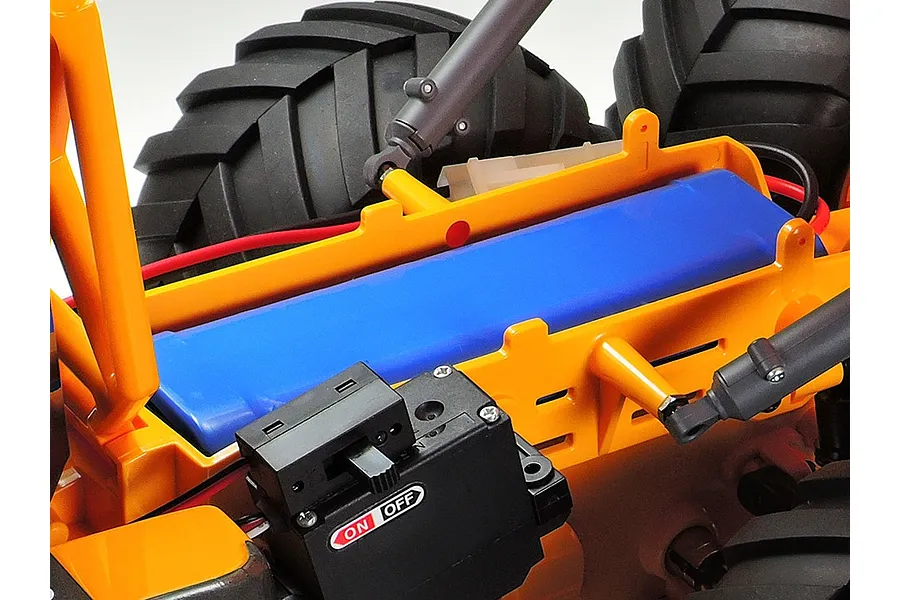

- Battery and charger
- Paint
- Tools
Specifications
| Weight | Coming Soon |
|---|---|
| Wheelbase | Coming Soon |
| Ground Clearance | Coming Soon |
| Drivetrain | 6WD |
| Scale | 1/24 |
Dimensions
| Length | 486mm |
|---|---|
| Width | 270mm |
| Height | 213mm |
RC Car
| Scale | 1/24 |
|---|---|
| Power Source | Electric Brushed |
| Drivetrain | 6WD |
| Chassis Type | Truck |
| Completion | Kit |
| On/Off Road | Off Road |
| Skill Level | Intermediate |
| Max LiPo Power | 2S (7.4v) |
