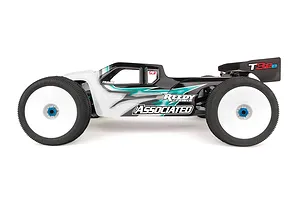

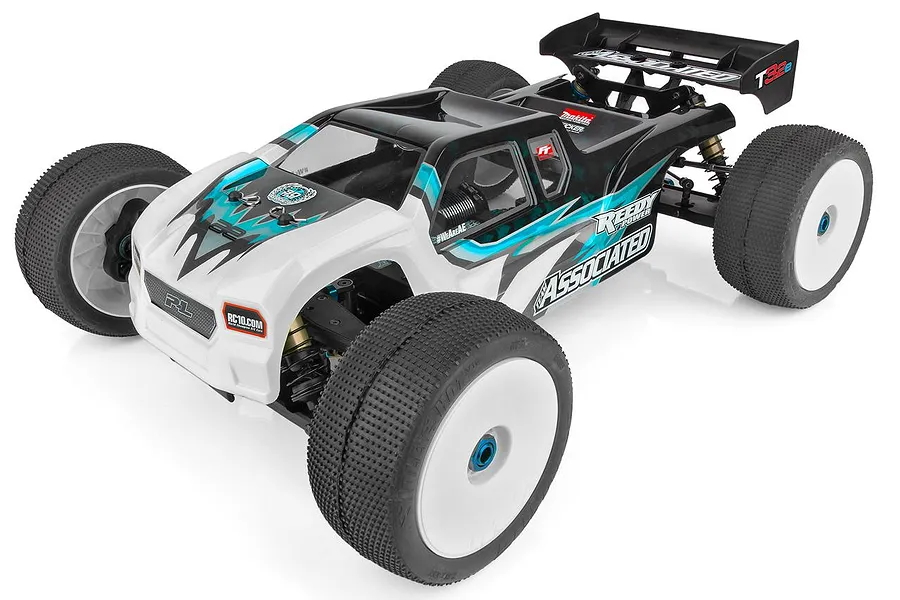

Name: Team Associated RC8T3.2e RC Truck Electric 4WD 1/8 Scale Kit
Brand: Team Associated
SKU: ASS-80944

Overview

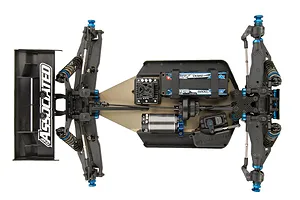

The RC8T3.2e is the latest evolution of Team Associated's 1:8 electric truck, born with race-winning heritage in its DNA. The RC8T3.2e shares many of its new features with its nitro counterpart, the RC8T3.2. The Area 51 engineers increased the length of the new suspension arms to utilize the narrow arm mounts from the RC8B3.2 for increased traction and stability. Bottom-loaded suspension arm inserts provide adjustable flex and increase durability, while keeping the arms free of debris. A new rear shock tower has been developed to work with the new suspension arm geometry. A 3-piece center bulkhead allows for easy access to the center differential. Updated shock caps allow the RC8T3.2e to be run with the included new stiff bladders, optional standard bladders, or as emulsion with no bladders — all with the same cap. The side guards have also been improved using countersunk screws that thread into the chassis from the top.

Note

The body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

New suspension arm design with inserts for flex adjustments
Longer rear suspension arm length with narrow rear arm mounts
Updated rear shock tower for optimized rear suspension geometry
New stiff shock bladder design improves jumping and handling performance
Updated shock cap works for bladder or emulsion style shock setups
Shorter and lower front bumper reduces drag and allows easier access to anti-roll bar screws
I.F.M.A.R. approved rear wing
Updated chassis with chamfered front edges to reduce drag
Side guards are now threaded into the chassis from the top side of the truck
Two-piece sliding motor mount for easy gear mesh adjustment and motor removal
90% parts compatibility with the current generation of RC8B3.2 and RC8T3.2 vehicles
46T ring and 10T pinion gears on front and rear V3 differentials for consistent performance

You'll need

1:8 scale motor
1:8 scale ESC
2- or 3-channel radio transmitter (2.4GHz recommended)
Transmitter batteries
4S LiPo Battery Pack
Steering servo
1:8 scale truck wheels
CA (cyanoacrylate) glue
Paint for polycarbonate body
Thread-locking compound
Tools: needle-nose pliers, hobby knife, reamer or hole punch for making holes in body, ride height gauge

Specifications

Power Source	Electric
Terrain	Off-Road
Body Style	Truck
Scale Size	1:8
Assembly Level	Kit
Wheelbase	376.5mm (14.82in)
Weight	varies
Internal Gear Ratio	4.6:1
Drive	4WD
