Axial SMT10 Monster Jam Grave Digger RC Rock Racer Electric 4WD 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit

Part no. AXI03020

DiscontinuedNo reviews yet
1 / 16
1 / 16

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Overview

Full-scale monster truck tours such as Monster Jam® fill arenas with capacity crowds eager to see world-class drivers compete in racing and freestyle events. The designers at Axial® Racing have used their crawler expertise to create the perfect platform for bashers who want to build their perfect RC scale monster beast.

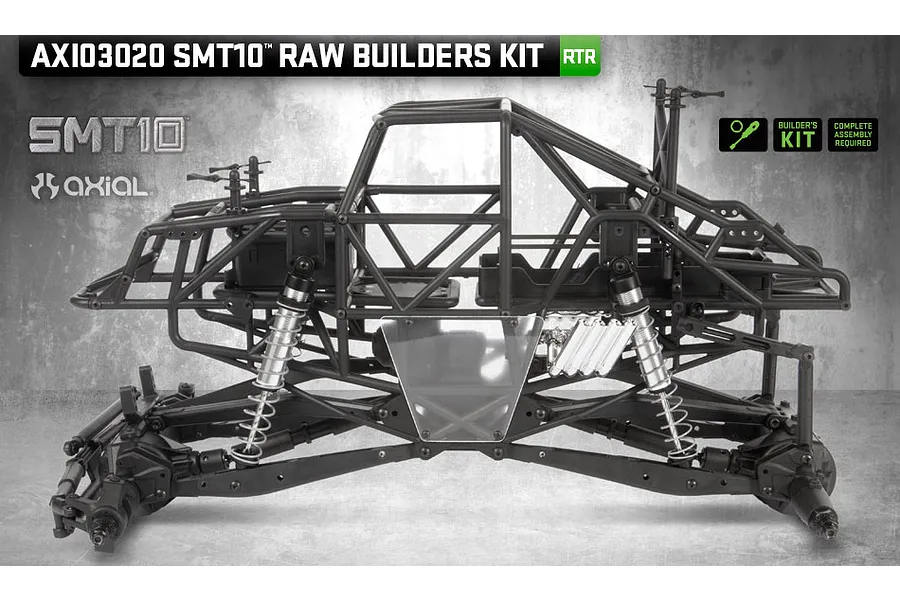

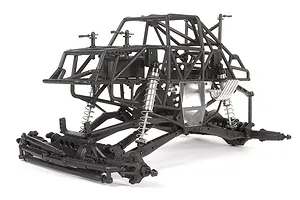

The 1/10 scale Monster Truck RAW Builder's Kit is centred on the SMT10 tube frame 4WD chassis, which was developed for maximum bashing strength and an extremely detailed appearance. It's very similar to those used in full-size monster trucks. That's why the chassis excels at hard-core action over grass, gravel, pavement and asphalt tracks. Start with the Monster Truck RAW Builder's Kit, add your favourite performance electronics and scale body, wheels, and tyres — and put together the powerful monster basher of your dreams!

Features

  • AX10 transmission has more precise tuning and holding power
  • Heavy-duty dual pad slipper system with 32-pitch gearing for high-torque applications
  • 56T Spur / 14T Pinion RTR gearing for 2S
  • Metal motor plate and all-metal internal transmission gears
  • Sealed gear cover

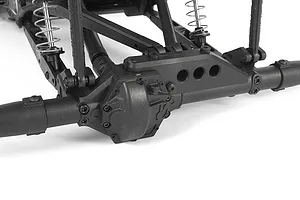

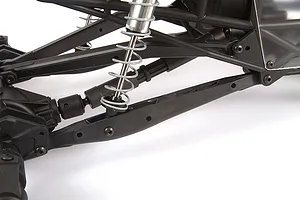

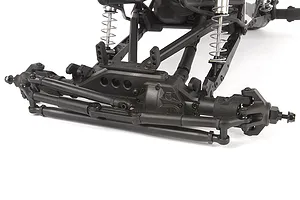

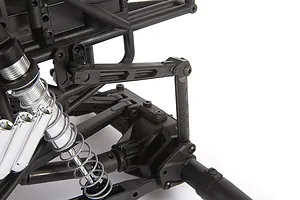

  • Solid axle 4-link suspension is mated to a proven AR60 axle
  • AR60 OCP-Axle is of high composite construction
  • Off-centre pumpkin design
  • Axle tubes reinforced with boxed-in axle truss

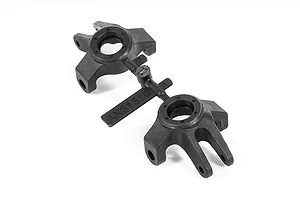

  • Steering knuckles updated for dual shear — also eliminates secondary bolt on plate
  • Differential cover and servo mount updated with new look

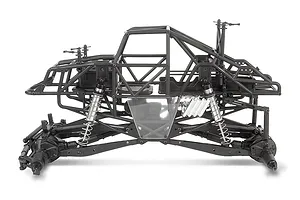

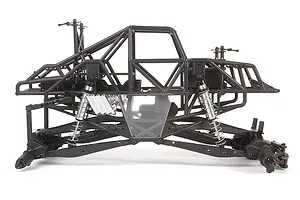

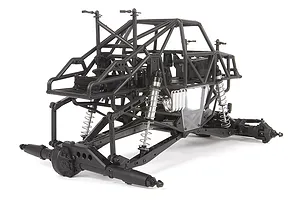

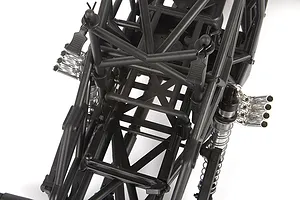

  • Tube frame chassis is designed after the full-scale Monster Jam Trucks for maximum strength and extreme scale looks

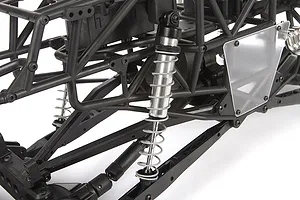

  • Multiple shock mounting positions for additional suspension tuning options
  • Easy access, adjustable battery tray

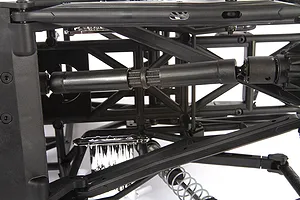

  • WB8 HD driveshafts
  • Strengthened design with large diameter 2x11mm crosspin
  • New centre splined slider floats between each end and reduces flex and fatigue
  • Rear sway bar reduces torque twist and body lean to a minimum during acceleration
  • SMT10 chassis design lets you add an optional sway bar to the front

In the box

  • Axial SMT10 Monster Truck RAW Builder's Kit

You'll need

  • Radio system
  • Motor
  • Electronic Speed Control
  • Wheels and Tyres
  • Battery
  • Battery Charger

Specifications

Length409mm (16.1")
Width269mm (10.6")
Height236mm (9.3")
Weight3.22kg
Wheel Base353mm (13.9")
Drivetrain4WD

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelIntermediate
Chassis TypeTruck
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Pinion Gear14T 32dp/0.8Mod
Spur Gear56T 32dp/0.8Mod
Wheel Hex Size12mm
