Axial

Axial SCX10 III Jeep Wrangler Rubicon JLU RC Rock Crawler Electric 4WD 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit

Part no. AXI03007

DiscontinuedWrite a review
1 / 21
1 / 21

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Overview

The 1/10 scale Axial SCX10 III Jeep JL Wrangler 4WD kit marks the next step forward in scale off-road action. While continuing to incorporate key components that have made SCX10 vehicles successful, the SCX10 III increases chassis realism with details that include a replica V8 engine to house a front-mounted 540 motor, mated to a realistic transmission housing and transfer case. The kit's versatile transmission can be built in several ways, including a third-channel DIG function that locks the rear axle for front wheel drive, or a two-speed transmission for high and low speeds. Portal axles improve performance by increasing ground clearance and reducing torque twist. The kit comes with a clear Jeep Wrangler Unlimited four-door body ready for finishing, with scale details including a roll cage, front hood vents and cowl, windshield wipers, mirrors, door handles, and a detailed interior. New taller and wider, officially licensed Nitto Trail Grappler tires on 3-piece licensed KMC Machete beadlock wheels add scale realism and more grip on dirt, rocks, and all other off-road trails.

Features

  • Build it yourself KIT!

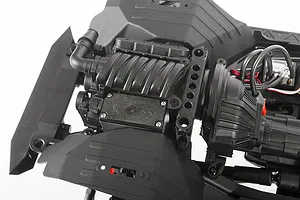

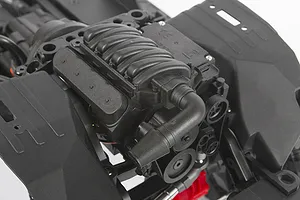

  • Replica V8 engine, transmission housing and transfer case cover and protect the motor while improving scale appearance

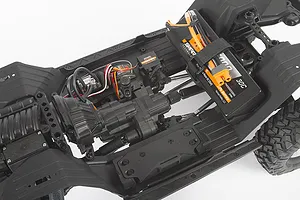

  • Chassis tray accepts full-size, standard LiPo or NiMH batteries, with space on the side rails for running small pack sizes
  • DIG function transmission setup lets you lock the rear axle from the transmitter for front-wheel drive and a tighter turning radius
  • Two-speed transmission setup option also available for high and low speeds

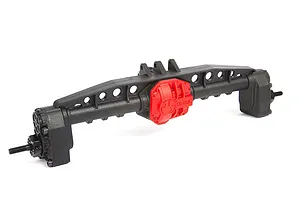

  • Portal axles increase ground clearance and reduce torque twist

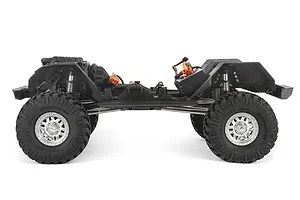

  • Adjustable wheelbase chassis allows each driver to choose the size of their chassis
  • Inner fenders and floor sides hide internal components usually visible from the side of the chassis
  • Licensed KMC Machete 3-piece beadlock wheels provide scale looks and let you remove and replace tyres without gluing
  • Officially licensed Nitto Trail Grappler tires in a new taller and wider size increase ground clearance and grip
  • Fully rebuildable, oil-filled shocks include hard anodized, threaded shock bodies, coilover springs, and an emulsion-style cap with a screw for easier rebuilds

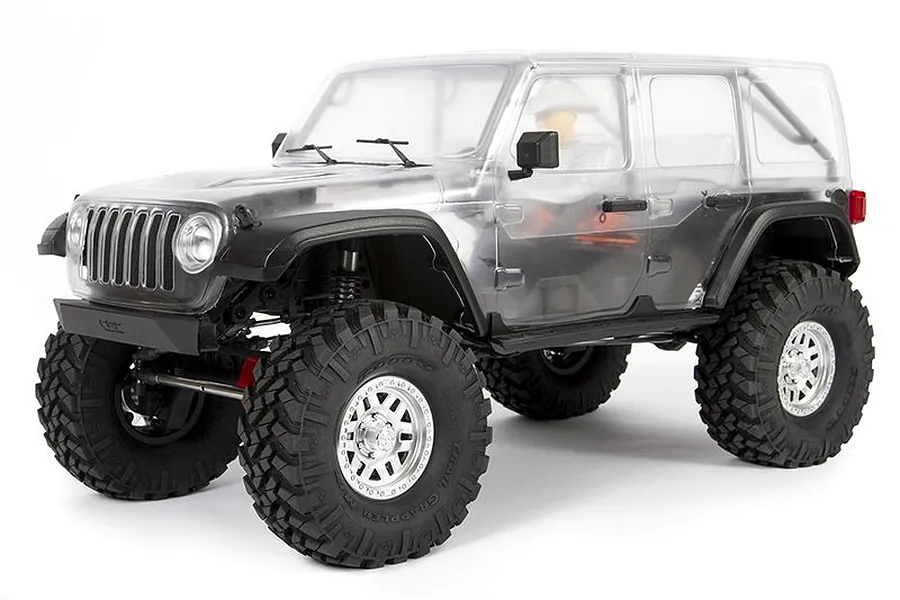

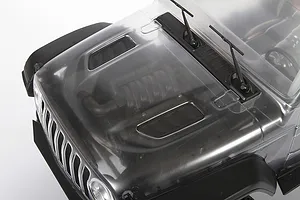

  • Clear scale Jeep Wrangler Unlimited body with detailed interior

You'll need

  • Transmitter
  • Receiver
  • ESC
  • Motor
  • Steering Servo
  • Battery
  • Charger
  • Paint

Specifications

Length485mm (19.12")
Width234mm (9.25")
Height241mm (9.5")
Weight2.9kg (6.5lbs)
Wheelbase312mm (12.3")
Ground Clearance76.2mm (3")
Drivetrain4WD

RC Car

Scale1/10
Max LiPo Power3S (11.1v)
CompletionKit
Skill LevelIntermediate
Power SourceElectric
Chassis TypeRock Crawler
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Pinion Gear14T 32dp/0.8Mod
Spur Gear40T 32dp/0.8Mod
Wheel Hex Size12mm
