Axial SCX10 III Jeep CJ-7 V2 RC Rock Crawler Electric 4WD 1/10 Scale RTR - Red
Axial SCX10 III Jeep CJ-7 V2 RC Rock Crawler Electric 4WD 1/10 Scale RTR - Red
Legendary Axial RC Rock Crawler SCX10 III Jeep CJ-7 V2 Delivers Authentic Scale Details And Reliable Four-Wheel Drive Mechanics.
Officially Licensed Jeep CJ-7 Body With Scale Details
Transmitter Activated Rear Axle Dig Function Lock System
Heavy Duty Steel C-Channel Chassis Optimises Traction
All-Metal Internal Gears Ensure Long Lasting Durability
Highly Detailed Off-Road Crawler Ideal To Suit Everyone

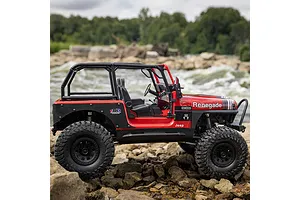

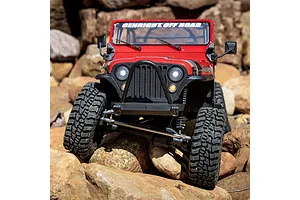

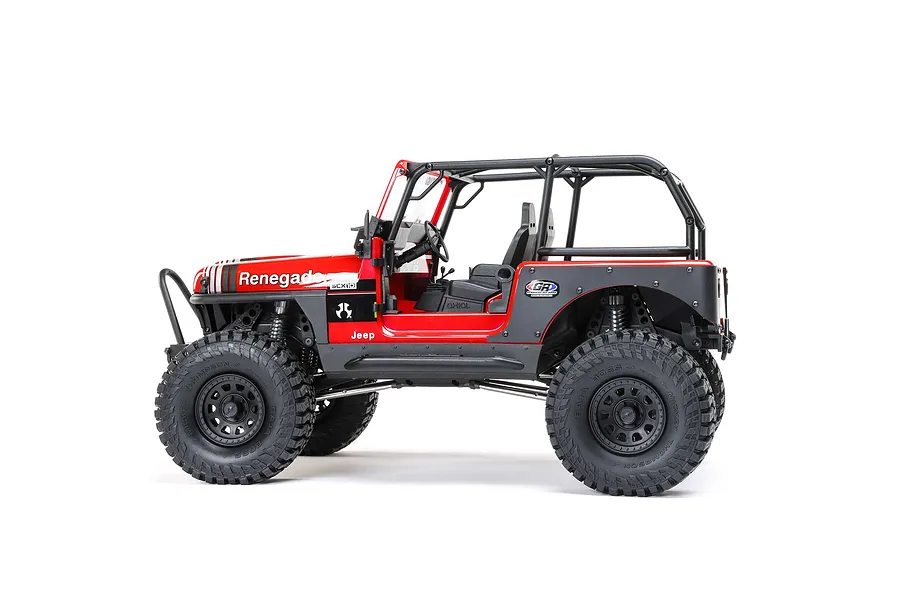

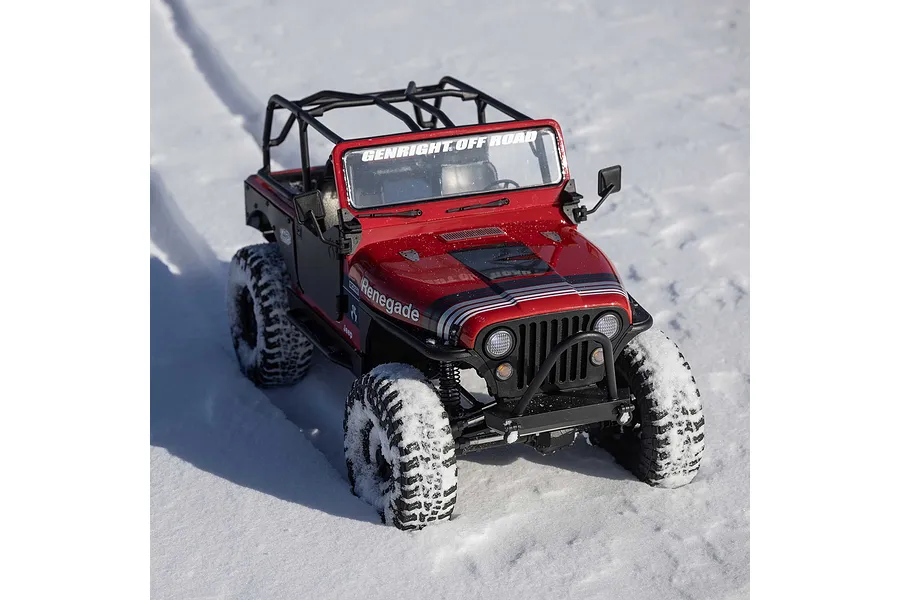

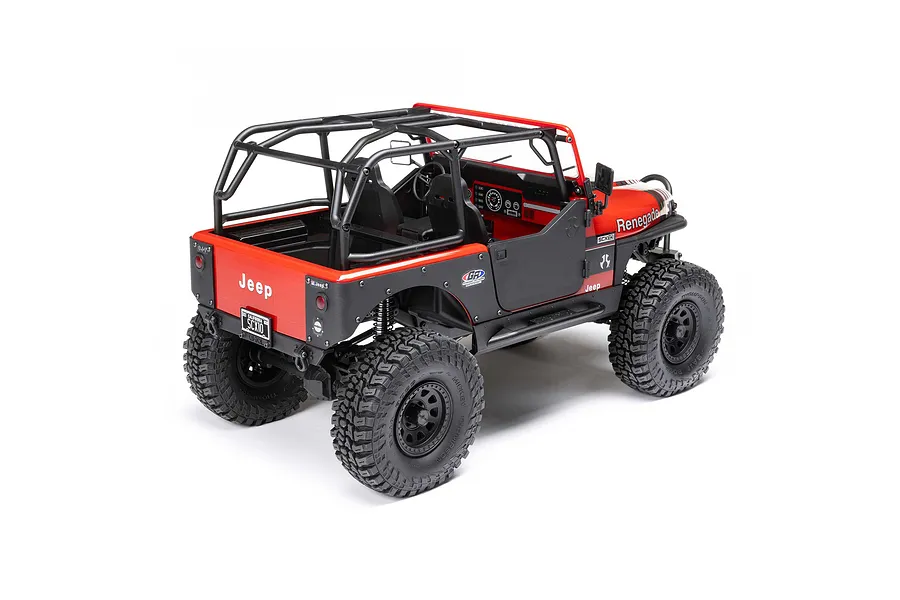

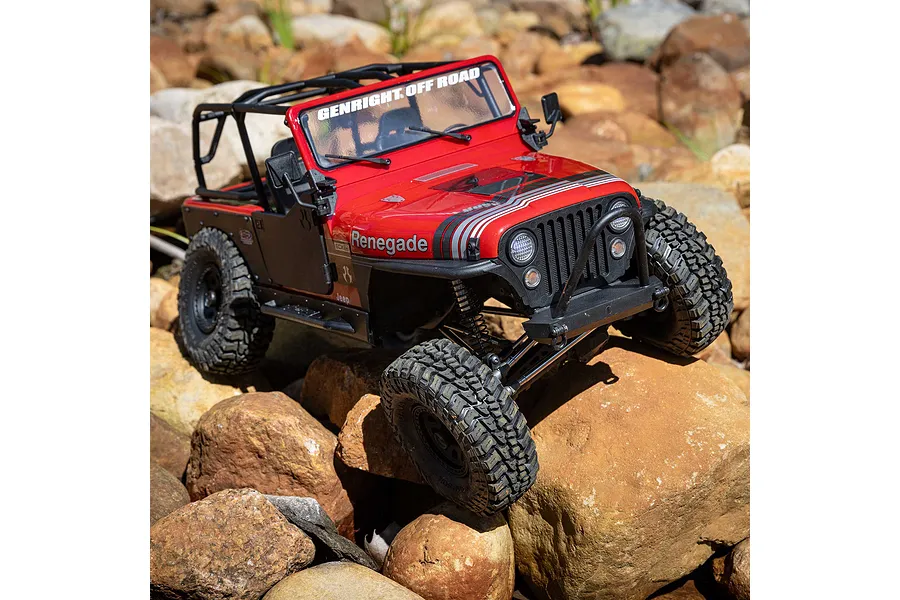

The Axial Jeep CJ-7 V2 recreates an iconic rock crawler from the late 1970s. A durable polycarbonate body pays authentic homage to classic Laredo trim levels, featuring a copper brown finish, chrome grille, and period-correct badging. Scale enthusiasts will appreciate officially licensed Gen-Right bumpers, body armour, and a complete injection-moulded roll cage. An opening centre console highlights the detailed interior, allowing drivers to remove the side doors completely, achieving an authentic open-air aesthetic.

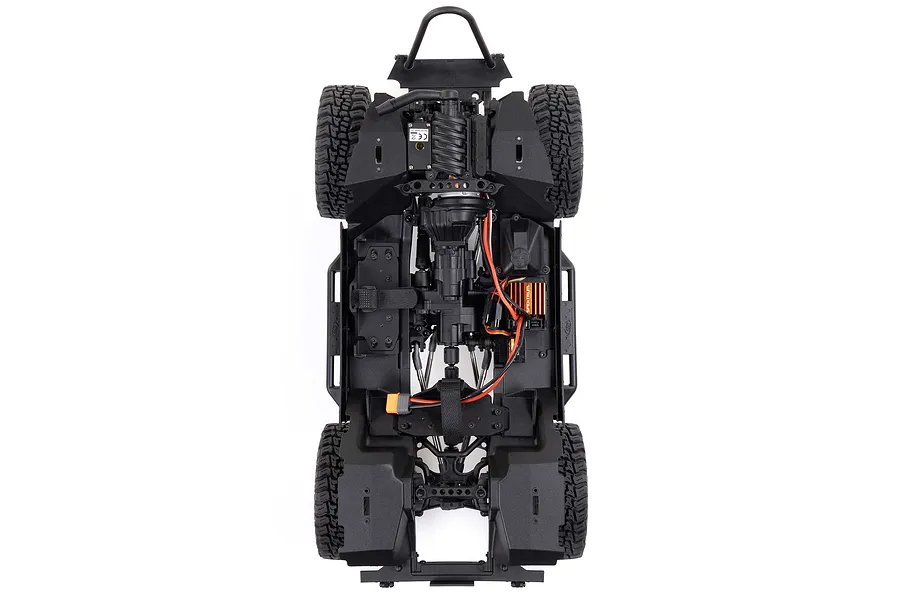

Underneath the detailed exterior sits a proven SCX10 III platform featuring an adjustable steel C-channel chassis. A multi-link solid axle suspension system utilises 6mm stainless steel links and all-metal pivot balls to navigate harsh off-road obstacles. Oil-filled coil-over shocks utilise aluminium threaded bodies providing adjustable dampening across uneven terrain. The drivetrain includes a complete set of ball bearings and all-metal internal gears, ensuring maximum reliability on steep climbs. A built-in Dig function allows drivers to instantly lock the rear axle via the included transmitter, switching to front-wheel drive, achieving tighter turning radii during technical ascents.
Take an essential addition to your off-road collection out onto the dirt. An upgraded electronics suite provides reliable power directly out of the box. Lock those hubs and conquer the toughest backyard boulders!

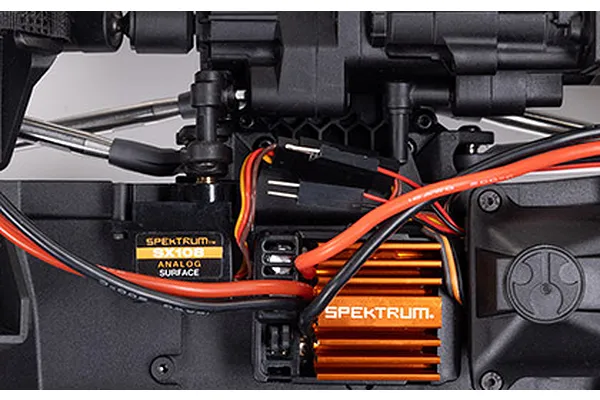

The transmission includes a factory-installed DIG function, allowing you to lock the rear axle directly from your transmitter. This instantly switches the rig to front-wheel drive, providing a much tighter turning radius and better control when navigating technical rocky sections. The system comes ready to use with a Spektrum SX108 micro analog metal gear servo already mounted and adjusted for precise mechanical engagement.

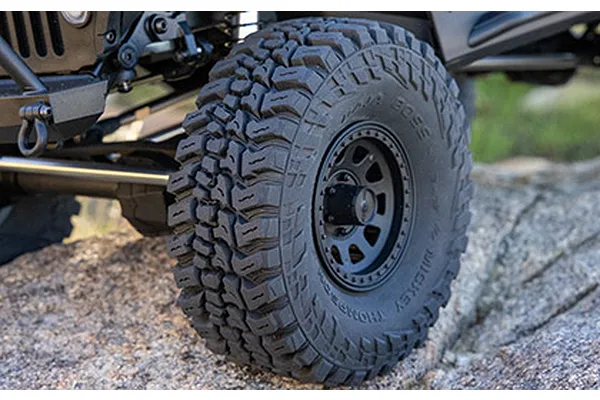

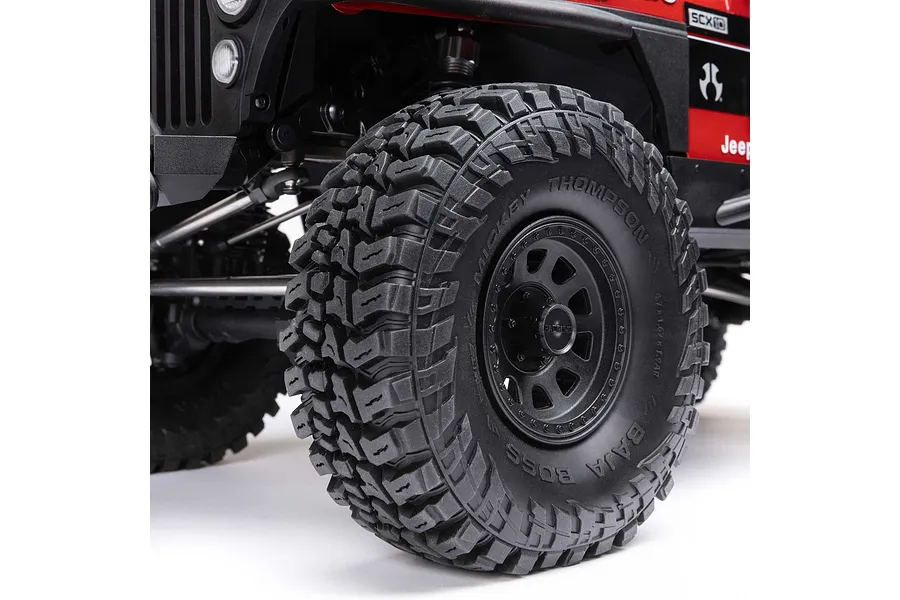

Experience superior scale realism and grip with officially licensed Mickey Thompson Baja Boss R30 compound tyres. These high-traction treads are mounted on officially licensed Raceline Daytona beadlock wheels, which allow for easy tyre maintenance without the need for glue. This authentic wheel and tyre package ensures the 312mm (12.3") wheelbase crawler finds secure footing on everything from loose dirt to steep rock faces.
The durable polycarbonate body features an authentic Copper Brown finish, a chrome grille, and iconic LAREDO badging, paying tribute to the legendary trim levels of the late 70s. This highly detailed shell includes officially licensed Gen-Right bumpers and body armour, a full injection-moulded roll cage, and functional opening doors. The scale interior even features an opening centre console, adding another layer of depth to this 480mm (18.9") long masterpiece.
The included Spektrum SLT3 3-channel transmitter is a dual-protocol system that is fully compatible with both SLT and DSMR receivers. Identified by its special green power button, this variant features adjustable endpoints on the third channel specifically to optimise control of the DIG function. This allows you to upgrade to premium Spektrum transmitters later without replacing the factory-installed receiver, making it an ideal choice for growing hobbyists.

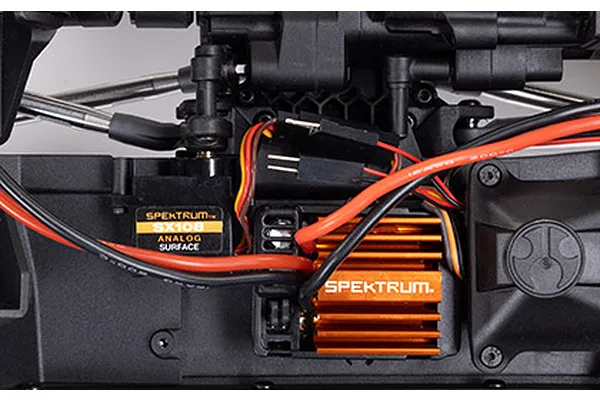

This RTR package comes equipped with a reliable Axial Slickrock 35T 540-size brushed motor, delivering the smooth low-end torque required for precision crawling. Power is managed by a Spektrum 40A waterproof brushed ESC and the Spektrum SR515 DSMR 5-channel receiver. This upgraded electronics suite provides better interference resistance and supports easy future customisation as you build your ultimate trail-ready rig.

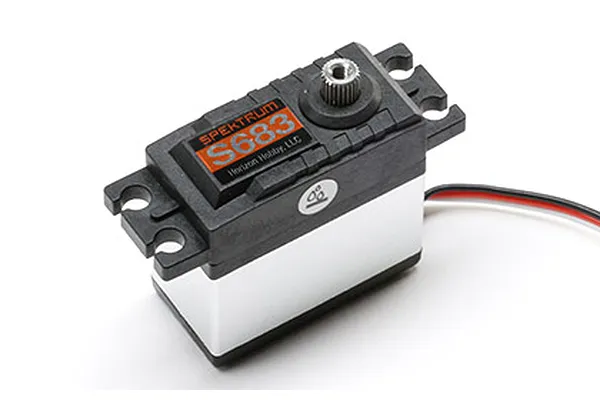

Steering duties are handled by the Spektrum S683 waterproof servo, which features high-strength steel gears instead of standard brass. With an industry-standard 25T spline, this servo offers broader compatibility and the durability needed to turn large tyres through heavy obstacles. Its waterproof construction ensures that your 3.12kg (6.9lb) crawler remains responsive even when navigating muddy creek beds or damp forest floors.

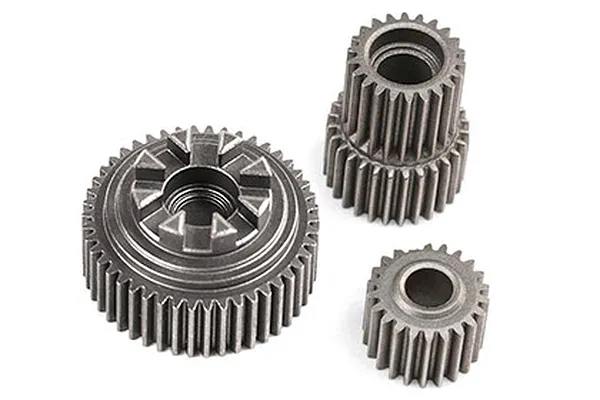

The CJ-7 transmission is built for long-term mechanical reliability with a complete set of all-metal internal gears. Supported by a full set of high-quality ball bearings, the drivetrain operates with minimal friction and maximum efficiency. These robust internals are designed to handle the stresses of 3S LiPo power, ensuring that your 1/10 scale crawler remains "trail-tough" during the most demanding vertical climbs.
The multi-link solid axle suspension system is built for off-road durability using heavy-duty 6mm (0.24") stainless steel links. These high-strength components, paired with all-metal pivot balls, reduce bending and breaking while minimising unwanted axle steer under heavy loads. This geometry ensures the AR45 standard straight axles remain stable and predictable, providing a professional-grade foundation for technical crawling performance.

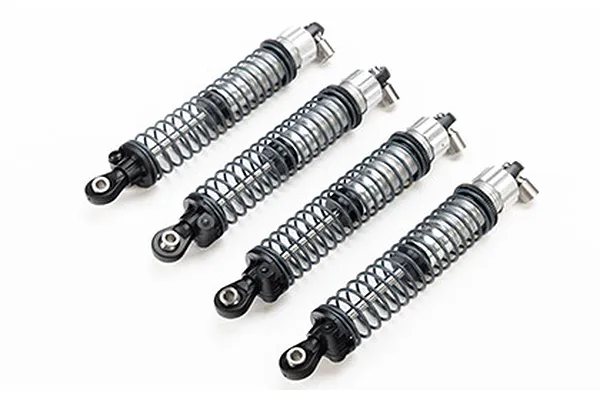

Fine-tune your ride with oil-filled shocks featuring threaded aluminium bodies and a single coil-over spring. The adjustable design allows you to quickly change spring preload and damping characteristics to suit different terrain types and vehicle weights. These tunable units help maintain maximum traction and stability, protecting your 248mm (9.76") tall rig from hard impacts while ensuring smooth articulation across uneven ground.
Officially licensed Jeep CJ-7 polycarbonate body with copper brown finish
Transmitter activated rear axle Dig function enables front wheel drive steering
Adjustable steel C-channel chassis provides maximum off-road articulation
Multi-link solid axle suspension uses 6mm stainless steel links and pivot balls
Oil-filled coil-over shocks feature threaded aluminium bodies to tune dampening
Drivetrain includes full ball bearings and all-metal internal transmission gears
Officially licensed Raceline Daytona beadlock wheels secure high traction tyres
Mickey Thompson Baja Boss R30 compound tyres navigate steep rock inclines

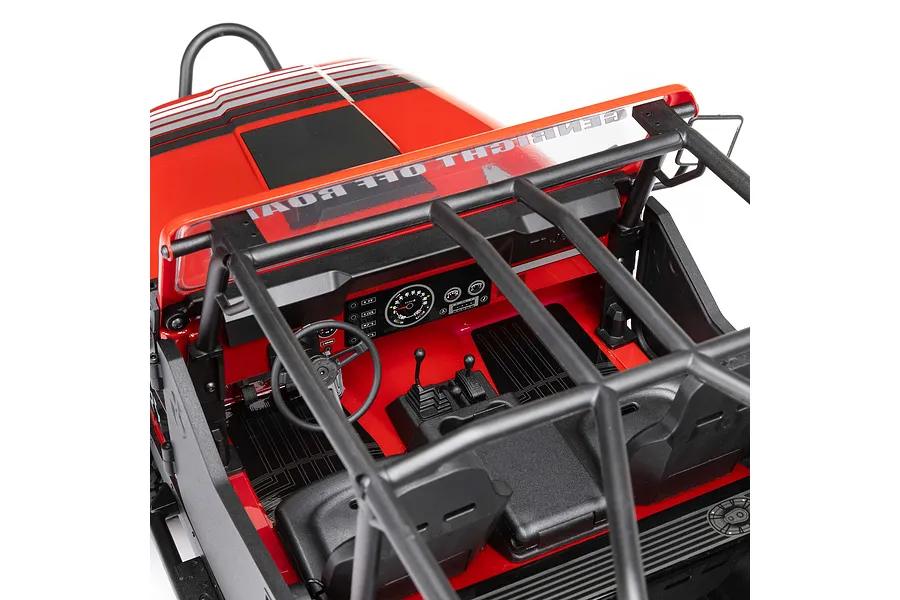

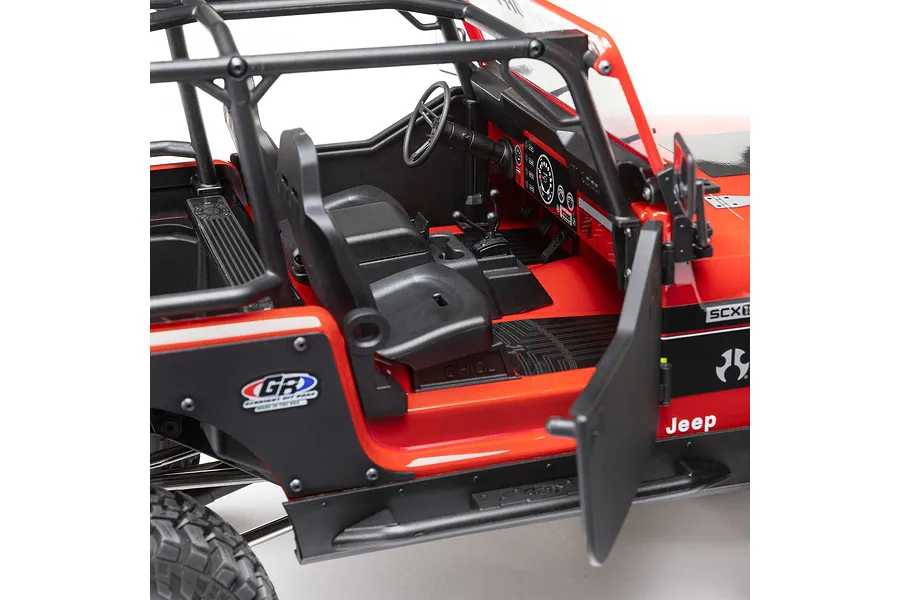

Detailed interior features an opening centre console and removable side doors
Waterproof electronic speed control supports versatile battery configurations
Factory installed 35T brushed motor delivers reliable slow speed torque
Genuine Axial Product
Length: 480mm (18.90")
Width: 235mm (9.25")
Height: 248mm (9.75")
Wheelbase: 312mm (12.30")
Weight: 3.12kg (6.90lbs)
Chassis: Steel C-Channel
Drivetrain: 4WD
Suspension: Multi-Link Solid Axle
Motor: 540 Size Brushed
ESC: Included

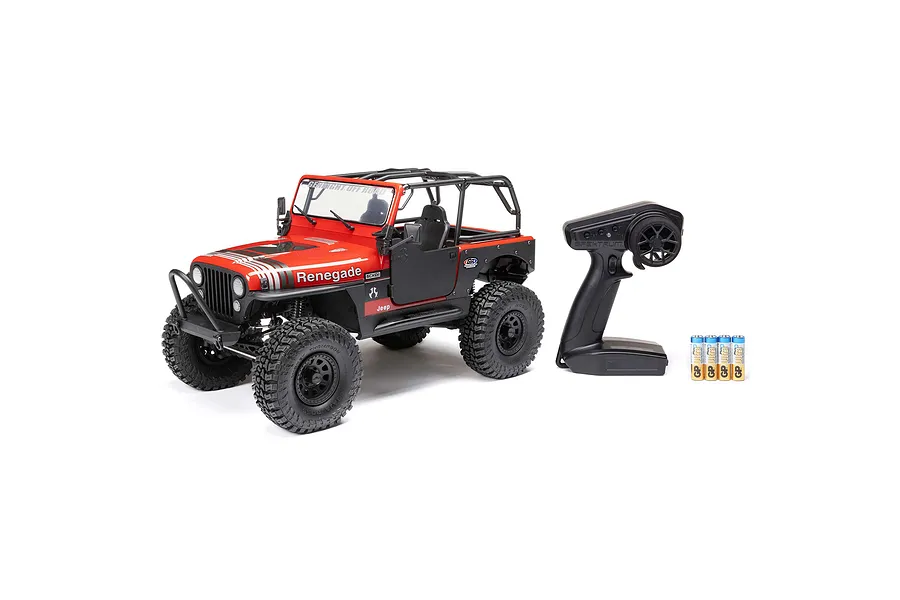

1x Axial SCX10 III Jeep CJ-7 V2 RTR
1x Spektrum SLT3 3-Channel Transmitter
1x 540 Size 35T Brushed Motor
1x Electronic Speed Control
1x 5-Channel Receiver
1x Steel Gear Steering Servo
1x Micro Analog DIG Servo
4x AA Alkaline Batteries
1x Product Manual
1x 2S or 3S LiPo Battery with EC3 or IC3 Connector
1x Compatible Battery Charger
1x LiPo Safe Charging/Storage Bag
Please refer to the instruction manual for operation, safety, waterproof standards and maintenance instructions.
-
Scale
- 1/10
-
Max LiPo Power
- 3S (11.1v)
-
Completion
- Ready to Run
-
Skill Level
- Beginner
-
Power Source
- Electric Brushed
-
Chassis Type
- Rock Crawler
-
On/Off Road
- Off Road
-
Drivetrain
- 4WD
-
Max LiPo Power
- 3S (11.1v)
-
Battery Connector
- EC3, IC3
-
Pinion Gear
- 14T 32dp/0.8Mod
-
Spur Gear
- 52T 32dp/0.8Mod
-
Wheel Hex Size
- 12mm
