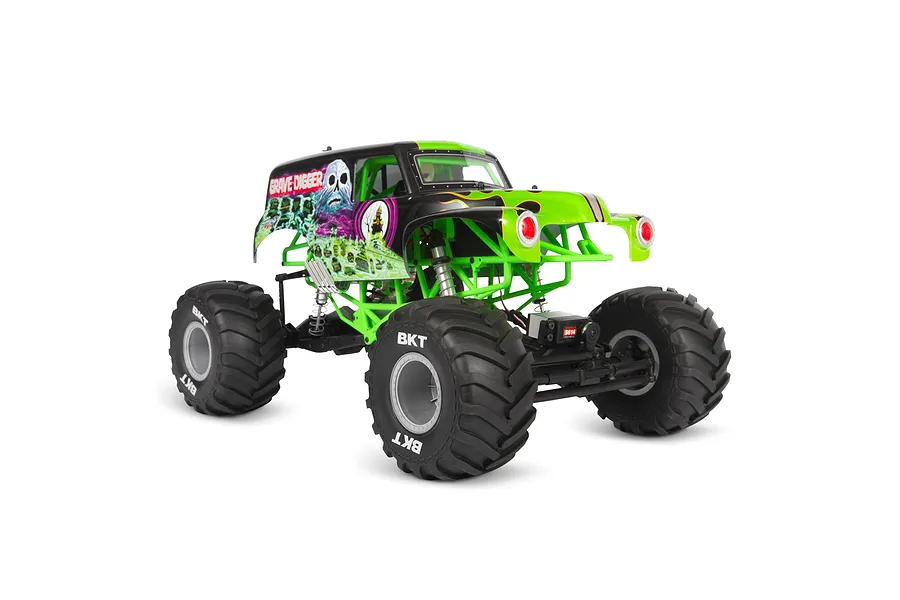

Name: Axial SMT10 Monster Jam Grave Digger RC Rock Racer Electric 4WD 1/10 Scale RTR
Brand: Axial
SKU: AXI-AXI03019
Price: 533.95 AUD
Availability: Discontinued

Recommended products

G.T. Power N802 NiMH/NiCad Charger
8 reviews
$31.52
Fujitsu 1.5v AA Alkaline Batteries 4Pcs
25 reviews
$6.99
Sold out
Gens Ace 7.2v 3000Mah NiMH Battery
$54.16

Overview

The iconic Grave Digger 1950s-style panel van — a ghoulish blend of black, purple and green — has thrilled fans of the full-scale Monster Jam legend for many years. Axial Racing obtained the license from Feld Motorsports to offer the Grave Digger for the first time as a true-to-scale, 4-wheel drive, straight-axle RC monster truck. The RC Grave Digger rides on the Axial SMT10 tube frame chassis, developed for maximum bashing strength and an extremely detailed appearance. High-quality electronics contribute to the model's never-say-die performance. Available ready-to-run, the vehicle comes with a 2.4GHz Spektrum radio system and powerful Dynamite motor and ESC.

Features

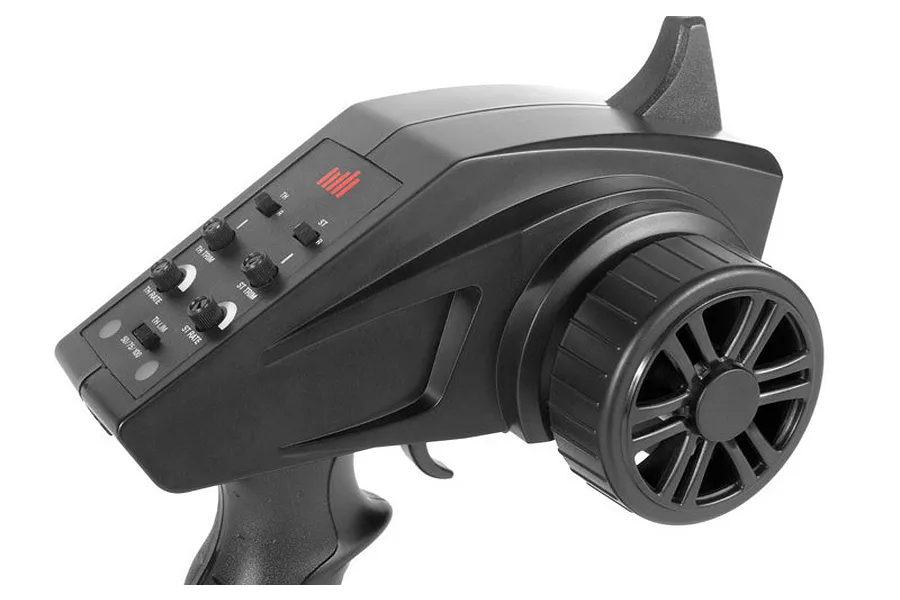

Spektrum STX2 FHSS 2.4GHz 2-channel transmitter — extended range and interference-free performance
Throttle and steering reversing
Built-in 3-position throttle limiter
Steering and throttle rate and trim adjustments

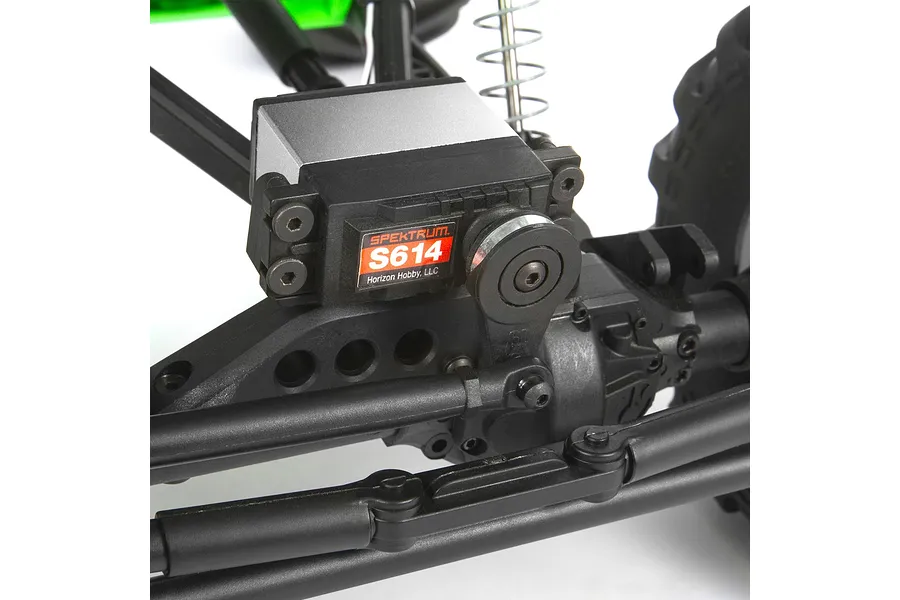

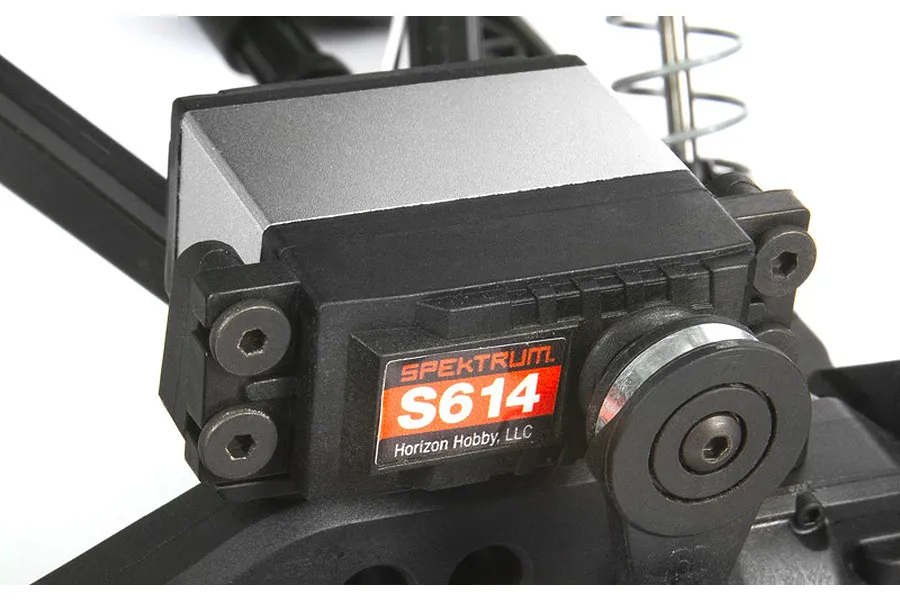

Spektrum S614 waterproof servo — metal geared and metal case, 201 oz-in of steering torque
Spektrum SRX200 FHSS 2.4GHz 2-channel receiver — conformal-coated for protection against the elements
Extra-long antenna lead for easy and effective placement
Waterproof receiver box with silicone seals for antenna, servo wires, and cover

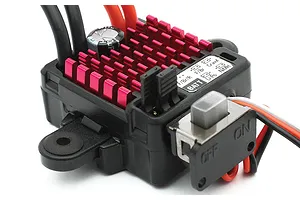

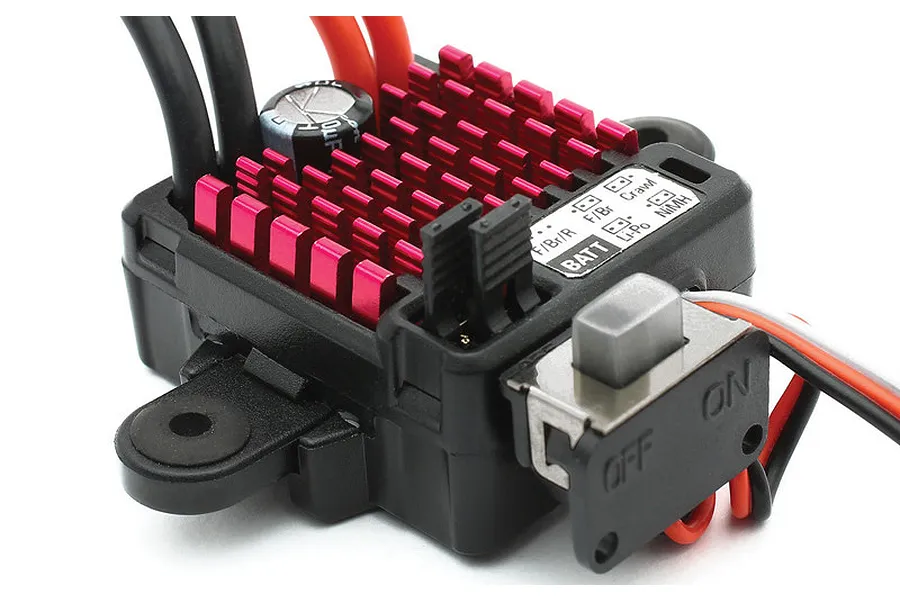

Dynamite DYNS2210 60A FWD/REV brushed waterproof ESC — LiPo and NiMH compatible
Forward/brake/reverse, forward/brake and crawler drive modes
Program functions changed with jumper pins

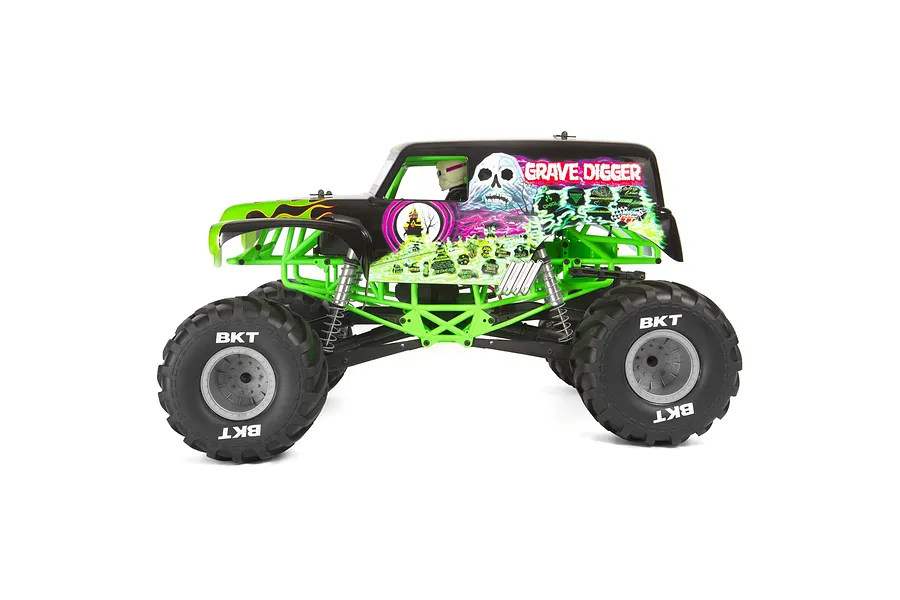

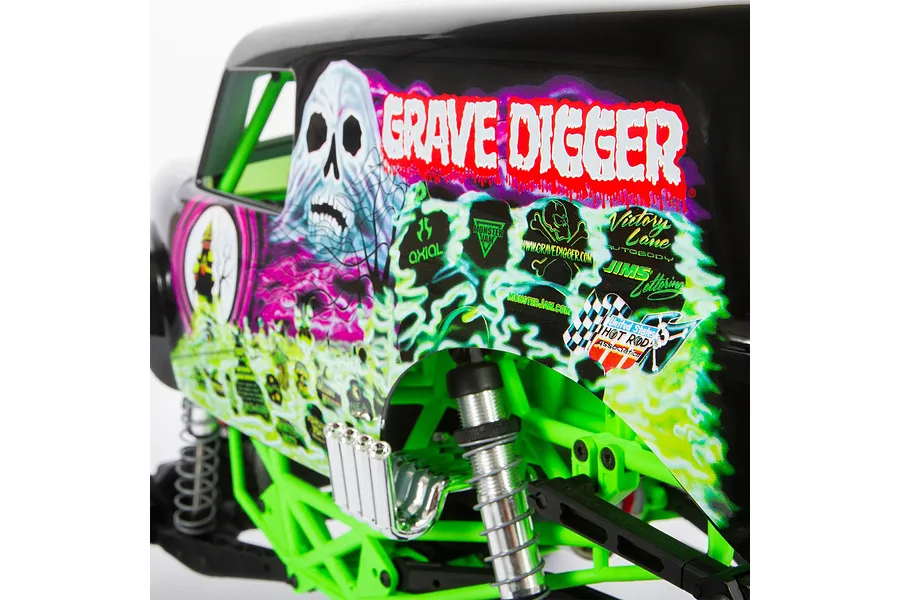

Replica of iconic 1950 Grave Digger panel van, licensed by Feld Motorsports
Moulded .040 polycarbonate scale body and interior

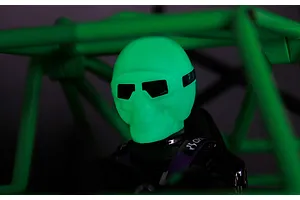

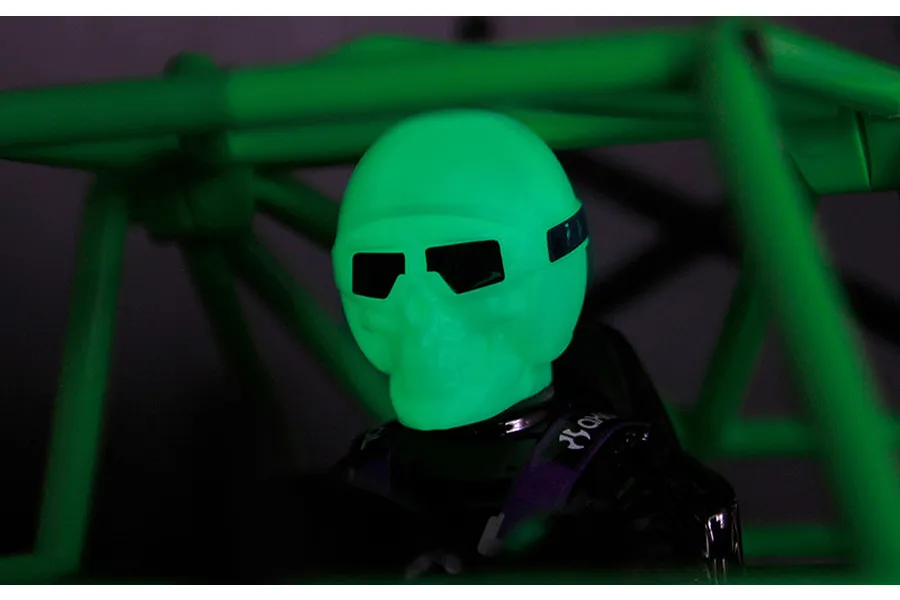

Glow-in-the-dark helmet set included for driver figure

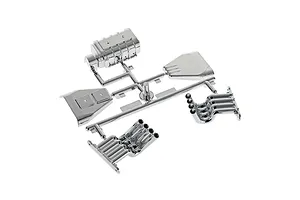

Chromed Zoomie style headers
AX10 transmission provides more precise tuning and holding power
Heavy-duty dual pad slipper system with 32-pitch gearing for high-torque applications
56T Spur / 14T Pinion RTR gearing for 2S
Metal motor plate and all-metal internal transmission gears
Sealed gear cover

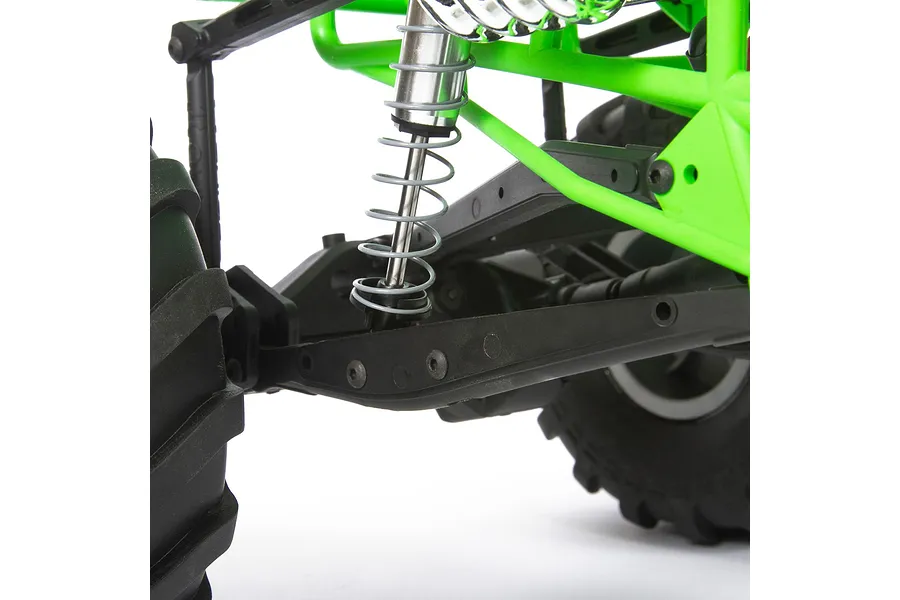

Solid axle 4-link suspension mated to a proven AR60 axle

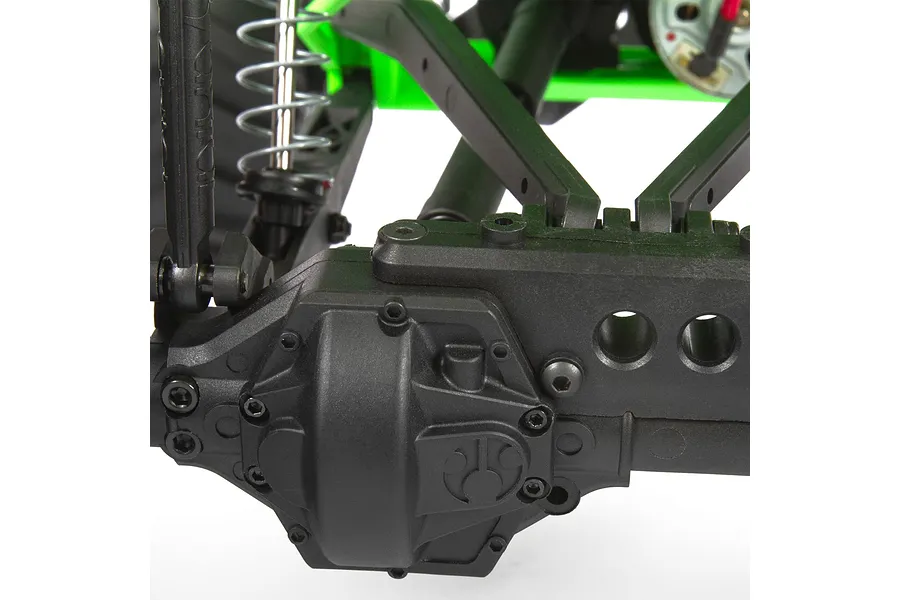

AR60 OCP-axle — high-strength composite construction with off-centre pumpkin design
Axle tubes reinforced with boxed-in axle truss
Steering knuckles updated for dual shear — also eliminates secondary bolt on plate
Differential cover and servo mount updated with new look

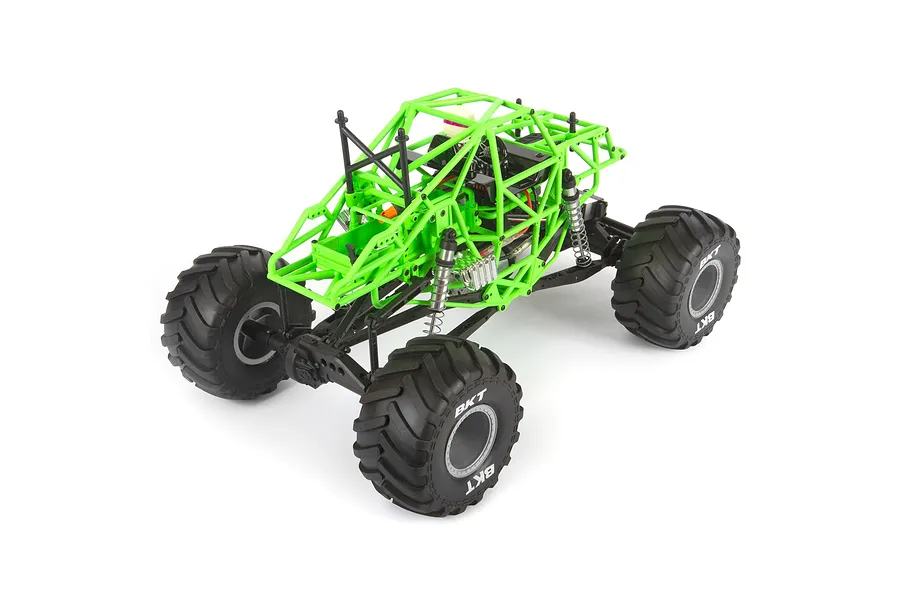

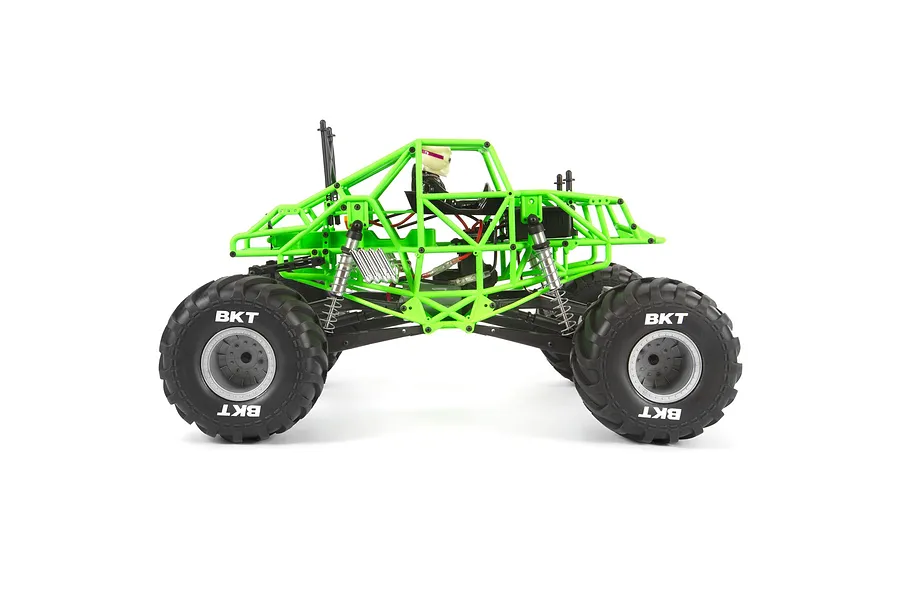

Tube frame chassis designed after full-scale Monster Jam trucks for maximum strength and scale looks
Multiple shock mounting positions for additional suspension tuning options
Easy access, adjustable battery tray
550-size motor for increased top speed and torque
WB8 HD driveshafts — strengthened design with new centre splined slider floats between each end, reduces flex and fatigue

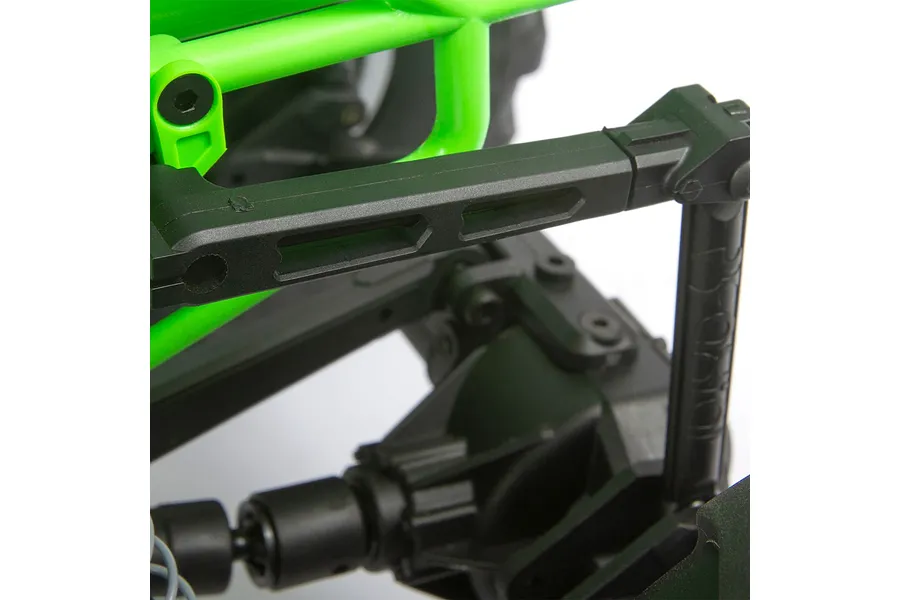

Rear sway bar reduces torque twist and body lean during acceleration
SMT10 chassis design lets you add an optional sway bar to the front

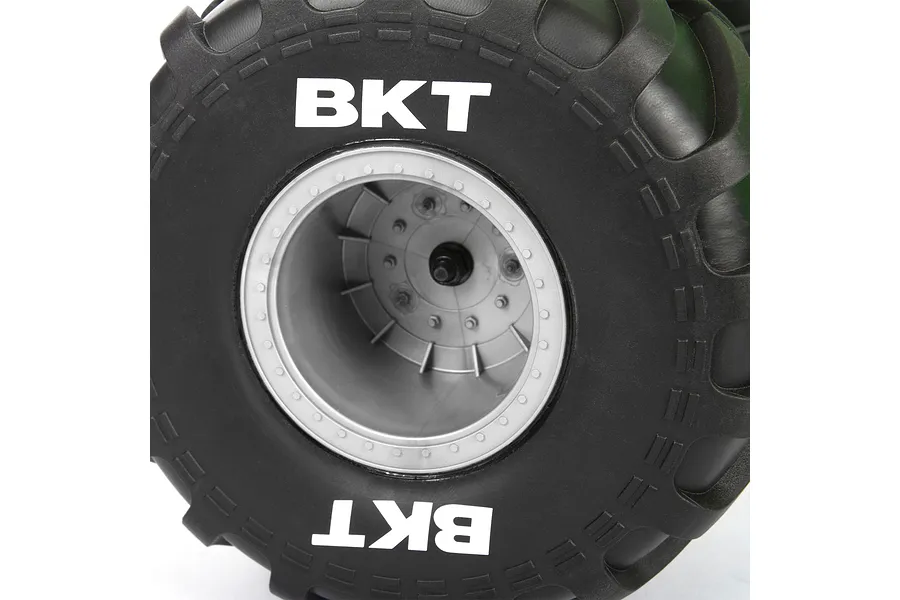

2.2 Monster Truck Wheels moulded from a high-quality nylon blend for strength
BKT Monster Jam official tyres — scale replicas that look like the real deal

In the box

Axial SMT10 Grave Digger 4WD Ready-to-Run with:
Spektrum STX2 2.4GHz Transmitter
Spektrum SRX200 Receiver
Spektrum S614 Servo

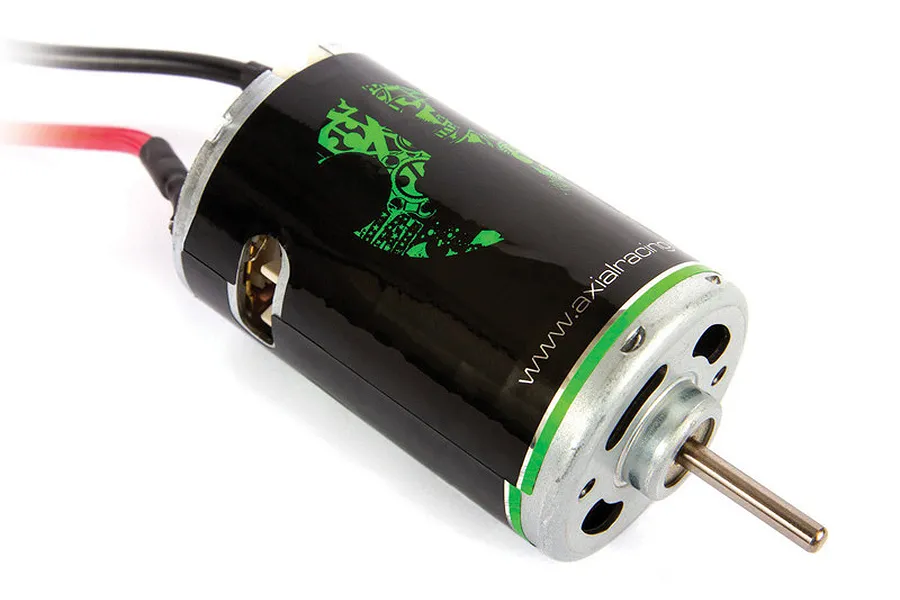

Dynamite DYNS1222 12-Turn 550 Brushed Motor
Dynamite DYNS2210 60A FWD/REV Brushed ESC

You'll need

2S LiPo Battery Pack with IC3 connector
Battery Charger
4x AA batteries for the transmitter

Specifications

Length	483mm (19")
Width	335mm (13.2")
Height	270mm (10.6")
Weight	3.22kg
Wheel Base	353mm (13.9")
Ground Clearance	74mm (2.9")
Drivetrain	4WD

RC Car

Scale	1/10
Max LiPo Power	2S (7.4v)
Completion	Ready to Run
Skill Level	Beginner
Power Source	Electric Brushed
Chassis Type	Truck
On/Off Road	Off Road
Drivetrain	4WD
