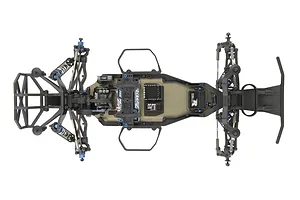

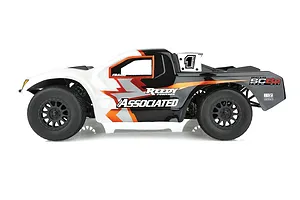

Name: Team Associated RC10 SC6.2 Team Kit RC Short Course Truck Electric 2WD 1/10 Scale Kit
Brand: Team Associated
SKU: ASS-70008
Price: 523.88 AUD
Availability: Discontinued

Overview

Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Transmitter or Body Shell.

Based on Team Associated's RC10T6.2 platform, the RC10SC6.2 Team Kit represents the next step in competitive short-course racing. The RC10SC6.2 began development with the advantages learned through the RC10B6.2 and RC10T6.2, incorporating updates and more tuning option parts in the box. It shares key components with the RC10B6.2, RC10B6.2D, RC10T6.2, and RC10B74.1 Team Kits, making it easier to run multiple classes at the same time.

Note

This is an unassembled kit. It requires assembly and additional electronics not included in the box. The included short course body is unpainted — use only polycarbonate-safe paint (such as Tamiya PS series). Body post holes may need to be drilled. Consult the manual for detailed assembly and setup information.

Features

B74.1 two-piece rear hubs with aluminium upper caps for fine geometry adjustments
1.3mm front anti-roll bar and hardware included for added high-speed stability
Both Laydown and Layback Stealth transmissions included for tuning weight bias
Factory Team 13g aluminium ESC tray
New rear shock tower with new inner shock mounting position
Updated side rails for 30mm motor fan mount shared with B6.2 series buggies
+1 carbon fiber steering block arms
B74 66mm rear axles with 91mm CVA bones
8.5mm aluminium rear clamping hexes with laser etching
Updated front bumper design for increased durability
Lightweight, hard-anodized aluminium chassis with centralized mass and three mid-motor positions
Layback Stealth transmission for lower and more rearward CG
Differential height adjustment with included 0, 1, 2, and 3mm inserts
Easy access to ball differential
New slipper assembly for better weight balance and shock clearance
Heavy-duty 4mm carbon fiber shock towers
Heavy-duty V2 rear axle with 91mm CVA bones
V2 12mm Big Bore threaded aluminium shocks with 3mm shafts and X-rings
Machined pistons included
Reverse bellcrank steering for more room for mounting electronics
Bolt-on steering block arms for easy Ackermann adjustments
Aluminium rear ballstud mounts
One-piece shock bushings
Lightweight aluminium top shaft
Innovative rear arms with moulded inserts for ultra-fine lower shock mounting adjustments
Aluminium C and D arm mounts for a large range of anti-squat and toe adjustments
Factory Team upgraded ball bearing kit included
Heavy-duty ball cups and ballstuds

In the box

1x Team Associated RC10SC6.2 Team Kit
1x Instruction Manual

You'll need

1x 7.4V LiPo Battery
1x LiPo Charger
4x AA batteries
1x 1:10 scale 540-size electric motor
1x Electronic Speed Controller (ESC)
1x Radio transmitter and receiver (2-channel)
1x Servo
1x Pinion gear (48 pitch)
1x 1:10 scale short course 12mm hex wheels
1x 1:10 scale short course tires
CA glue for tires and wheels
Thread-locking compound
1x 1:10 short course body

Highlights

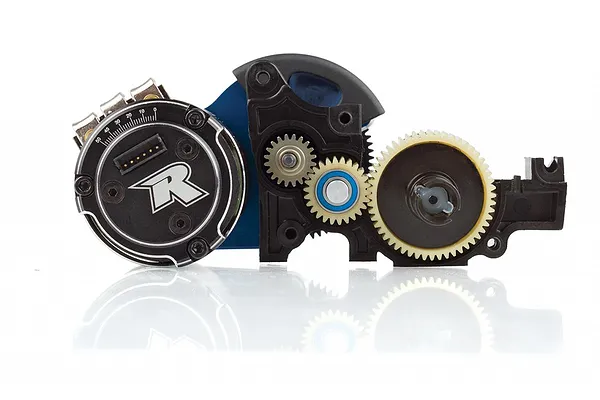

Laydown and Layback Stealth Transmissions

The RC10 SC6.2 Team Kit includes both laydown and layback Stealth transmissions, allowing you to fine-tune the weight bias of your truck for optimal handling and performance on different track conditions.

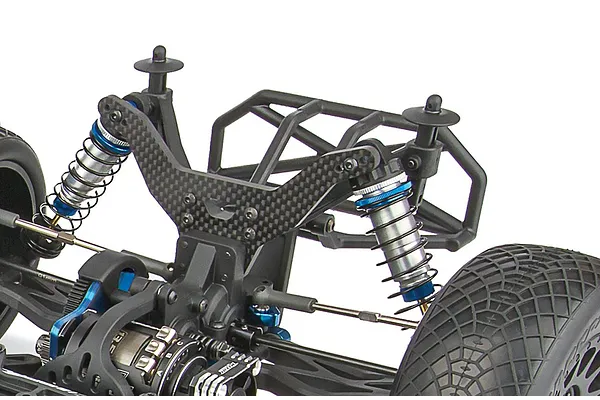

Updated Suspension Geometry

The RC10 SC6.2 Team Kit features updated suspension geometry with flat suspension arms and a new rear carbon fibre shock tower. This refined design enhances handling and stability, providing a competitive edge on the track.

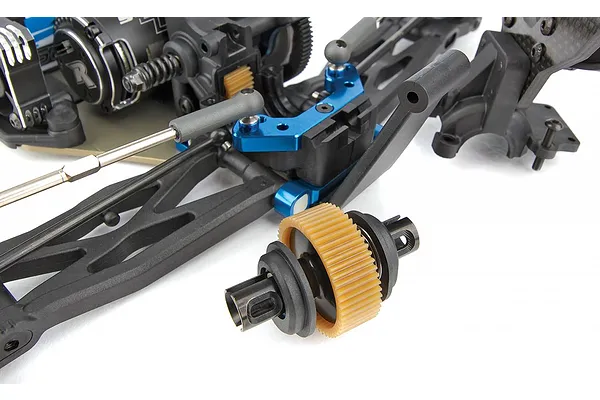

Easy Access Differentials with Adjustable Height

The RC10 SC6.2 Team Kit offers easy access to the differentials, allowing for quick and convenient maintenance and tuning. Differential height can be adjusted using the included 0, 1, 2, and 3mm inserts, providing further customisation options for optimising your truck's performance.

Specifications

Power Source	Electric
Terrain	Off-Road
Body Style	Truck
Scale Size	1:10
Assembly Level	Kit
Length	538mm (21.18")
Width	varies
Wheelbase	varies
Weight	varies
Gear Ratio	2.6:1
Drive	2WD
