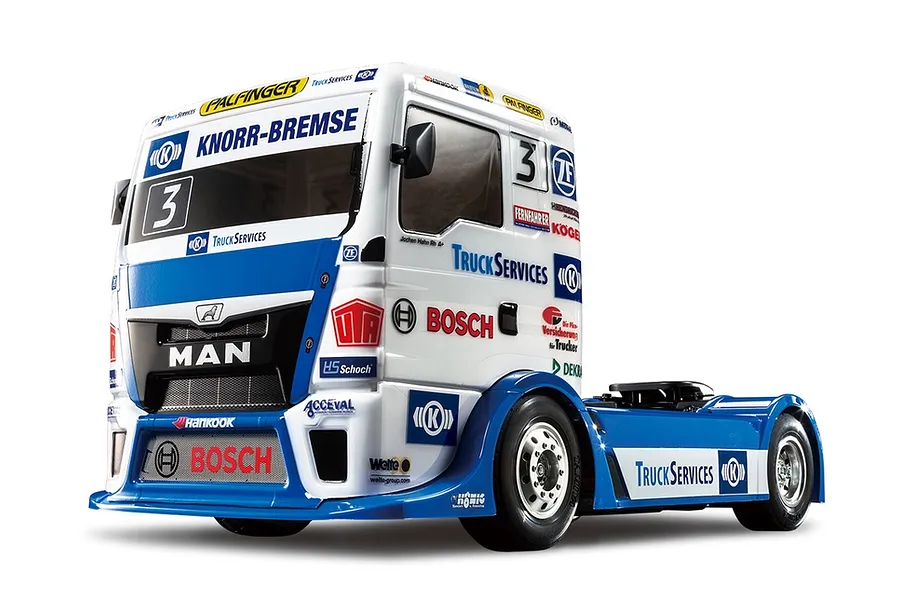

Name: Tamiya TT-01E Team Hahn Racing Man TGS RC Truck Electric 4WD 1/14 Scale Kit (No ESC)
Brand: Tamiya
SKU: TAM-58632A
Price: 212.87 AUD
Availability: Discontinued

Recommended products

FlySky FS-GT2 2.4Ghz 2ch Radio w/ Receiver
9 reviews
$57.39
Power HD Standard LF-13MG 13kg Metal Geared Servo
9 reviews
$39.99
G.T. Power N802 NiMH/NiCad Charger
8 reviews
$31.52
RGT 60A Waterproof Brushed ESC
3 reviews
$54.99
Sold out
Gens Ace 7.2v 3000Mah NiMH Battery
$54.16

Overview

This R/C model assembly kit recreates the Team Hahn Racing MAN TGS truck which stars on the truck racing circuit in Europe. The realistic body is a 4-piece set made from lightweight and durable polycarbonate, with separately moulded plastic side mirrors, coupler and rear bumper parts. The TT-01 Type-E chassis is a proven performer, fitted here with dedicated new wheels and tyres for the model.

The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for a lower centre of gravity and optimum balance. A fibreglass-reinforced nylon upper deck and gear covers improve rigidity, and a 3-piece tie rod provides smoother steering action. The 4-wheel double wishbone suspension system and front and rear differential gears produce excellent operating ability. 70mm-diameter radial tyres are paired with metal-plated wheels developed just for this model; the high sidewalls make for forgiving turns.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

1/14 scale R/C model assembly kit
4-piece polycarbonate body accurately captures the MAN TGS racing truck's form, including depictions of the engine, turbocharger and frame
Separately moulded parts recreate side mirrors, coupler and rear bumper
Marking stickers included to recreate the sponsor livery of the #3 Team Hahn Racing truck for the 2016 season
Wheels and 70mm-diameter radial tyres specifically designed for racing truck models
Moulded parts make the model compatible with LEDs using the separately sold Tamiya LED Light Unit
TT-01 Type-E chassis with shaft-driven 4WD, easy handling and great customisability
Wide range of option parts available to tune the TT-01 Type-E chassis

In the box

1x Tamiya 1/14 TT-01E Team Hahn Racing MAN TGS Electric On-Road RC Truck Kit

You'll need

7.2V NiMH Battery & Compatible Charger
Standard Sized Servo
Electronic Speed Controller (ESC)
2-Channel Transmitter & Receiver
Tamiya PS Polycarbonate Paint

Highlights

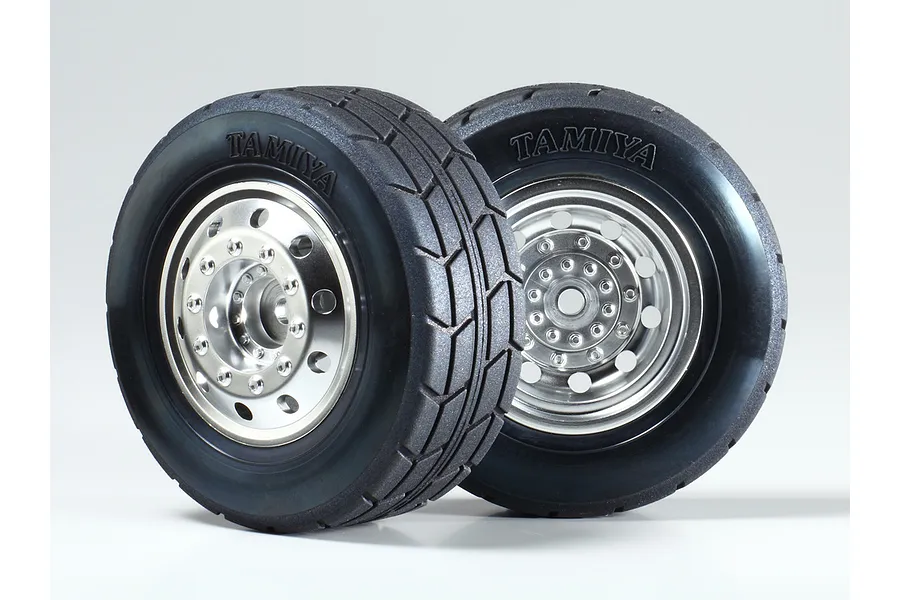

Plated wheels and 70mm-diameter tyres

Beautifully detailed plated wheels and 70mm-diameter tyres were designed just for this model.

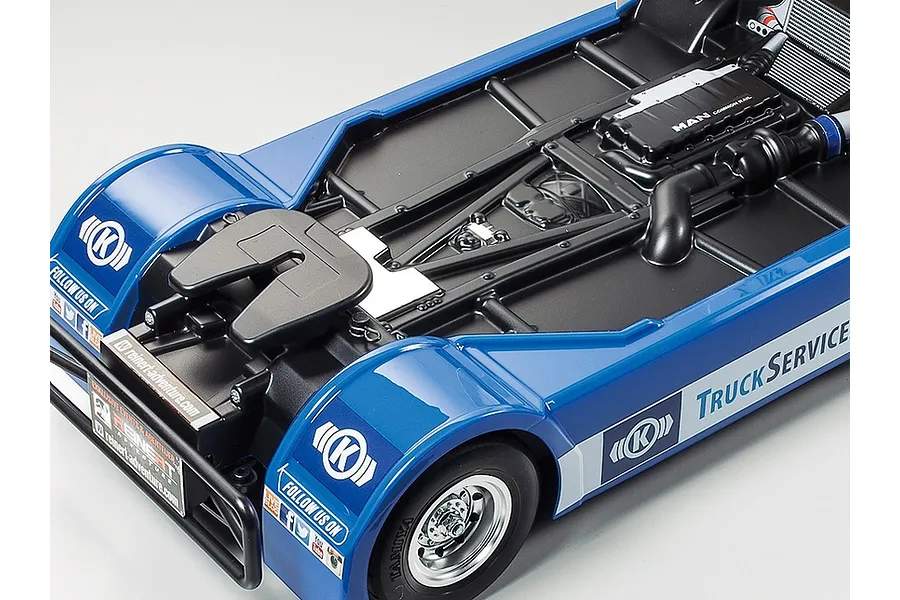

Engine, turbocharger and separately moulded detail parts

Engine, turbocharger and frame are succinctly depicted. Side mirrors, coupler, etc. are separately moulded.

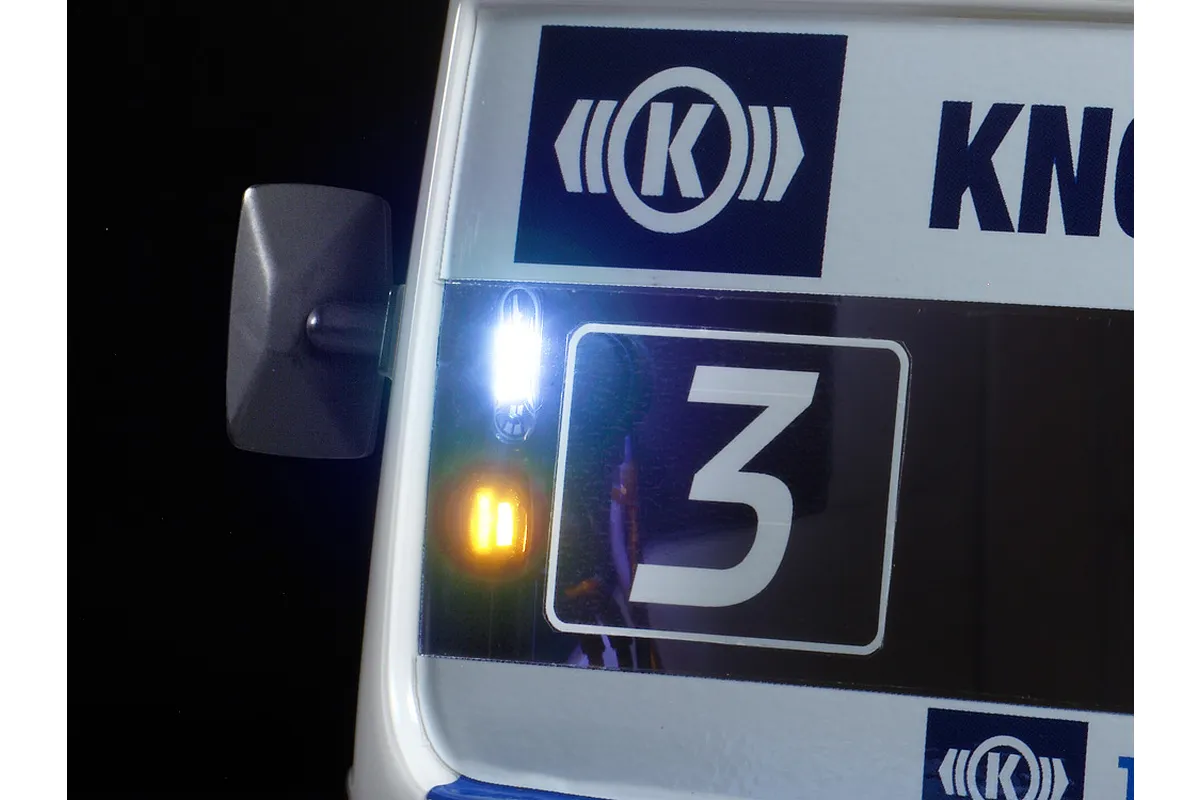

Headlight cases with LED provision

Light cases for headlights are provided, and can be lit up with the aid of separately sold LED's.

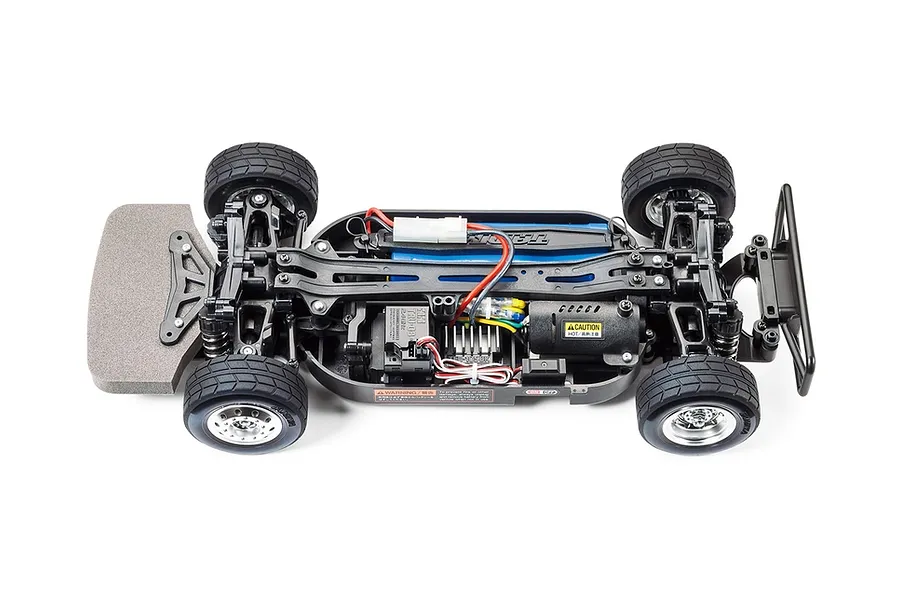

TT-01 Type-E chassis overview

The TT-01 Type-E chassis is a tried and tested unit that offers controllable shaft-driven 4WD. Plenty of Hop-Up option parts are available.

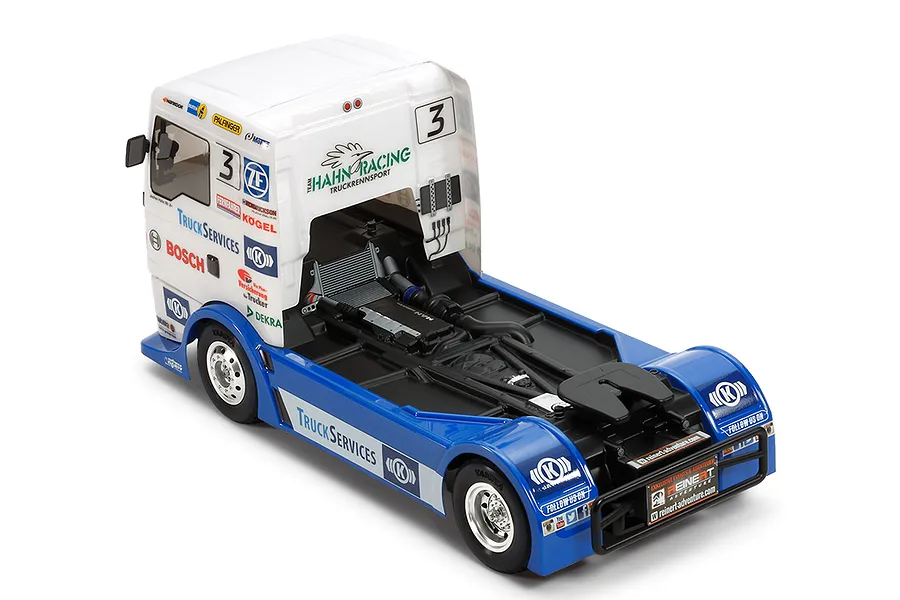

4-piece polycarbonate body depiction

The form of the tractor head is artfully depicted using a 4-piece polycarbonate body. Multiple stickers are included to recreate markings.

Specifications

Length	438mm (17.2")
Width	190mm (7.48")
Height	207mm (8.14")
Wheelbase	257mm (10.1")
Tyre Width/Diameter	28/70mm (Front & Rear)
Chassis Type	TT-01E
Construction Type	Assembly Kit
Drive Type	4WD
Differential	Front/Rear 3-Bevel Resin Differentials
Steering	3-Piece Steering Tie-Rod
Suspension	4-Wheel Fully Independent Double Wishbone with Friction Dampers
Gear Ratio	8.35:1 (9 further ratios from 11.38:1 to 7.28:1 possible with separately-sold pinion)
Bearings	Plastic Bushing
Body Material	Polycarbonate
Motor	Brushed 540 Type
Scale	1/14
Terrain Use	On-Road
ESC	Not Included
