Tamiya TT-01E Mercedes-Benz Actros MP4 MB Motorsport RC On Road Truck Electric 4WD 1/14 Scale Kit

Tamiya TT-01E Mercedes-Benz Actros MP4 MB Motorsport RC On Road Truck Electric 4WD 1/14 Scale Kit

Tamiya TT-01E Mercedes-Benz Actros MP4 MB Motorsport RC On Road Truck Electric 4WD 1/14 Scale Kit

Brand: Tamiya | MPN: 58683
discontinued
Tamiya
Tamiya
Shop replacement & upgrade parts for this model
Shop Parts
Description

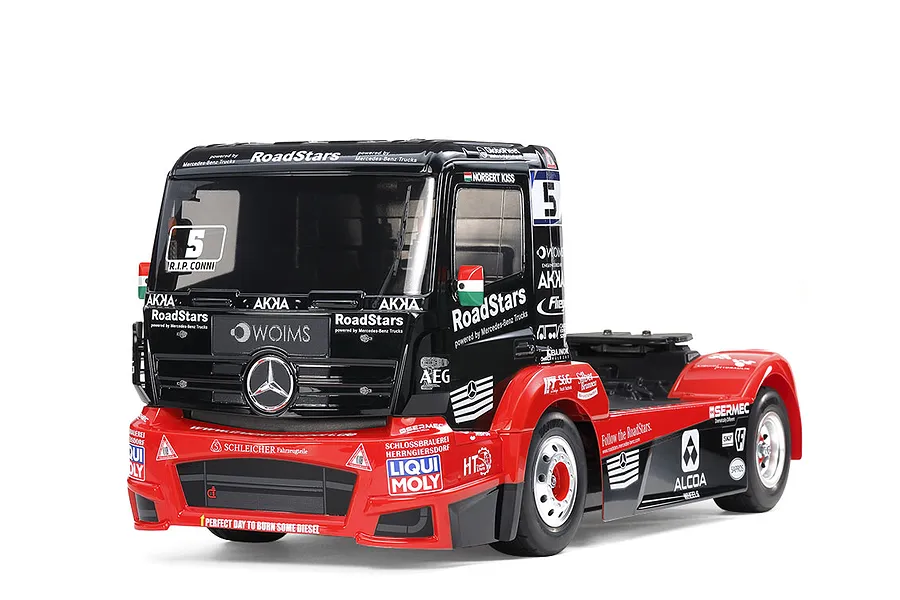

This R/C model recreates the Mercedes Actros as raced by the Tankpool24 team in the 2019 ETRC (European Truck Racing Championship). This specific recreation depicts the truck that carried the team to 4th place in the team standings, with veteran Hungarian driver Norbert Kiss taking 6th in the overall drivers' standings.

The realistic body is a 3-piece set made from lightweight and durable polycarbonate, with separately moulded plastic side mirrors, coupler and rear bumper parts. The body is fitted on top of the proven TT-01 Type-E chassis and is equipped with dedicated semi-truck wheels and tyres for the model.

The TT-01 Type-E bathtub frame keeps motor and battery close to the ground for a low centre of gravity and optimum balance. A fibreglass-reinforced nylon upper deck and gear covers improve rigidity, and a 3-piece tie rod provides smoother steering action. The low centre of gravity, balanced design, 4-wheel double wishbone suspension, and front and rear differential gears produce an excellent drive. 70mm-diameter radial tyres are paired with dedicated racing truck wheels; high sidewalls make for forgiving turns.

Three-Piece Polycarbonate Body Set
Three-Piece Polycarbonate Body Set

The realistic body is a 3-piece set made from lightweight and durable polycarbonate, with separately moulded plastic side mirrors, coupler and rear bumper parts.

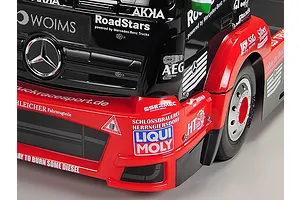

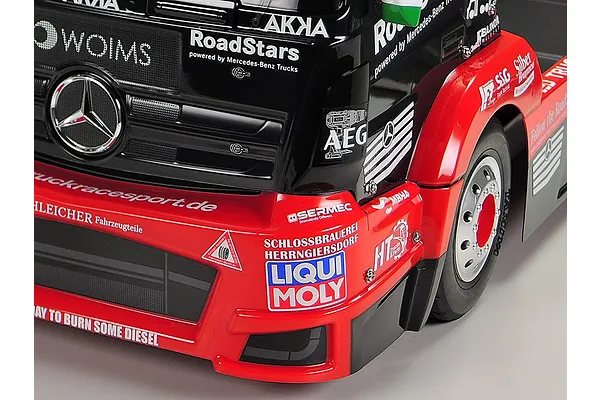

Cab close-up — three-piece polycarbonate body
Cab close-up — three-piece polycarbonate body

The cab's complex, muscular form is recreated in polycarbonate and made up of three separately moulded components.

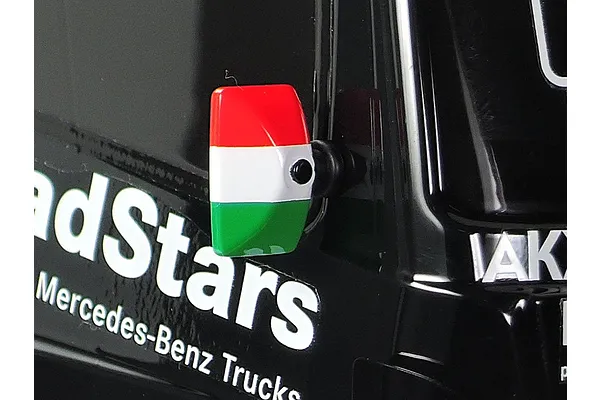

Side mirror detail
Side mirror detail

This is a close-up of the separately moulded side mirror parts; mirror surfaces are recreated with separate polycarbonate pieces.

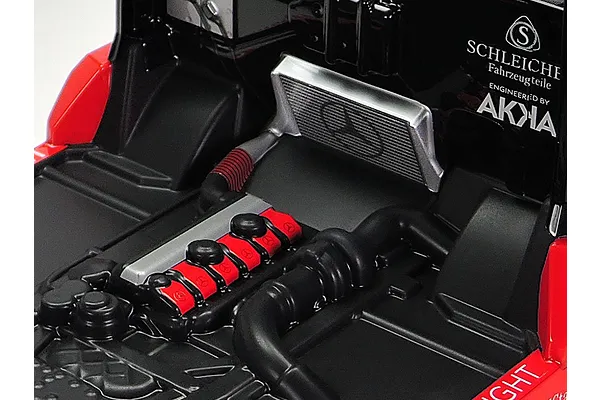

Rear view — turbocharger and frame detail
Rear view — turbocharger and frame detail

A glance at the rear shows a great deal of realism, with depictions of the turbocharger, frame and other sections.

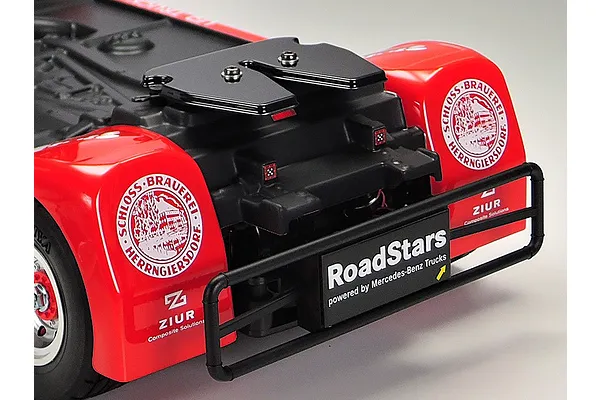

Rear coupler and bumper detail
Rear coupler and bumper detail

At the rear of the model, notable features include a polycarbonate coupler depiction, plus a separately moulded plastic bumper.

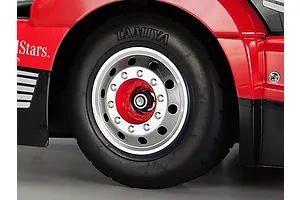

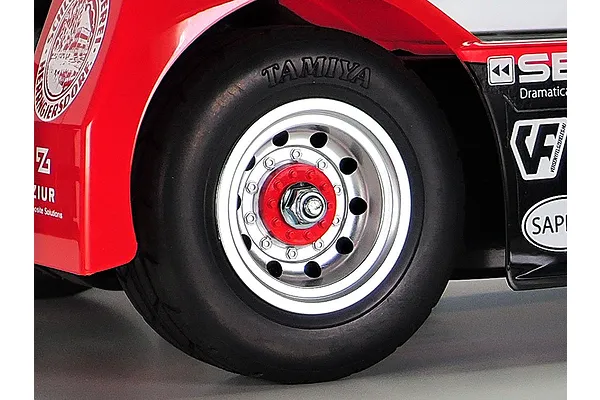

Front wheels — plated finish and treaded tyres
Front wheels — plated finish and treaded tyres

Front wheels have a stylish plated finish and are paired with 70mm diameter treaded tyres.

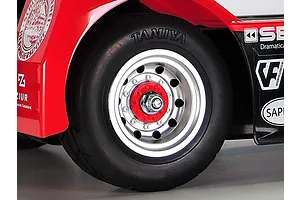

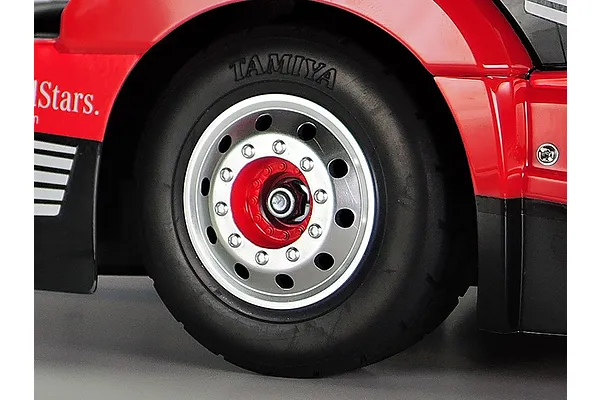

Rear wheels — deep rim design with bolt detail
Rear wheels — deep rim design with bolt detail

Deep rim wheel designs are used at the rear, with fine depictions of details such as the minute bolts.

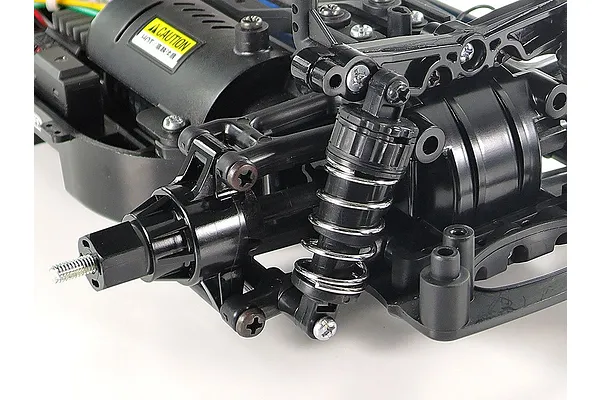

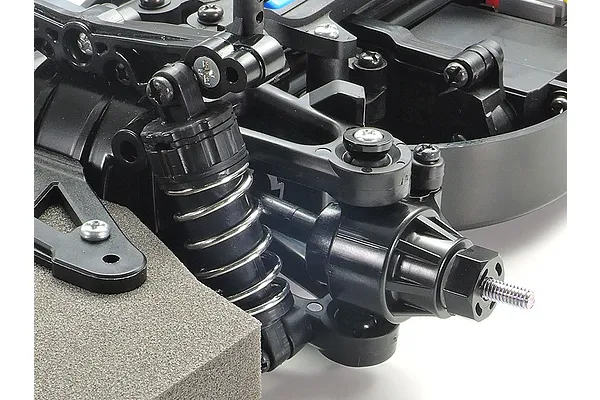

Front double-wishbone suspension
Front double-wishbone suspension

A close-up on the front double-wishbone suspension, which offers a ground-hugging drive; the big bumper helps protect the chassis and body.

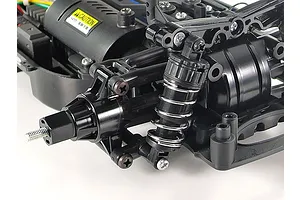

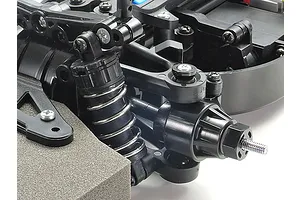

Rear double-wishbone suspension with friction dampers
Rear double-wishbone suspension with friction dampers

The rear also employs a double-wishbone suspension setup, with friction dampers helping absorb any bumps that the model encounters.

Features
  • Ready to assemble electric radio control model kit
  • Coil-sprung shocks
  • Highly realistic body shell
  • Wheels & tyres included
  • Shaft-driven 4WD system
  • Longitudinally mounted motor
  • Fibreglass reinforced nylon resin upper deck & gear cover
  • Sharper steering response with 3-piece linkages
  • Wide variety of optional hop-up parts
  • E denotes "Enhanced Performance" version of the TT-01 chassis
Included Items
  • 1/14 Mercedes-Benz Actros MP4 MB Motorsport Electric On Road RC Truck Kit × 1
  • Tamiya TBLE-02S ESC × 1

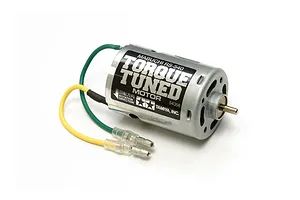

  • Mabuchi RS-540 Torque Tuned Motor × 1
Required Items
  • 7.2V NiMH Battery & Compatible Charger
  • Standard Sized Servo
  • 2Ch Transmitter & Receiver
  • Tamiya PS Polycarbonate Paint
Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies — standard paints will not adhere and/or may cause damage to the body shell's surface.

Specifications
Length
441mm
Width
188mm
Height
194mm
Adjustable Gear Ratio
Yes
Bearings
Plastic bushing
Body Material
Polycarbonate
Body Stickers
Included
Chassis Material
ABS Plastic
Chassis Type
TT-01E
Construction Type
Assembly Kit
Differential Type
Gear
Drive Type
4WD
Electronic Speed Control (ESC)
Tamiya TBLE-02S — capable of running sensor brushless motors and brushed motors alike (21.5 Turn BL motor limit, 23 Turn brushed motor limit)
Motor
Mabuchi RS-540 Torque Tuned Motor
Scale
1/14
Shock Damper
Friction type
Suspension
4-wheel fully independent double wishbone
Terrain Use
On-Road

RC Car
Scale
1/14
Completion
Kit
Skill Level
Experienced
Power Source
Electric Brushed
Chassis Type
Truck
On/Off Road
On Road
Drivetrain
4WD
Factory Specs
Battery Connector
Tamiya
