Spektrum Firma 8A Sensored Brushless Smart ESC & Motor Combo
Brand: Spektrum
|
SKU: SPMXSEMC18
Videos
Description
Please Note: Axial SCX24 vehicles equipped with the Horizon Hobby 2.4Ghz 4Ch Transmitter (HRZ00014) & EC2 2-in-1 Receiver (HRZ00015) require the Spektrum SLT3 2.4Ghz 3Ch SLT Radio w/ SR315 Receiver upgrade for full functionality. Please refer to the manual for more information. (2021 Ford Bronco, Jeep GT Gladiator, and Jeep Wrangler will require this upgrade).
Features

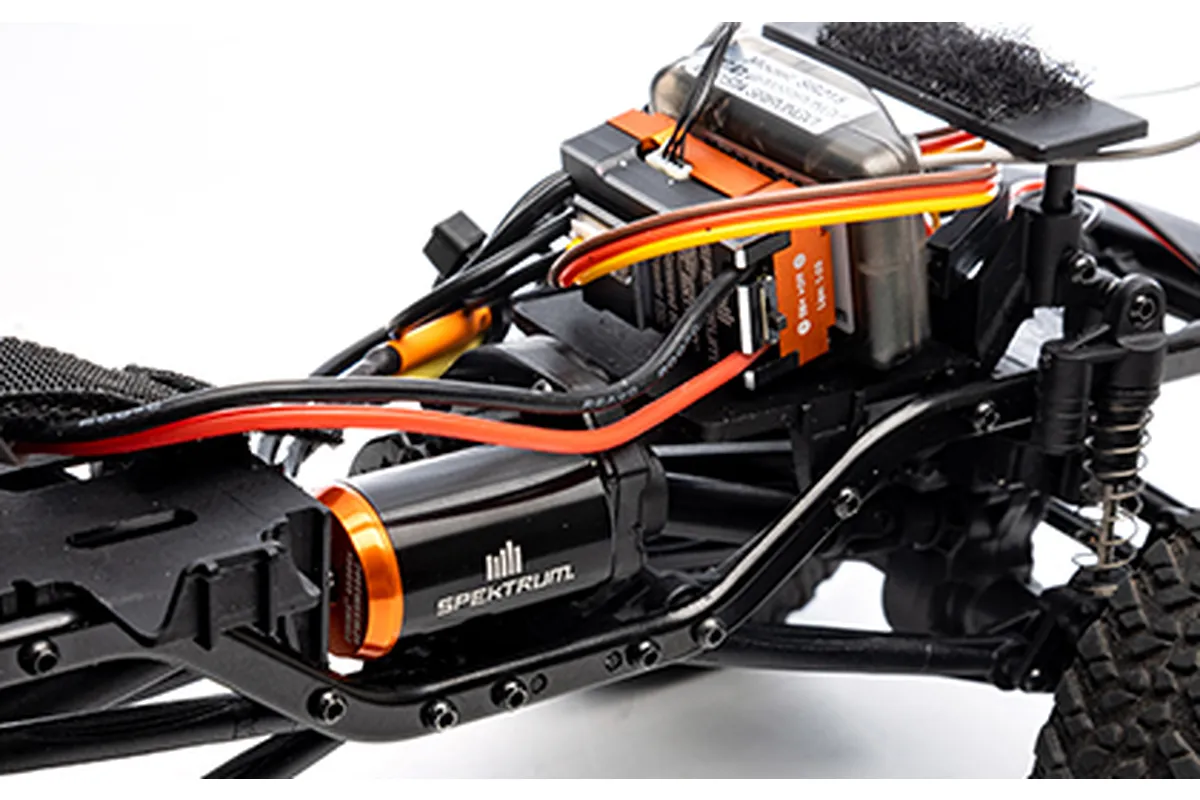

Drop in upgrade for AXIAL SCX24 & AX24 vehicles
The Spektrum Firma 1/24th Scale Sensored Brushless motor and ESC provides Axial SCX24 & AX24 enthusiast with a drop-in motor & ESC system to take their crawling to the next level.
All included
System includes motor, ESC, sensor wire and pinion gears and is preinstalled with 2mm bullet connectors and JST PH 2.0 battery connector to fit the Dynamite 7.4V 350mAh Lipo battery included with the Axial SCX24 & AX24 vehicles.
| Specifications | Value |
|---|---|
| Low-Voltage Cutoff Programmable | No |
| Number of Poles | 2 |
| Overload Protection | Yes |
| Output Connector | 2mm Bullet |
| Auto Cutoff | Yes |
| Maximum Burst Current | 40A |
| Maximum Continuous Current | 8A |
| Motor Type | Brushless Sensored |
| Forward | Yes |
| Reverse | Yes |
| Brakes | Integral with ESC |
| BEC | Yes |
| Input Voltage | 1 - 2S LiPo |
| RPM/Volt (Kv) | 4500 |
| Sensored | Yes |
| Connector Type | PH 2.0 (High-Current Ultra Micro) |
| ESC Type | Brushless Sensored |
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| For Motor Type: | Brushless |
| Max Voltage: | 11.1v |
| Waterproof Design: | Yes |
| Continuous Amps: | 40 |
| Motor Connectors: | 2.0mm Bullet |
| LVC: | Yes |
| Programmable: | Yes |
| Cooling Method: | Air |
| BEC Voltage: | 6v, 7.2 |
| Dual Motor: | No |
| Motor | |
|---|---|
| Type: | Brushless |
| KV: | 4500KV |
| Shaft Diameter (mm): | 2 |
