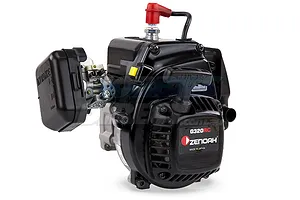

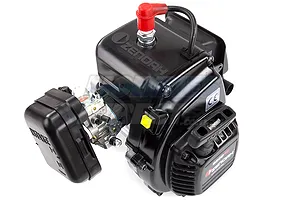

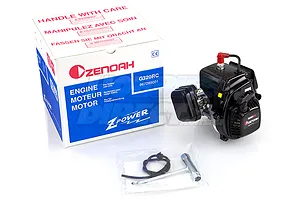

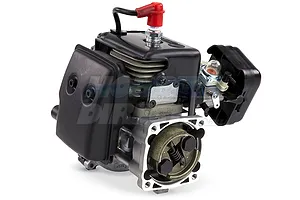

Zenoah G320RC 32cc 4 Bolt 2 Stroke Engine /w Walbro WT-1107 Carburettor
Zenoah G320RC 32cc 4 Bolt 2 Stroke Engine /w Walbro WT-1107 Carburettor
This is the largest and most powerful petrol engine you can fit in an HPI Baja (5B, 5T and 5SC), Losi 5IVE-T, 5IVE-B, and DBXL without serious modifications. Released in 2014, the 31.8cc G320RC motor from Zenoah is their most powerful standard form factor motor to date. The G320RC peaks to a massive 3.22hp of power output at a crazy 13,000 RPM.
- Displacement: 31.8cc
- Horse Power: 3.22hp
- Clutch Engagement: 6000 RPM (STD Spring)
- Carburetor: Walbro WT-1107
- Spark Plug: NGK CMR7H
- Recommended petrol: 95+ Octane
- Recommended fuel/oil ratio: 25:1
- Length: 167mm
- Width: 216mm
- Height: 197mm
- Weight: 2.30kg
For most RC models you will need to install the standard air-filter and exhaust that came with your RC car.
Losi 5IVE-T | Losi DBXL: We recommend purchasing a shorter clutch mount for a correct installation (the stock Zenoah clutch mount is 2mm too long). You will need to use your flywheel cover from your old (stock) engine for correct installation. Everything else should bolt up nicely.
TLR (Losi) 5IVE-B: We recommend purchasing a shorter clutch mount for a correct installation (the stock Zenoah clutch mount is 2mm too long). As you cannot use the stock flywheel cover (as it doesn't come with one), you will need to purchase a Rovan flywheel cover separately for a correct installation. Everything else should bolt up nicely.

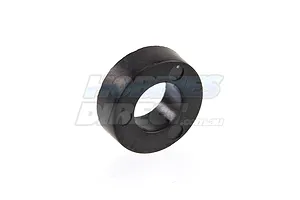

HPI Baja 5B | HPI Baja 5T | HPI Baja 5SC: We recommend purchasing a shorter spacer (alternatives: HPI-102164, HPI-87458 & HPI-87571) for a correct installation (the Zenoah clutch mount's mounting stud is too long). Everything else should bolt up nicely.
Engine Horse Power Comparison:
- Zenoah G320 (32cc) — 3.22hp
- Zenoah G290 (29cc) — 2.68hp
- Zenoah G270 (26cc) — 2.49hp
- CY/HPI/Losi 26cc — 2.40hp
- CY/HPI/Losi 23cc — 2.00hp

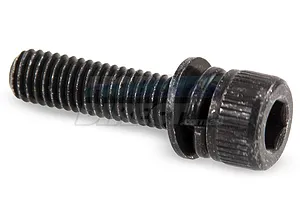

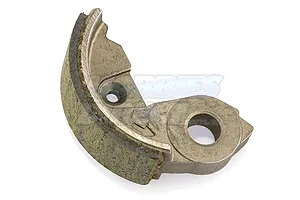

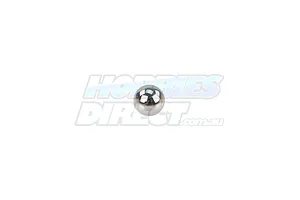

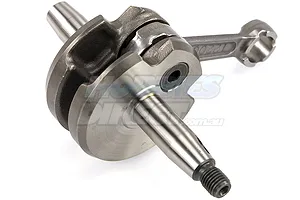

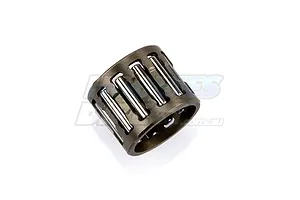

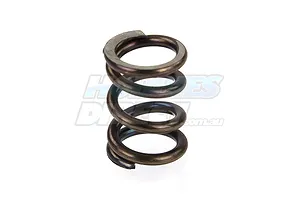

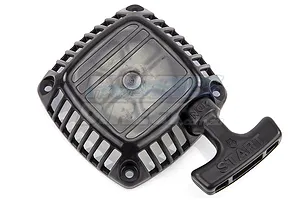

Parts
