Name: Castle Creations 1721 2400Kv 8S Sensored Brushless Motor
Brand: Castle Creations
SKU: CAS-060-0091-00
Price: 468.46 AUD
Availability: Discontinued
Rating: 5 (1 reviews)

Overview

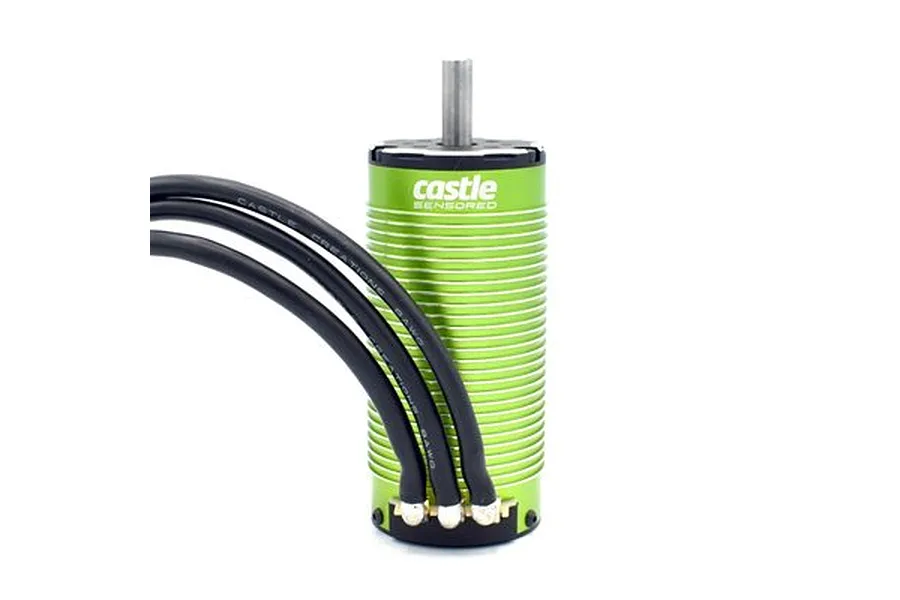

Ideal for running up to 8S LiPo in 1:8 and 1:7 scale vehicles, the mechanical design boasts a stainless-steel sleeve to reinforce and strengthen the rotor for high RPM operation. Coupled with a massive 8mm stainless steel motor shaft, 8.0mm bullets and high strand, low resistance, silicone coated 8 gauge copper wire, the 1721-2400Kv will deliver massive power and maximum top end speed.

Note

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommends applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to the product documentation for running and maintaining motors in wet environments.

Features

Runs in SmartSense™ Sensored mode or an ultra-efficient Sensorless mode
Maximum 90,000 RPM
LiPo voltage range of 4S to 8S

In the box

1x 1721 2400Kv 8S Sensored Brushless Motor
1x Sensor Cable

Specifications

Motor

Type	Brushless
KVRPM (Revolutions Per Minute) per Volt	2400KV
LengthLength of the motor can in mm	101.2mm
DiameterDiameter of the motor can	46mm
Shaft Diameter	8mm
