Castle Creations

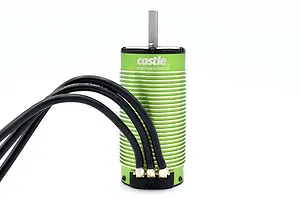

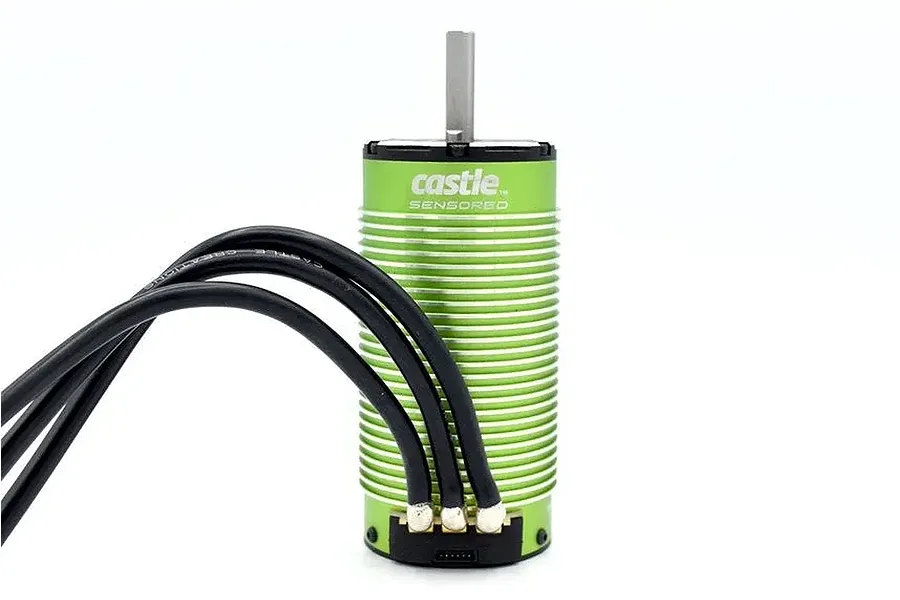

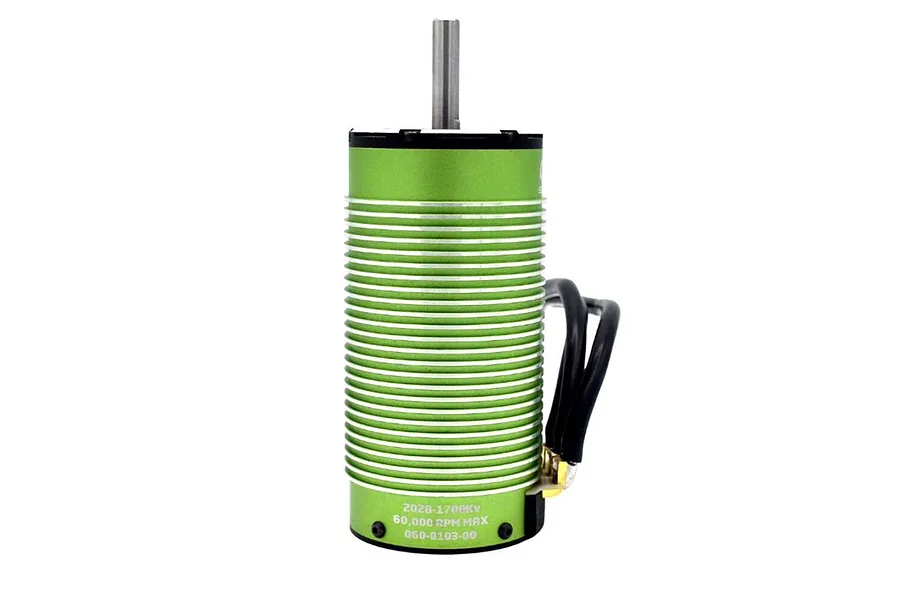

Castle Creations 2028-1700kv 4 Pole Sensored Brushless Motor

  • Brushless

Part no. 060-0103-00

Discontinued5.0
1 review
1 / 2
1 / 2

This product has been discontinued.

Contact us

No longer made. In stock now: similar

Overview

Ideal for running up to 8S LiPo in 1:8 and 1:7 scale vehicles. The mechanical design boasts a stainless-steel sleeve to reinforce and strengthen the rotor for high RPM operation. Coupled with a massive 8mm stainless steel motor shaft, 8.0mm bullets and high strand, low resistance, silicone coated 8 gauge copper wire, the 2028-1700Kv Motor will deliver massive power and maximum top end speed.

Note

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.

Features

  • Runs in SmartSense Sensored mode or an ultra-efficient Sensorless mode
  • Maximum 60,000 RPM
  • LiPo voltage range of 4S to 8S

In the box

  • 1x 2028 1700Kv 8S Sensored Brushless Motor
  • 1x Sensor Cable

Specifications

Motor

TypeBrushless
KVRPM (Revolutions Per Minute) per Volt1700KV
LengthLength of the motor can in mm112.7mm
DiameterDiameter of the motor can56.3mm
Shaft Diameter8mm

Reviews (1)

5.0

Based on 1 review

  • 5 stars1
  • 4 stars0
  • 3 stars0
  • 2 stars0
  • 1 star0

  • Fabian W

    10 July 2025

    60,000 rpm screams Its Beautiful

Questions & Answers

Have a question, or an answer? Our team and other owners both reply.

No questions yet. Ask the first one.
