FlySky FS-I6S 2.4Ghz 10ch Radio w/ FS-IA6B Receiver

Part no. FS-I6S

2 in stockWrite a review
1 / 5
1 / 5

$150.95

or 4 fortnightly payments of $37.74 with afterpay

FlySky FS-i6S 10ch 2.4GHz AFHDS touchscreen radio transmitter with FS-iA6B receiver — suits drones, planes and gliders.

  • 2.4GHz AFHDS Digital Proportional RC system — 10 channels (PPM) or 6 channels (PWM)
  • Monochrome back-lit LCD touchscreen for programming in sunlight or at night
  • Two internal omnidirectional high gain antennas built inside the frame
  • Programmable switches, scroll wheels, and buttons for flight modes and camera gimbals
  • Mini USB port for PC updates and simulator connection

Pay later with afterpay zip PayPal

  • 2 in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

The FS-i6S uses the solid and reliable 2.4GHz Automatic Frequency Hopping Digital System (AFHDS) spread spectrum technology. It is a superb budget radio for both new and experienced pilots and is designed with multi-rotor / drone flying in mind. It can also be used for planes / gliders.

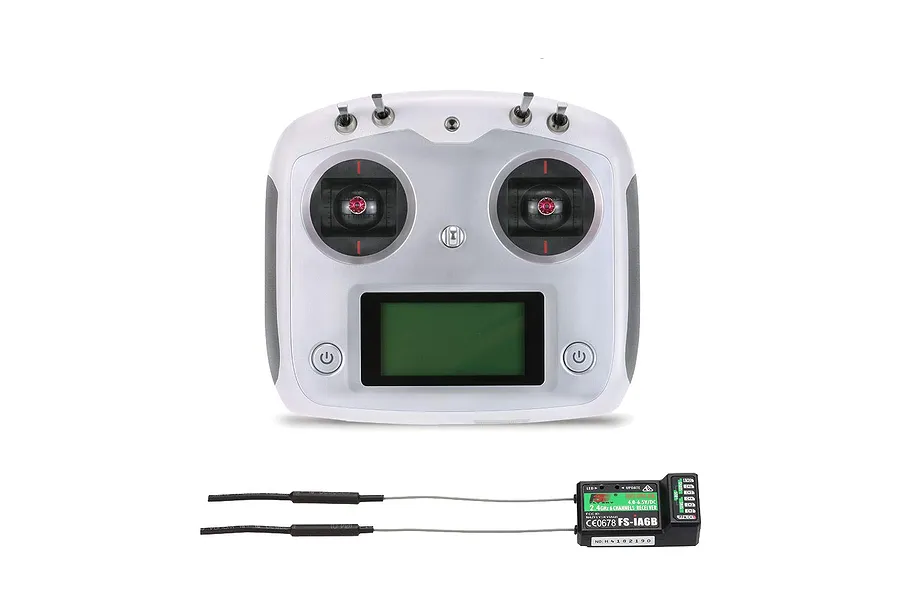

The FlySky FS-i6S is a 6 channel (PWM) or a 10 channel (PPM) 2.4GHz AFHDS Digital Proportional RC system and comes complete with 1 FS-iA6B 6 channel receiver.

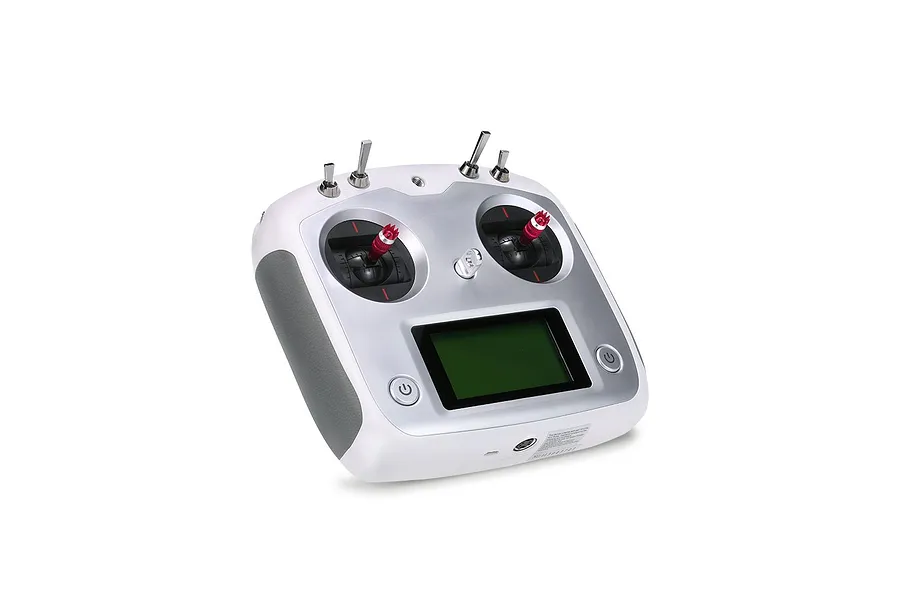

The new look design comes with some exciting new features. This radio incorporates a monochrome back-lit LCD touchscreen making it easy to program and make changes in sunlight or at night. There are two internal dual omnidirectional high gain antennas (for more reliability) built inside the frame so they can't be damaged in transit. To help control your aircraft there are lots of programmable switches, buttons and scroll wheels. Making them great for setting up flight modes and the scroll wheels could be used for controlling camera gimbals.

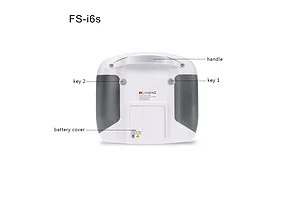

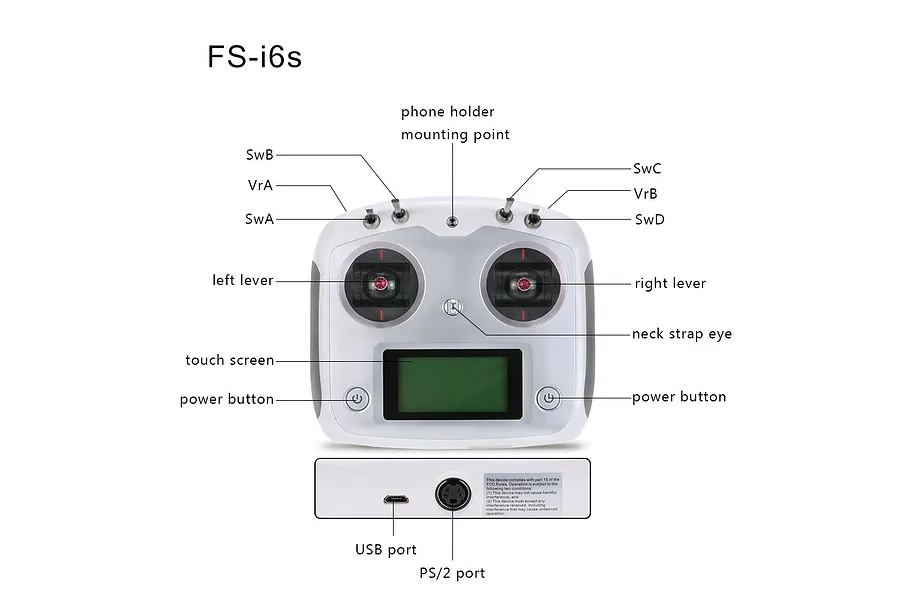

The ergonomically designed case makes for easy use of all controls. All switches and scroll wheels are in easy reach and the adjustable length sticks can be set for comfortable use. There is a loop for attaching a neck strap and a phone/monitor holder mounting point. There is even a mini USB port for easy connection to your PC for updates or for connecting (via USB) to your favourite simulator programs.

Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the system's operation. Each transmitter hops between 16 channels in order to reduce interference from other transmitters.

With all the features the FS-i6S offers it is one of the best radios available, dollar for dollar.

Features

  • Entry level 6 channel 2.4GHz radio with telemetry capability
  • i10 style customized Gimbals with dual bearing supports
  • Softer grips for long use times
  • 2 and 3 position switches, momentary switches and self-centering proportional wheel switches (2 of each)
  • Easy to use touch screen to setup and program the radio
  • SBUS and IBUS/PPM support
  • 5 Model Memory
  • Auto trim functions for planes and gliders
  • USB and Trainer ports
  • Backlit LCD Screen displays real-time transmitter and receiver voltage
  • 4 Stick Mode Selection
  • Mode 1 and 2 without sprung center stick
  • Digital flip flop "Quick Touch" buttons on the back
  • Optional telemetry receivers and sensors available separately
  • Future firmware updates (Long range firmware)

In the box

  • FS-i6S Transmitter
  • FS-iA6B Receiver
  • USB Cable
  • Bind Plug
  • User Manual

Specifications

FlySky FS-i6S Transmitter Specs:
Channels10 (PPM) or 6 (PWM)
RF range2.408 ~ 2.475 GHz
Bandwidth500 KHz
RF channel135
RF powerLess than 20 dBm
2.4GHz systemAFHDS 2A
Modulation typeGFSK
Stick resolution4096
Low voltage alarmYes (lower than 4.2V)
DSC portMicro USB / PPM
Power input4.2V - 6.0V
Antenna length26mm x 2
Size (Length x Width x Height)179 x 81 x 161mm
Weight410g
CertificateCE0678, FCC ID: N4ZI6S00, RCM

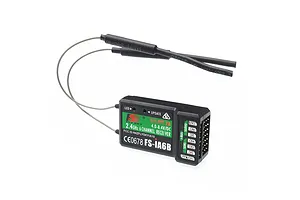

FS-iA6B Receiver Specs:
Channels6
RF range2.408 ~ 2.475 GHz
RF channel135
RX sensitivity-105dBm
2.4GHz systemAFHDS 2A
Modulation typeGFSK
Power input4.0V - 6.5V DC
Antenna length26mm x 2
Size (Length x Width x Height)47 x 26.2 x 15mm
Weight14.9g
CertificateCE0678, FCC, RCM
i-Bus portYes
Data acquisition portYes

Transmitter

Channels10Ch
LayoutStick
ModeN/A
Operating Frequency2.4Ghz
Telemetry CapableYes
Programmable FailsafeNo
