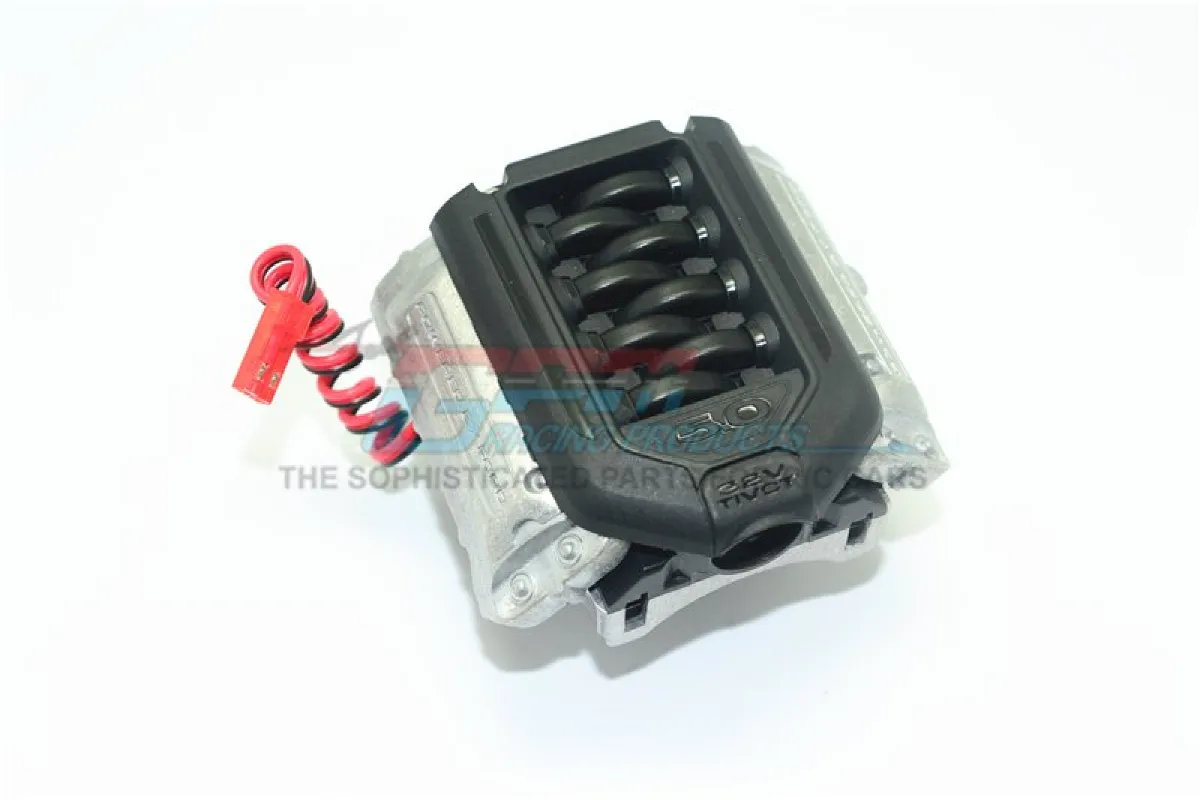

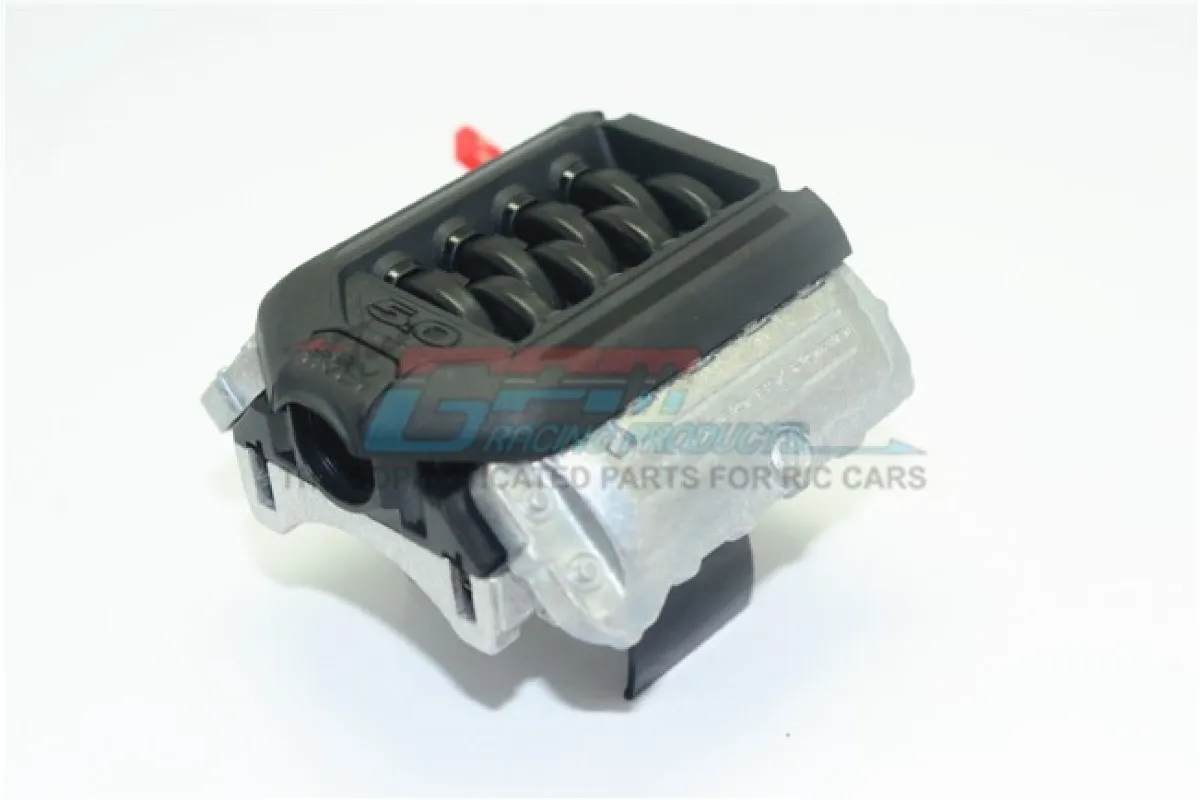

GPM 1/10 Scale TRX-4 Defender V8 5.0L Engine w/ Heat Sink & Cooling Fan (3S Version)

Product major function & usage:

A good decoration part to cool down the motor

Major advantages of upgrading to this product:

1. Engine radiator, V8 engine appearance with air intake design.

2. Temperature control with 13000 rpm high speed dual fan to dissipate heat for the motor.

3. The built-in fan effectively prevents destruction by projects on the road such as rocks. The radiator is clamped directly on the motor.

Other special notes and comments:

Suitable for most 1:10 RC models with a 36mm diameter motor.

Material: The main body is made of aluminum and the upper mask is made of Polyurethane.

Cooling fan: 3S version 11.1v, rated 13000 rpm.

Introduction to the thermostat: The operating temperature is 50 °C ± 5 °C, the reset temperature is 35 °C ± 5 °C. The fan will not start after power-on, it will start after the motor is warmed up to control the operating temperature.

Note: 1. Select 2S or 3S version according to the specific power consumption. Be aware to distinguish between positive and negative when wiring. Default power: JST plug.

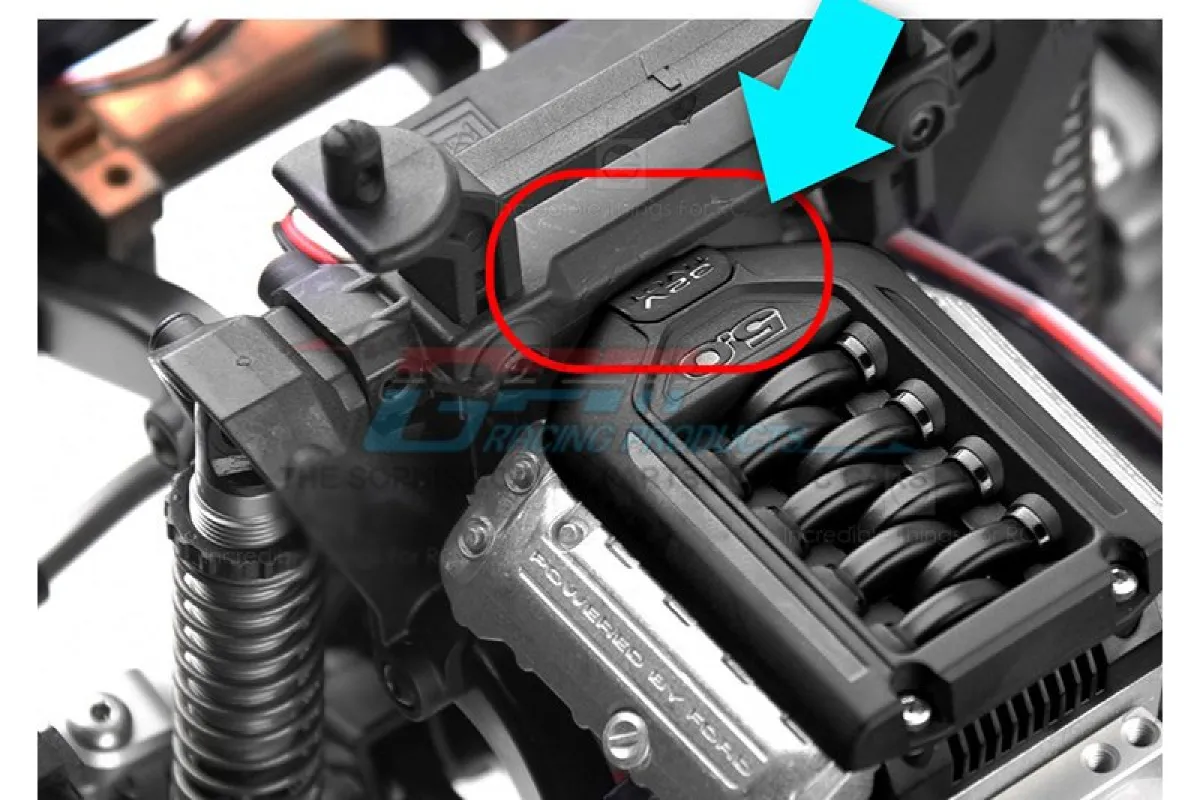

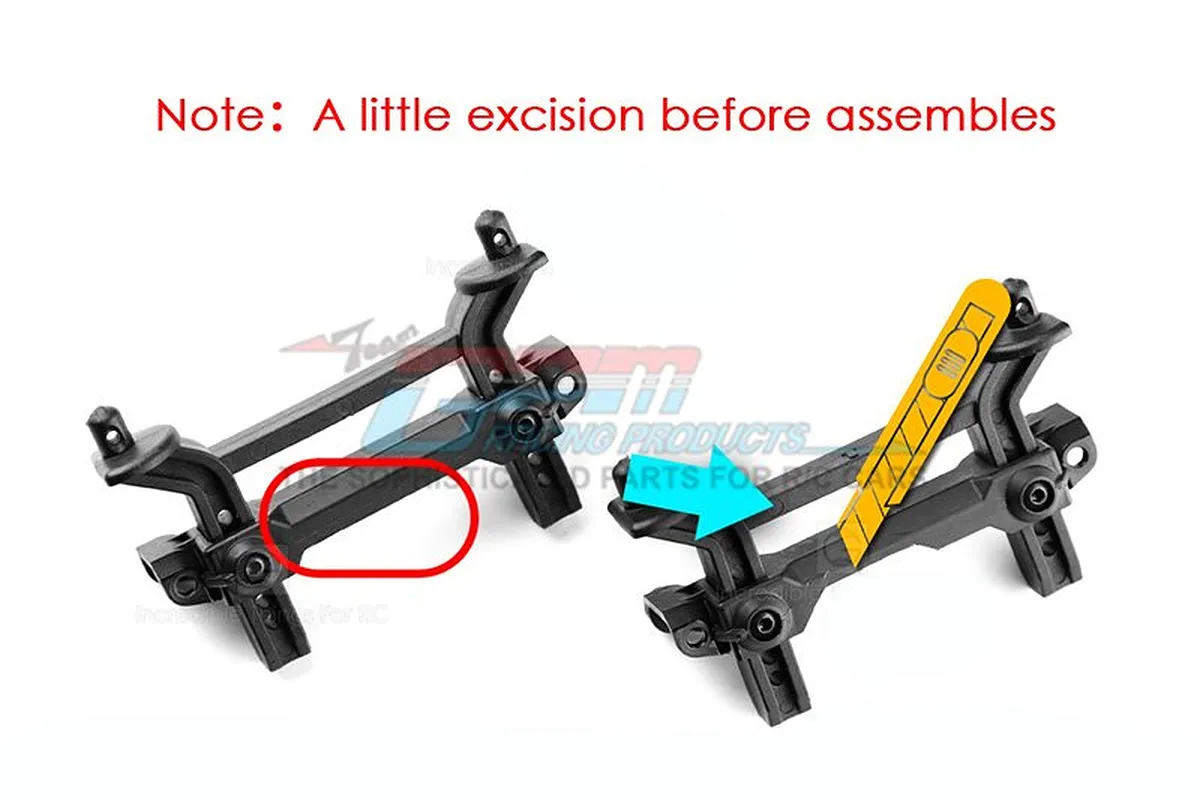

Note 2. The original body mount posts must be modified when installing on TRAXXAS TRX-4 (refer to diagram).
