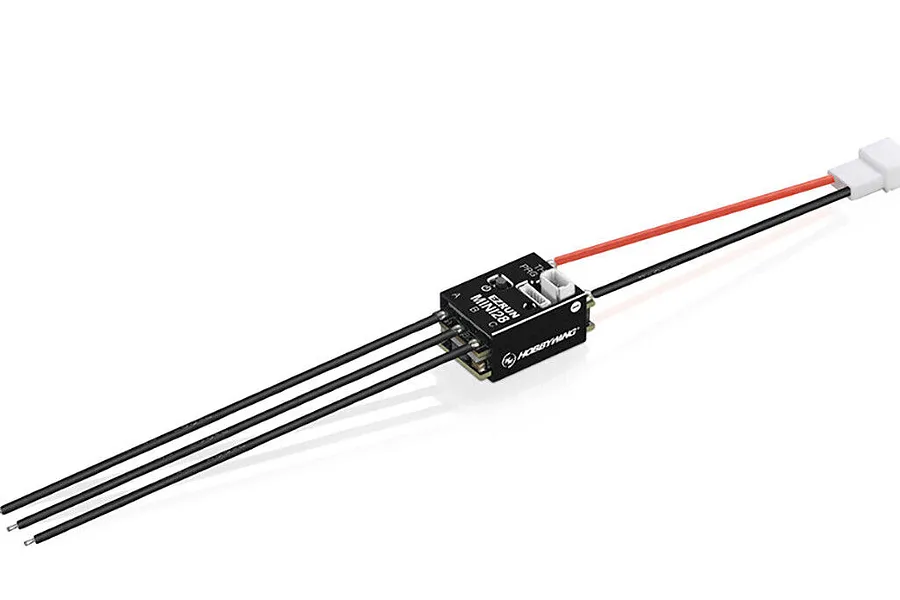

Hobbywing EzRun 1/28 Mini28 30A Brushless ESC
Brand: Hobbywing
|
SKU: 30101300
Description
Overview
The Hobbywing EzRun 1/28 Mini28 30A Brushless ESC is a compact and lightweight speed controller designed for 1/28 and 1/27 scale RC vehicles. Featuring sensored technology for smooth throttle response and programmable options for fine-tuning, this ESC is ideal for both racing and drifting enthusiasts.
Features
- Compact and lightweight design
- Sensored technology for smooth throttle response
- Supports sensored and sensorless brushless motors
- Compatible with 2S LiPo batteries (7.4V)
- Programmable for custom tuning
- Built-in 6V/7.4V @ 3.5A BEC
- Ideal for 1/28 and 1/27 scale vehicles
- Genuine Hobbywing product
Specifications
- Length: 22.7mm (0.89 in)
- Width: 14.2mm (0.56 in)
- Height: 11.8mm (0.46 in)
- Weight: 5g (0.18 oz)
- Continuous/Peak Current: 30A/80A
- Waterproof: No
- Motor Limit: 1626 Size Motors
- BEC: 6V/7.4V @ 3.5A
- Voltage Limit: 2S LiPo (7.4V)
- Programmable: Yes
- Scale: 1/28, 1/27
- Sensored: Yes
Included items
| Description | QTY |
|---|---|
| Hobbywing EzRun 1/28 Mini28 30A Brushless ESC | 1 |
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| Burst Amps: | 80 |
| For Motor Type: | Brushless Sensored |
| Max Voltage: | 7.4 |
| Continuous Amps: | 30 |
| Motor Connectors: | Bare Wires |
| Battery Connector: | Bare Wires |
| LiPo Cut-off: | Yes |
| Programmable: | Yes |
| Waterproof Design: | No |
| Cooling Method: | Air |
| BEC Voltage: | 6v,7.4v |
| Dual Motor: | No |
