Hobbywing EzRun Max5 G2 250A Waterproof Sensored Brushless ESC

  • Brushless

Part no. 30104200

1 in stock5.0
1 review
1 / 3
1 / 3

$380.15

or 4 fortnightly payments of $95.04 with afterpay

250A waterproof sensored brushless ESC with 8A/25A BEC, turbo timing, and full protection suite for demanding RC applications.

  • 250A waterproof sensored brushless ESC
  • 8A continuous / 25A instant BEC with 6V/7.4V/8.4V servo voltage switching
  • Turbo timing for maximum performance with EZRUN 56118SD G2 motor
  • Full suite of protection: low-voltage, overheat, signal-loss, current
  • Data logging via HW LINK app with OTA Bluetooth module (optional)
Select Male Connector
Select Wiring Configuration

Want more than 1? and we'll email you when they're here.

Pay later with afterpay zip PayPal

  • 1 in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

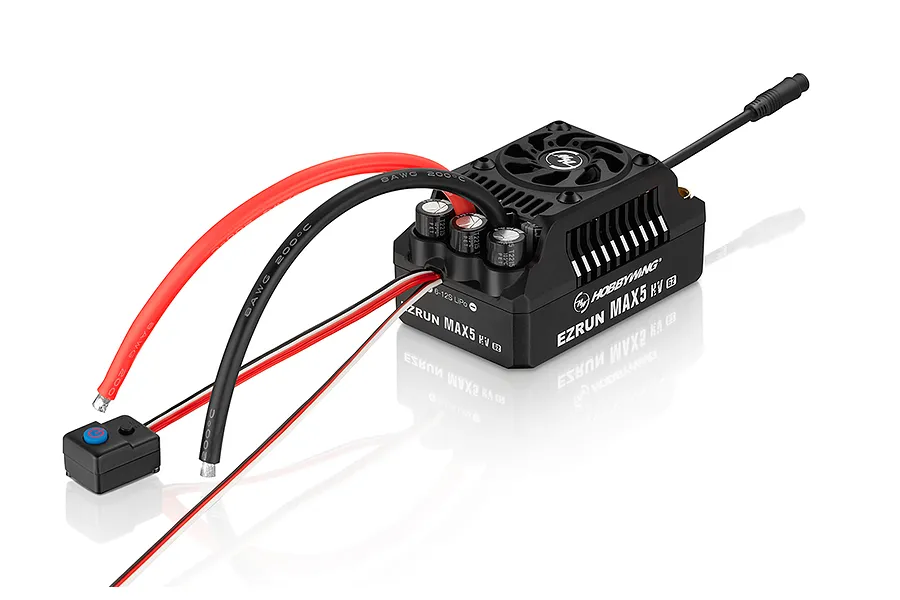

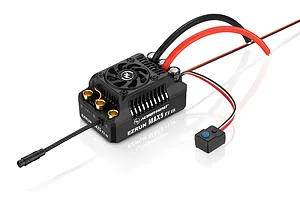

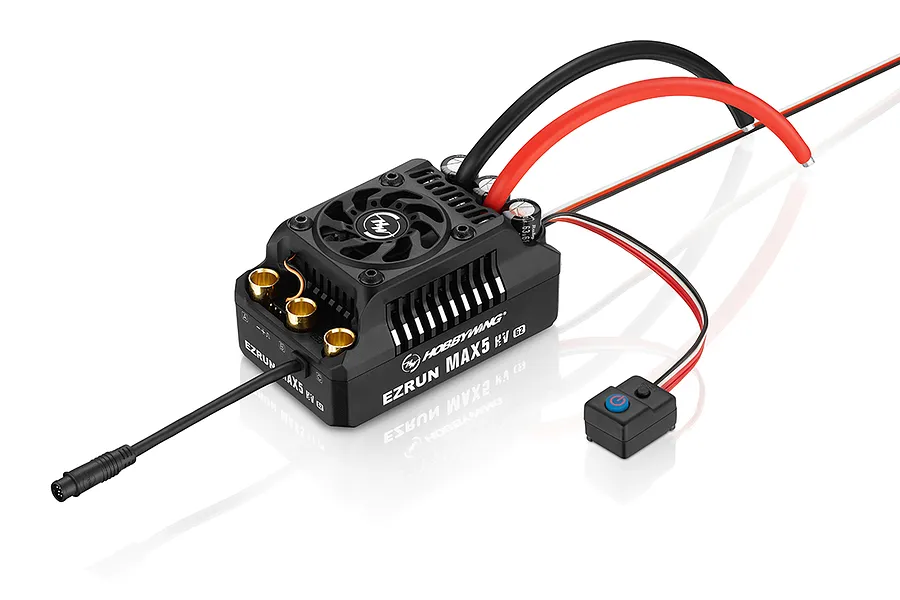

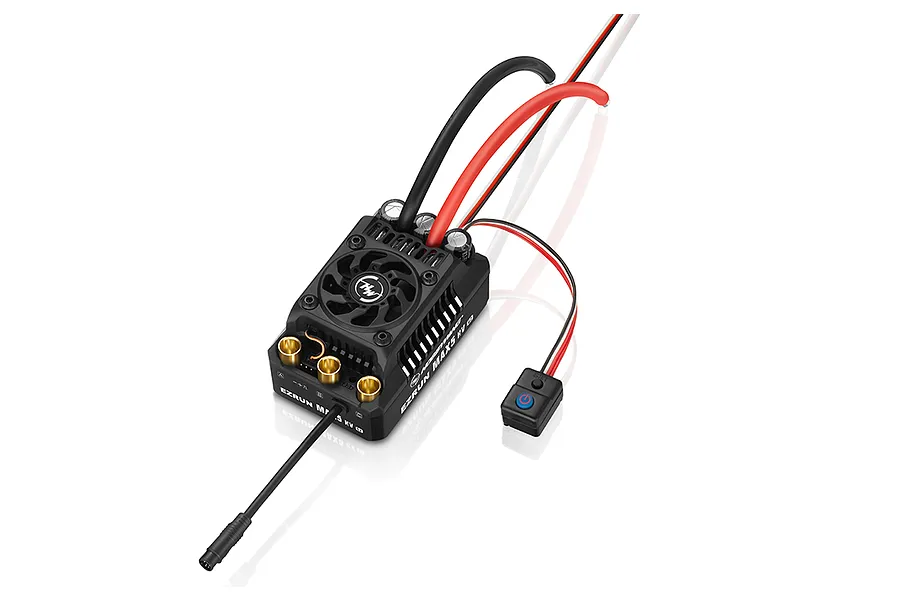

The Hobbywing EzRun Max5 G2 is a 250A waterproof sensored brushless ESC built for the toughest conditions. Its unique waterproofing process and innovative design deliver unparalleled resistance to water, dust, sediment, ice, and snow. The built-in ultra-powerful switch-mode BEC provides 8A continuous and 25A instant current, supporting 6V/7.4V/8.4V switching for a wide range of servos. Turbo timing and exceptional timing response make it the ideal partner for compatible motors such as the EZRUN 56118SD G2 Sensored Brushless Motor. Multiple protection functions — including low-voltage, overheat, signal-loss, and current protection — keep your system safe. Parameters can be set via LED program card, LCD G2 program box, or the optional OTA programmer, and running data can be accessed through the HW LINK app with an OTA Bluetooth module.

Note

Important: Brushless motors and ESCs produce high torque at any RPM. Using too-tall gearing, or a vehicle that is too large or heavy, can result in damage or product failure. Consult your manual and select gearing suitable for the vehicle and terrain — damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor ESC and motor temperatures closely after modifying your system.

Features

  • Unparalleled waterproofing for reliable operation in any climate
  • Ultra-powerful BEC supports 8A continuous and 25A instant current
  • Versatile servo compatibility with 6V/7.4V/8.4V switching
  • Turbo timing setting for exceptional performance
  • Multiple protection functions ensure safety in challenging conditions
  • Easy parameter setting with LED program card and LCD G2 program box
  • Access running data via HW LINK app and OTA Bluetooth
  • Firmware upgrades supported (LCD G2 program box or OTA Programmer required)
  • Innovative design resists dust, sediment, ice, and snow
  • Built to withstand harsh elements, maintaining reliable performance

In the box

  • 1x Ezrun MAX5 G2 ESC
  • 3x 10 AWG 200C Black Wires for a Brushless Motor
  • 1x Extra set of 8 AWG 200C RED Power Wire
  • 1x Extra set of 10 AWG 200C Black Power Wire
  • 1x Double Side Tape
  • 2x Heat Shrink Tube
  • 1x User's Manual
  • 1x HOBBYWING Decal

Specifications

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage44.4V
Waterproof DesignYes
Continuous Amps250A
Motor Connectors8.0mm Bullet
Battery ConnectorBare Wires
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableNo
Cooling MethodFan
BEC Voltage6.4V, 8.4V
Dual MotorNo
