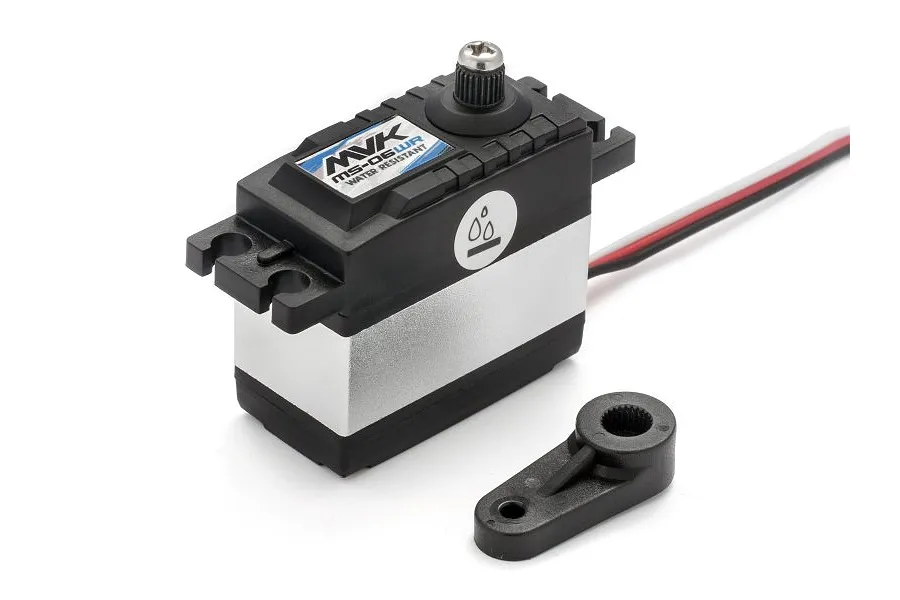

Maverick MS-06WR Standard 6kg 6v Servo w/ Horn

Brand: Maverick | SKU: 150166

sold out

write a review

$37.33

Add to Wishlist

Loading compatibility information...

Description

This water-resistant servo is ideal for bashers and racers looking for a tough and durable servo that can be used in wet conditions (e.g. rain, snow, puddles).

Features

Operating Voltage: 6v
Speed: 0.22 sec/60 degrees
Torque: 5.5kg-cm
Servo Spline: 25T
Weight 45g

Included items

Description	QTY
MS-06WR Standard 6kg 6v Servo Servo w/ Horn	1

&nbspServos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Maverick MS-06WR Standard 6kg 6v Servo w/ Horn Specifications

Total Height (A) = 42mm
Body Width (B) = 40mm
Below Mount (C) = 27mm
Above Mount (D) = 15mm
Total Length (E) = 55mm
Total Width (F) = 20mm

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.

Specifications

Servo

Height (A): 42mm
Body Length (B): 40mm
Bottom to Under Mount (C): 27mm
Top to Under Mount (D): 15mm
Length (E): 55mm
Width (F): 20mm
Size Conventionally sized servo names: Standard
Gear Material: Plastic
Waterproof Casing: Splash Proof
Servo Spline Count: 25Tooth
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 5.5
6V Sec/60 Degrees Seconds per 60 degrees of rotation: .22
Signal Type: Digital
