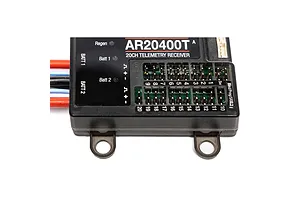

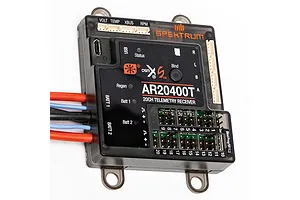

Spektrum AR20400T 2.4Ghz 20ch PowerSafe Telemetry Receiver Set

Brand: Spektrum | SKU: SPMAR20400T
1 in stock

$696.13

Description

The Spektrum™ AR20400T PowerSafe™ receiver is a 20-channel receiver with full-range telemetry. It's designed for models with high-current loads, featuring a robust power bus and dual battery input leads. This eliminates the need for a separate power distribution system.

If you have a DSMX®/DSM2® transmitter capable of 11ms frame rates, the AR20400T will deliver lightning-fast input-to-output response that is perfect for high-performance applications such as aggressive 3D , IMAC, and Turbine airplanes. Each receiver includes 4 SRXL2 remote receivers that take full advantage of Spektrum MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems, helping insure a solid connection between you and your aircraft. As an added measure of safety, the Spektrum designed the AR20400T receiver with a proprietary soft switch. Allowing servo current to be routed around the switch, so, should the switch fail for any reason, power to the system will not be interrupted.

Key Features

Patented PowerSafe™ Redundancy System

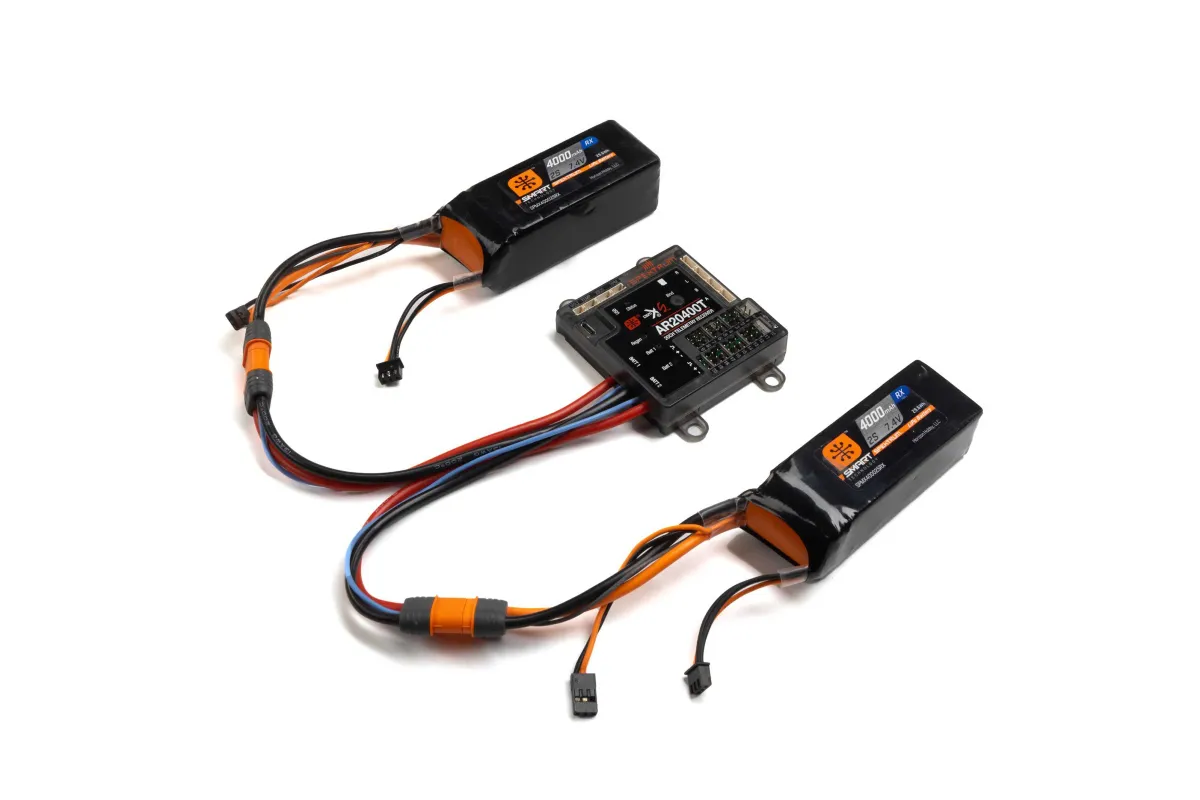

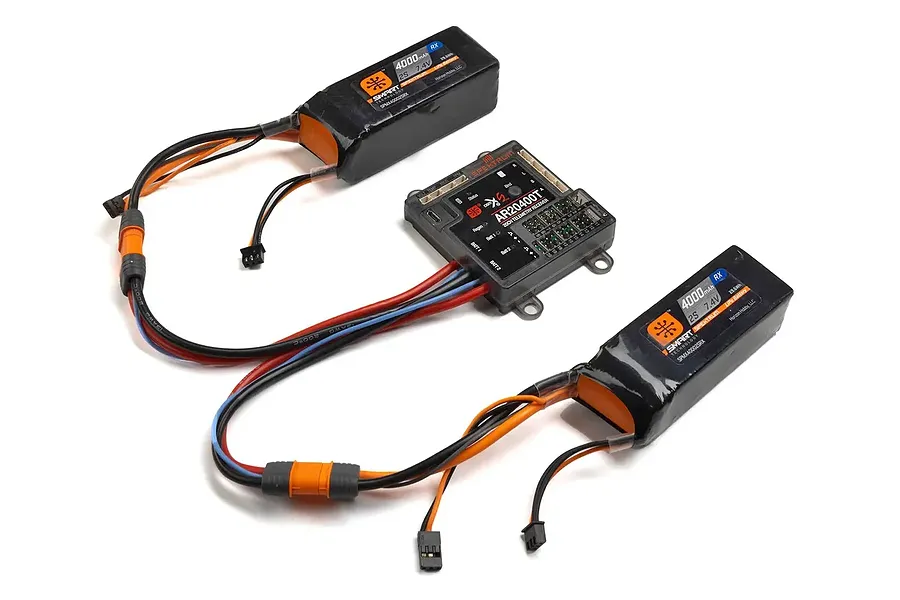

The Spektrum™ AR20400T is the ultimate solution for powering high-current draw radio systems. In aircraft with multiple high-current draw servos (e.g. giant-scale aircraft, jets, etc.), PowerSafe redundancy expertly manages power between both connected receiver batteries with true dual battery redundancy. Each battery is isolated and if one fails/shorts the other seamlessly takes over.

Innovative Battery Capacity Monitor

The PowerSafe receivers feature dual battery capacity monitoring through telemetry when used with Spektrum AirWare™ transmitters. Activate the Auto Config function on the telemetry page in your transmitter to display the capacity consumed by the receiver. The capacity used is stored flight to flight and adds until reset. The capacity can be automatically reset when the battery is charged, allowing easy battery capacity monitoring.

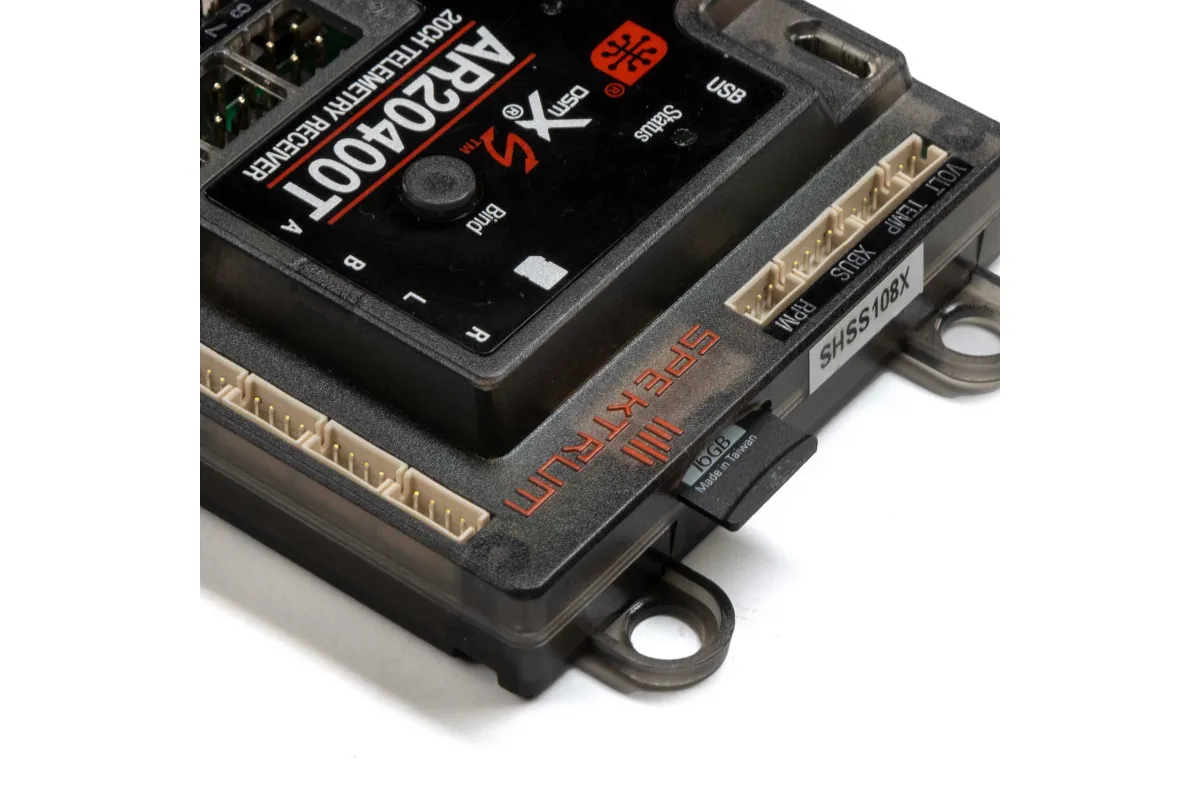

Integrated “Black Box” Telemetry Logging

When a micro SD card is inserted into the receiver, during operation, flight information will be logged onto a file on the card including flight log data, battery status and other telemetry data stored over time. If not deleted, older data logs recorded will be deleted, keeping the most recent logs. This can be a handy tool to review flight data over time which can be helpful for diagnosis of performance.

Forward Programmable

You can configure the AR20400T receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

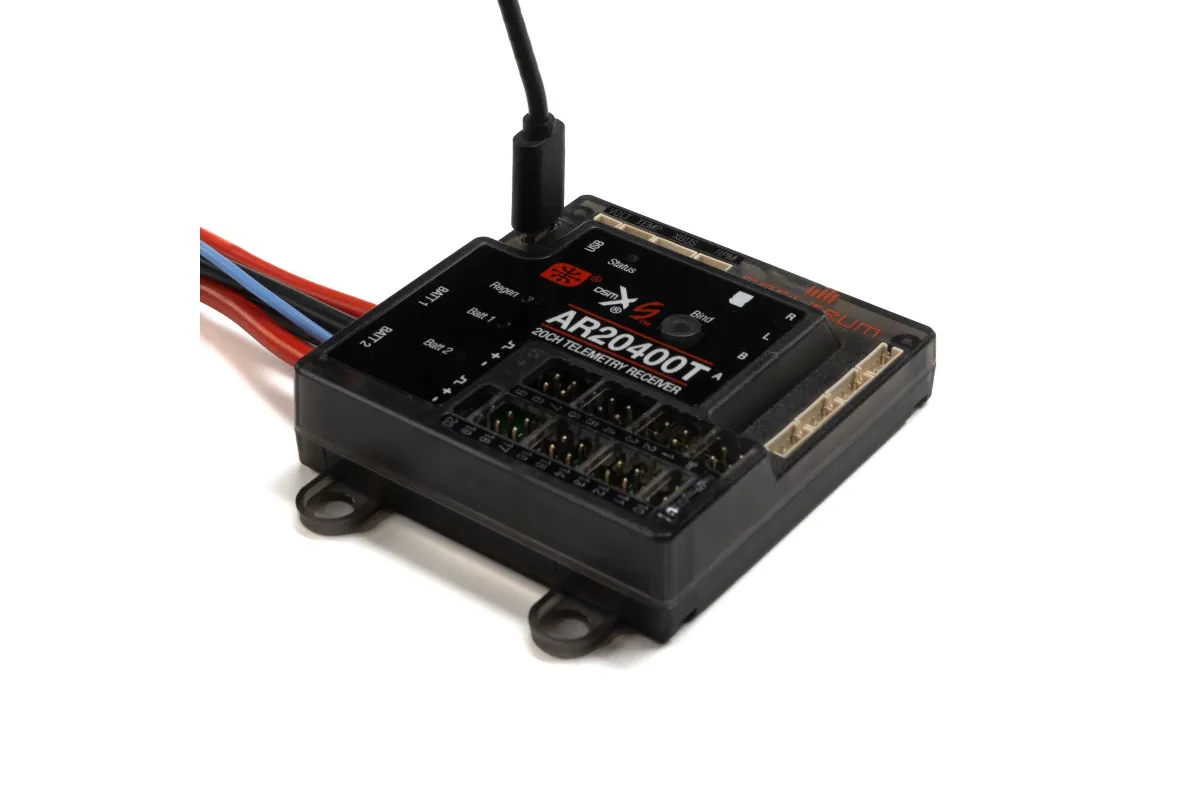

Micro USB Port

A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer Application.

Integrated Barometer

The Spektrum™ AR20400T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

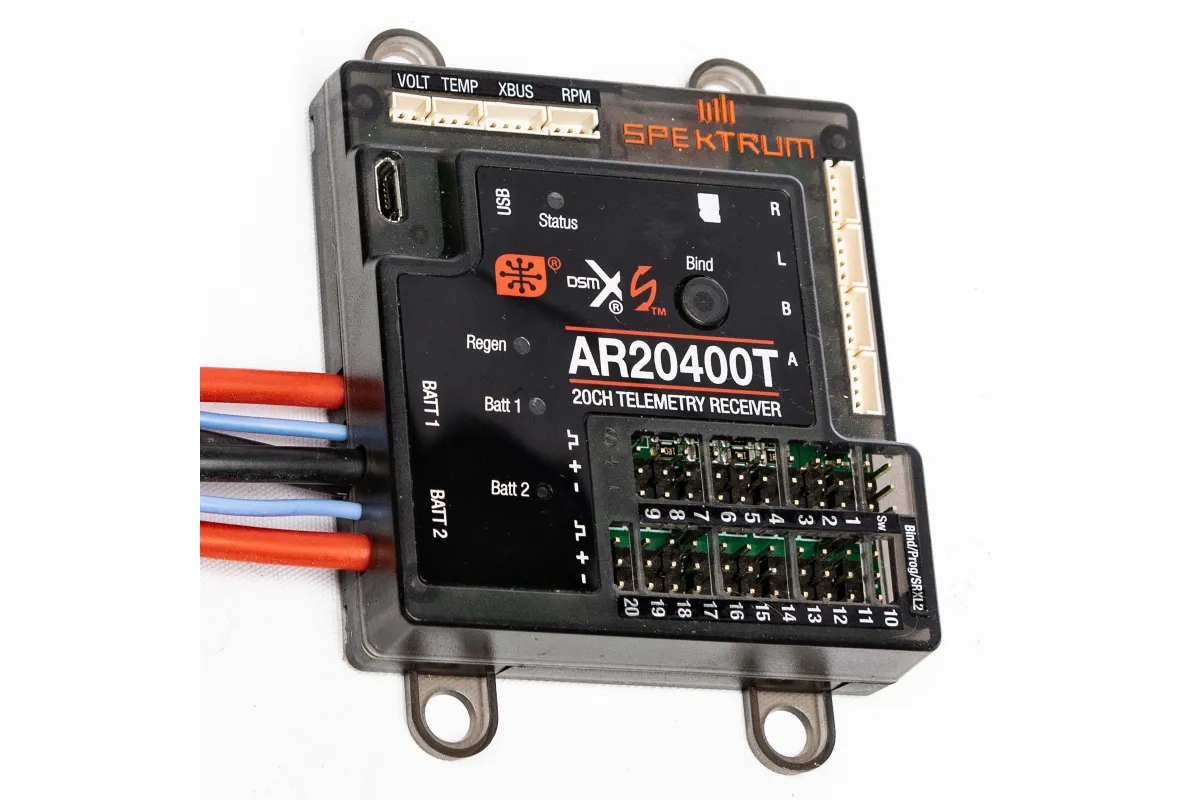

Status LEDs

The Status LED will give information about the status of the receiver and give warning codes if there is an issue or condition detected: Differentiate codes/modes by flashing count.

  • White Blinking/Breathing - Initializing, not ready to fly
  • Red - Failure, failure where you can't fly. Check power or RF.
  • Two blinks - 3S Power Detected/Protection engaged
  • One blink - No remote detected in port A or not enough remotes detected, need at least 2 remotes connected and one must be in port A.
  • Solid Blue - Ready (with recording). Ready to fly recording with SD
  • Solid Green - Ready (without recording). Ready to fly, not recording to an SD card.

Expansive Telemetry Options

In addition to the integrated telemetry sensors, the AR20400T supports an expansive list of Spektrum telemetry sensors and 3rd party telemetry accessories. Easily add powerful telemetry data tools to your model such as GPS, Airspeed Sensors, Engine RPM and Turbine ECU telemetry from supported jet turbine controllers.


Features

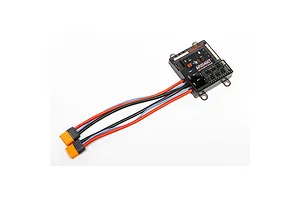

  • Patented PowerSafe™ system with dual 13 AWG battery leads for power-hungry aircraft
  • Programmable with easy failsafe and servo settings adjustment
  • Micro USB port for registration and firmware updates
  • 12V capable for use with 12V servo applications (requires activation)
  • Integrated battery capacity monitor and Black Box telemetry log
  • Status LED, SRXL2 connectivity, and compatibility with Spektrum Smart ESC
  • Receiver pack energy & voltage sensor, full-range telemetry with barometer
  • Included Soft Switch for uninterrupted power in case of switch failure
  • Rubber grommet mounts and minimalistic labeling for clean setups
  • High-speed 11ms frame rates and easy binding options
  • Integrated telemetry with RPM, voltage, temperature sensors, and X-bus ports
  • Compatible with all Spektrum DSM2 and DSMX transmitters
  • Not compatible with AS3000 Stabilization Module or DSM2 AIRMOD JR Module

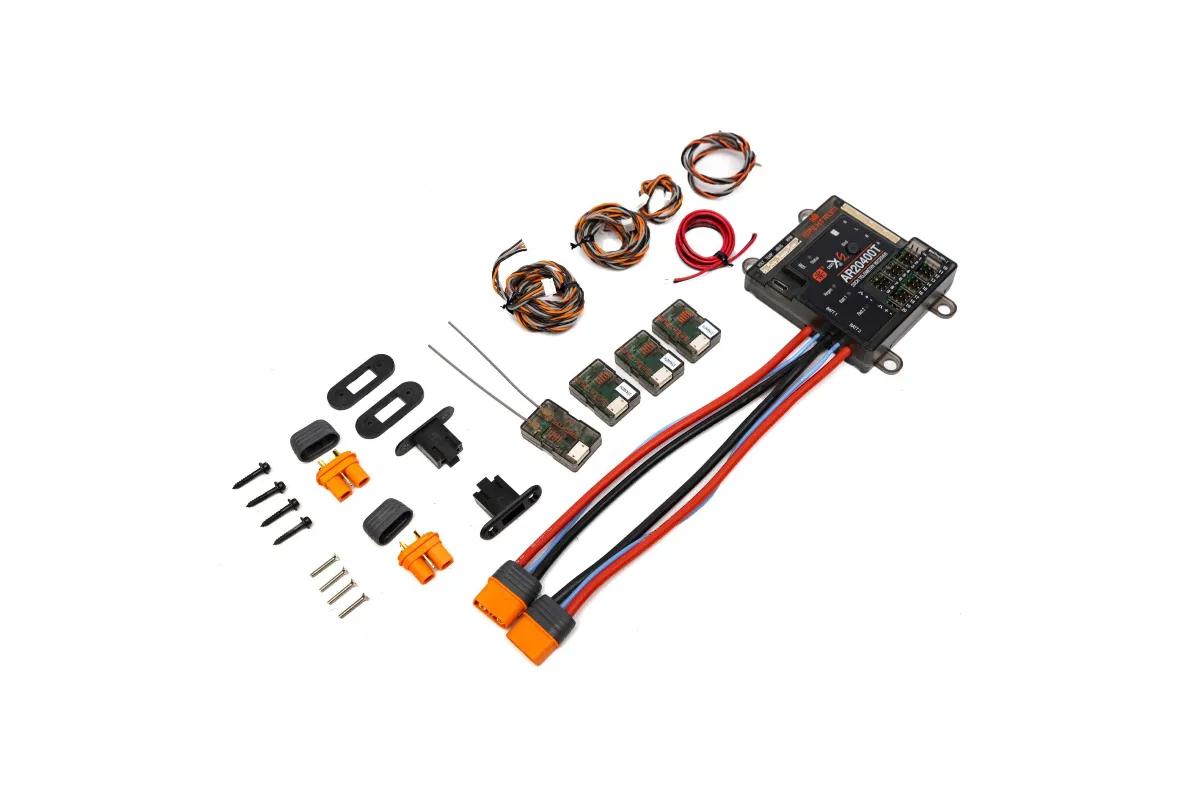

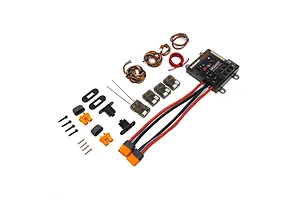

Included items
Description QTY
AR20400T 20 Channel PowerSafe Receiver 1
SPM4651T SRXL2 Remote Serial Telemetry Receiver 1
SPM9747 SRXL2 DSMS Remote Receivers 3
9" SRXL2 Remote Receiver Extension 1
12" SRXL2 Remote Receiver Extension 1
24" SRXL2 Remote Receiver Extension 1
36" SRXL2 Remote Receiver Extension 1
Battery IC3 Connectors 2
Charge Receptacles 2
Aircraft Telemetry Volt Sensor 1
Soft Switch 1
Instruction Manual 1
Specifications
Receiver
Channels: 20
Operating Frequency: 2.4Ghz
Telemetry: Yes
Suited Vehicle Type: Air
Failsafe: Yes
