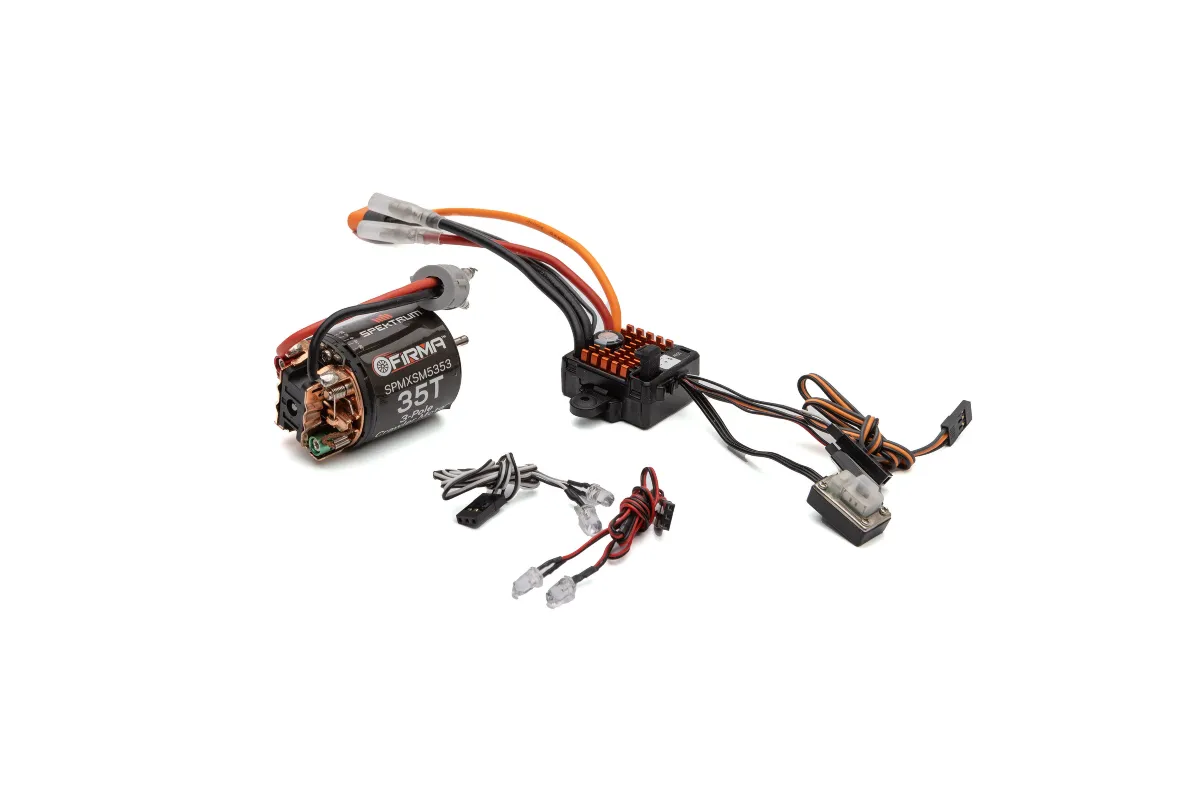

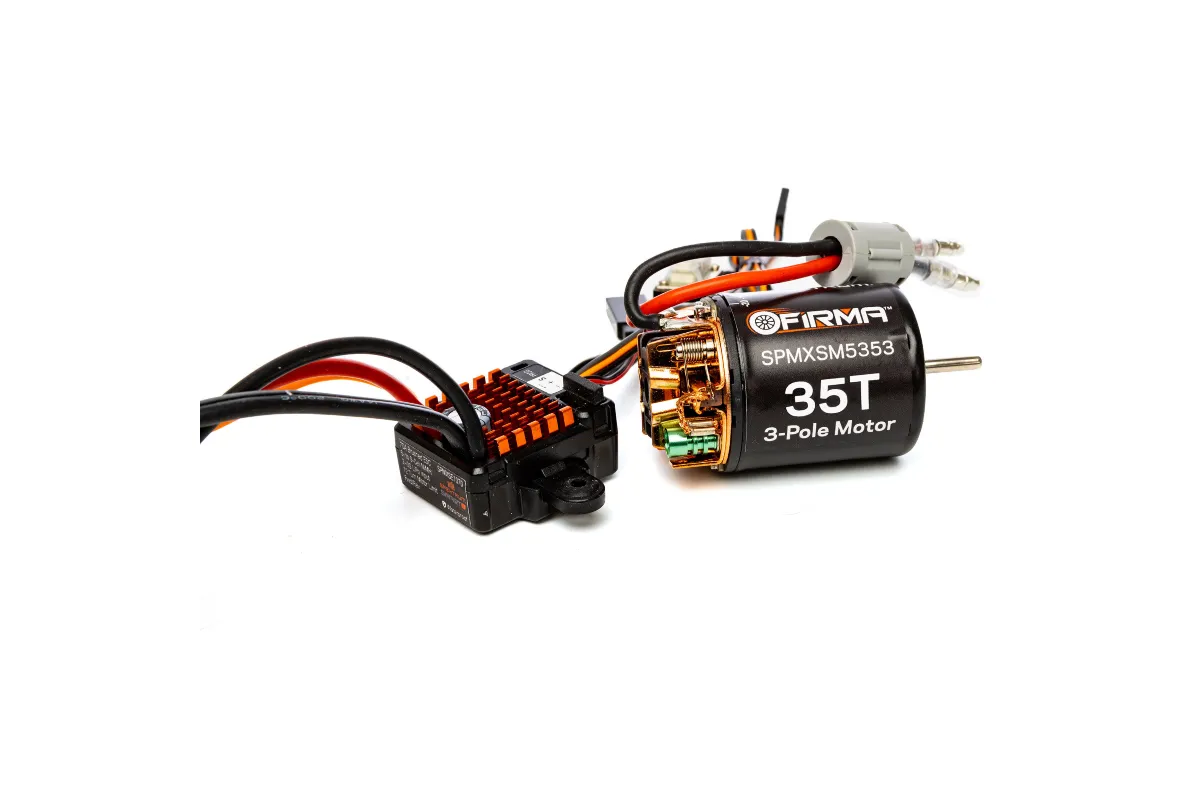

Spektrum Firma 35T 3-Pole Brushed Motor & Smart 70A ESC Combo

Brand: Spektrum | SKU: SPMXSEMC12
1 in stock

$160.53

Description

The Spektrum™ Firma 70 amp Brushed Smart ESC and motor combo is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers and bashers. This ESC and Motor Combo is an excellent choice to complete your 1/10th scale on-road and off-road 2WD racing models running 2S LiPo power.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. You'll be better connected to your vehicle than ever before - Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as motor current, temperature, battery voltage and capacity.

Firma ESCs send data to your compatible transmitter in real time. You're able to adjust settings as needed to boost performance on the go.

Features
  • Full Smart functionality
  • Provides Spektrum Smart battery data, input voltage, esc temperature, esc amperage, RPM, and Text Gen Telemetry data over one wire.
  • Includes Spektrum 35T Rebuildable Brushed Motor - Excellent completion option for 1/10 scale racers running 2S power
  • Integrated LED light power outputs for simple installation without the need of additional receiver ports
  • Includes 2 LED Light Strings (Red and White)
  • 70 Amp continuous power
  • 2S-3S LiPo Compatible
  • Waterproof ESC
  • Easy programming & Updating w/ Smart ESC Programming Box & SmartLink USB Updating and Programmer application
  • Programming from Transmitter via Text Gen Telemetry
  • Over-current, Thermal, Fail-safe & Low-Voltage Cut-off protection
  • Automatic LiPo low-voltage cut-off
  • Aluminium heat sink for high efficiency
  • Adjustable high-power BEC (6V or 7.4V, 4amp)
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Included items
DescriptionQTY
Spektrum Firma 70A Brushed Smart ESC1
Spektrum Firma 35T Rebuildable 3-Pole Brushed Motor1
Product Manual1
Note
  • Please see manual for Waterproof Usage Guidelines.
Specifications

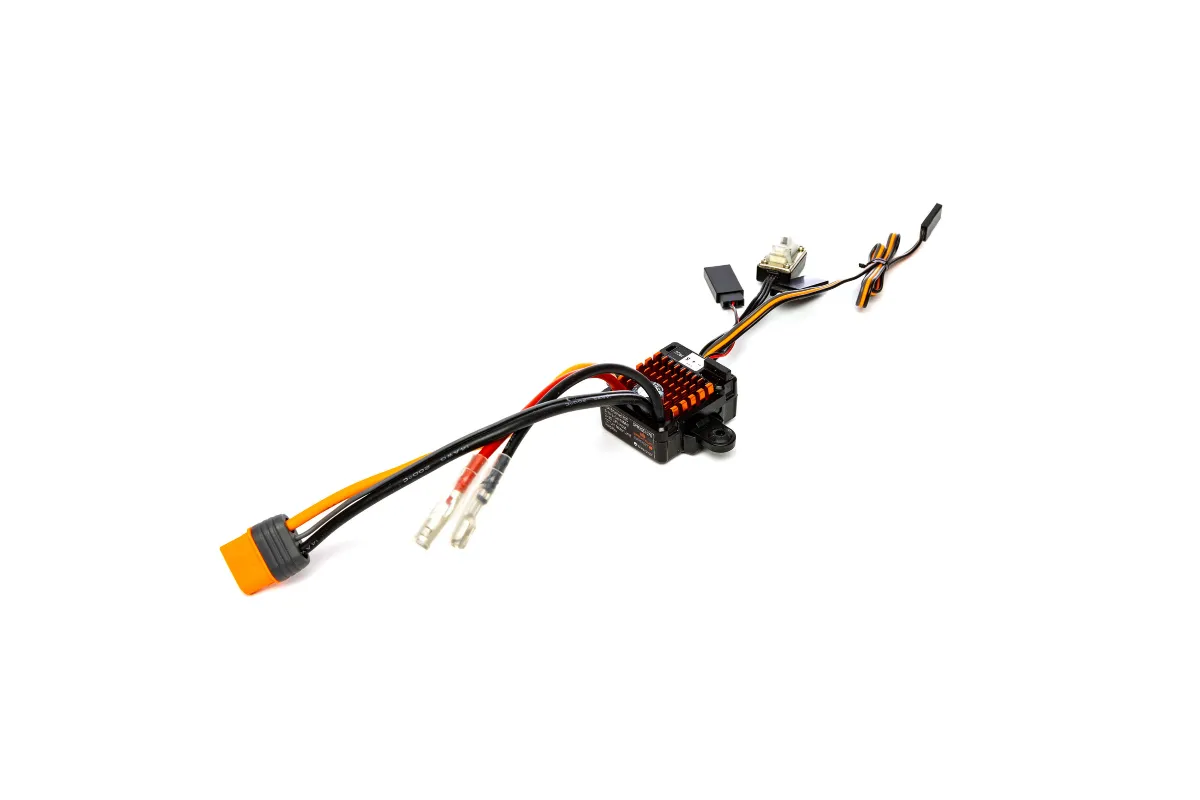

ESC (Electronic Speed Controller)
For Motor Type: Brushed
Max Voltage: 11.1
Continuous Amps: 70
Motor Connectors: 3.5mm Bullet
Battery Connector: IC3
LiPo Cut-off: Yes
Programmable: Yes
Waterproof Design: Yes
Cooling Method: Air
BEC Voltage: 7.4
Dual Motor: No

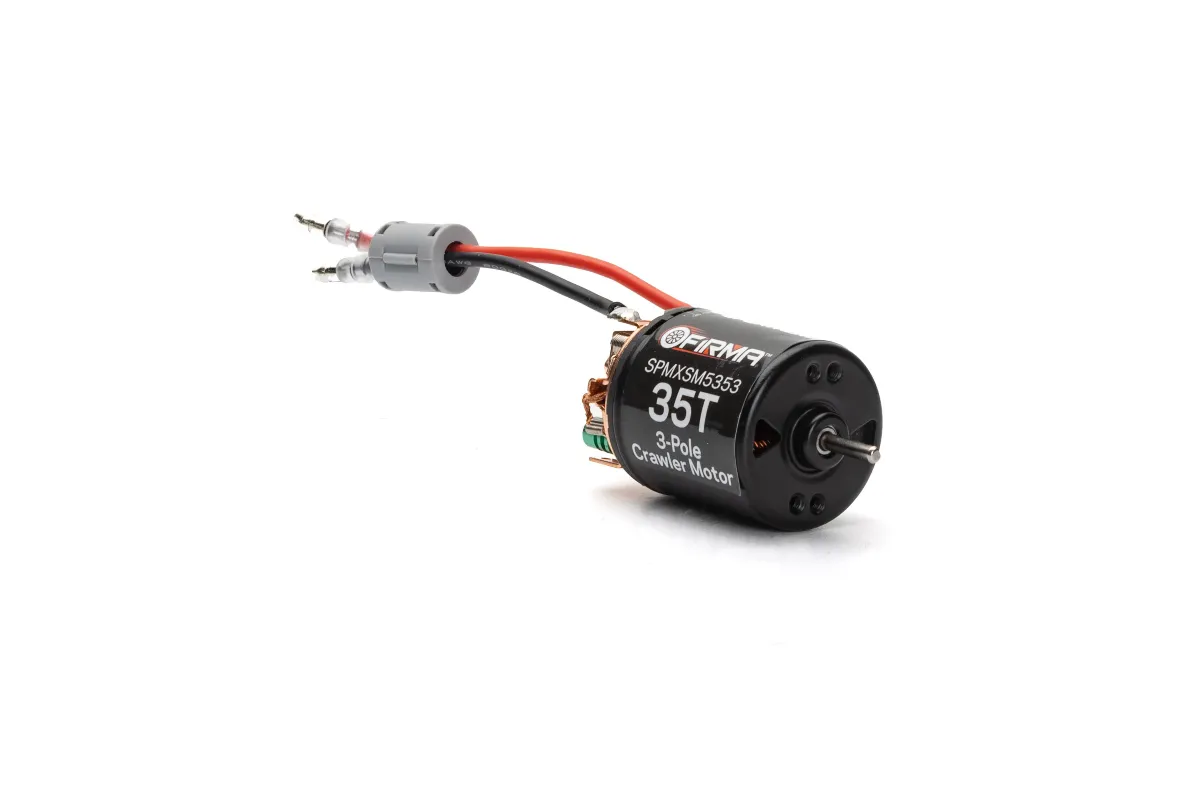

Motor
Motor Type: Brushed
Turns: 35
