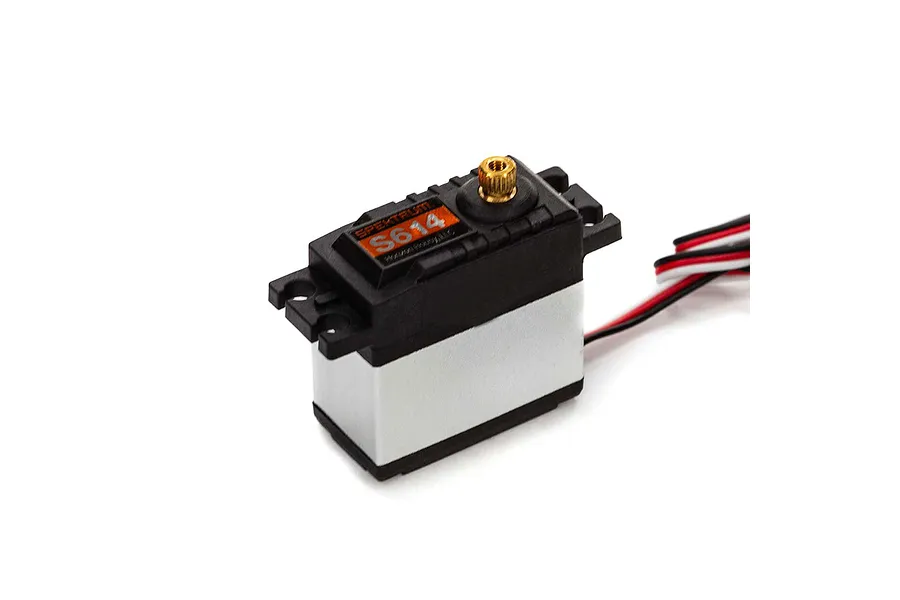

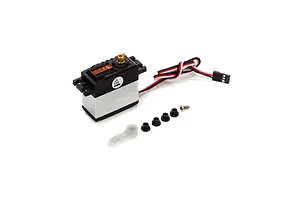

Spektrum S614 Standard 14.5kg 6v Brass Geared Waterproof Servo
Videos
Spektrum S614 Standard 14.5kg 6v Brass Geared Waterproof Servo
 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
This Spektrum S614 Waterproof Metal Gear Surface Servo, 23T is compatible with the Axial Capra Trail Buggy, RR10 Bomber Rock Racer, SMT10 Grave Digger Monster Truck and the Losi 8IGHT-T 4WD Truggy.
How To: Install a ServoIn this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
FeaturesBrass gears
Waterproof design
| Description | QTY |
|---|---|
| S614 Standard 14.5kg 6v Brass Geared Waterproof Servo | 1 |
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Brass
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 23Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 14.5
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.2
-
Signal Type
- Digital
-
Drive Motor Type
- Brushed
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
