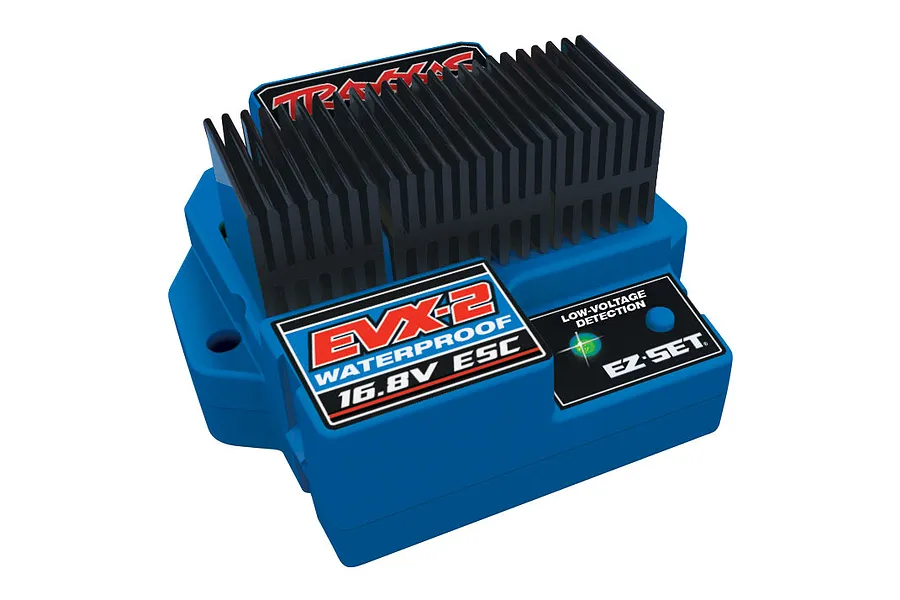

Traxxas EVX-2 Waterproof 30A Brushed ESC

Traxxas EVX-2 Waterproof 30A Brushed ESC

Traxxas EVX-2 Waterproof 30A Brushed ESC

Brand: Traxxas | SKU: 3019R
1 in stock
$373.51
Add to Wishlist
Pay later with
Afterpay Zip Paypal

Want more than 1?
and we'll notify you when the stock is here.
Loading compatibility information...
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

The Traxxas EVX-2 Waterproof 30A Brushed ESC delivers smooth, precise, and full-proportional control over your speed in forward and reverse. With its waterproof design and high-current capacity, it's ready to tackle any terrain, whether on or off-road. This ESC has also been designed to handle two motors and two batteries at once.

Features
  • Waterproof design for all-weather adventures
  • High-current capacity (30A) for powerful performance
  • Traxxas EZ-Set® one-button setup for easy programming
  • Three drive profiles (Sport, Race, Training)
  • Built-in two-stage low voltage detection (LVD) for LiPo batteries
  • 6.0V DC BEC output with 2.5A current for reliable servo operation
  • Dual Motor capability
  • Genuine Traxxas product
Specifications
  • Length: 57mm (2.27 in)
  • Width: 50.8mm (2 in)
  • Height: 26.67mm (1.05 in)
  • Weight: 102g (3.6 oz)
  • Continuous/Peak Current: 30A/180A
  • Waterproof: Yes
  • Motor Limit: 10-turn (540) / 12-turn (550)
  • BEC: 6.0V @ 2.5A
  • Voltage Limit: 6-14 Cells NiMH, 2S-4S LiPo
  • Programmable: Yes (EZ-Set)
  • Scale: 1/10, 1/8
  • Sensored: No
Included items
Description QTY
Traxxas EVX-2 Waterproof 30A Brushed ESC 1
Specifications
ESC (Electronic Speed Controller)
Burst Amps
180A
Continuous Amps
30A
For Motor Type
Brushed
Motor Connectors
Basic Bullet
Battery Connector
Traxxas iD
BEC Voltage
6V
Dual Motor
Yes
Cooling Method
Air
Waterproof Design
Yes
Programmable
Yes
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Max Voltage
16.8V
