O.S. Engines

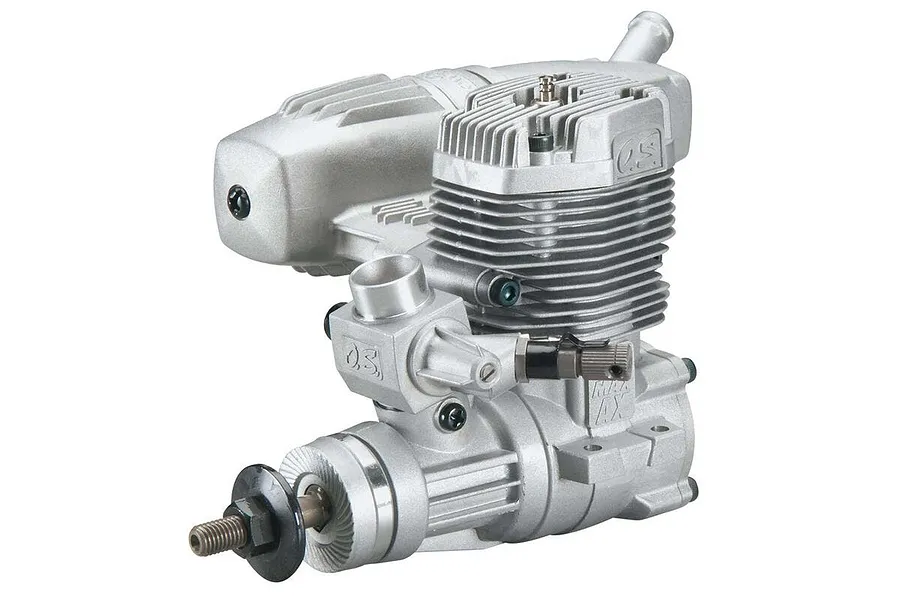

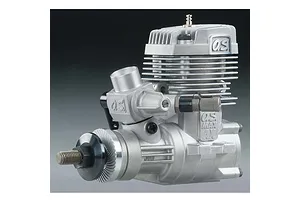

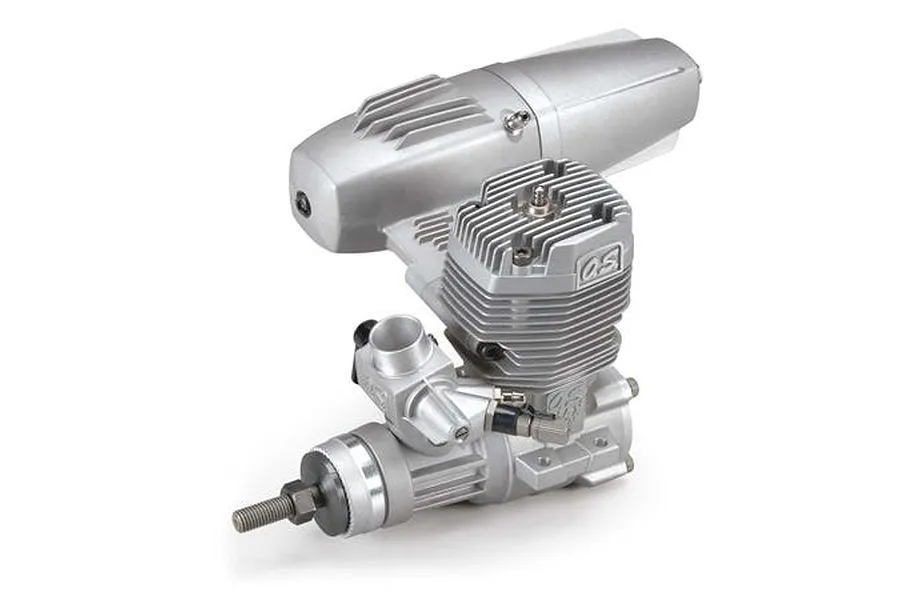

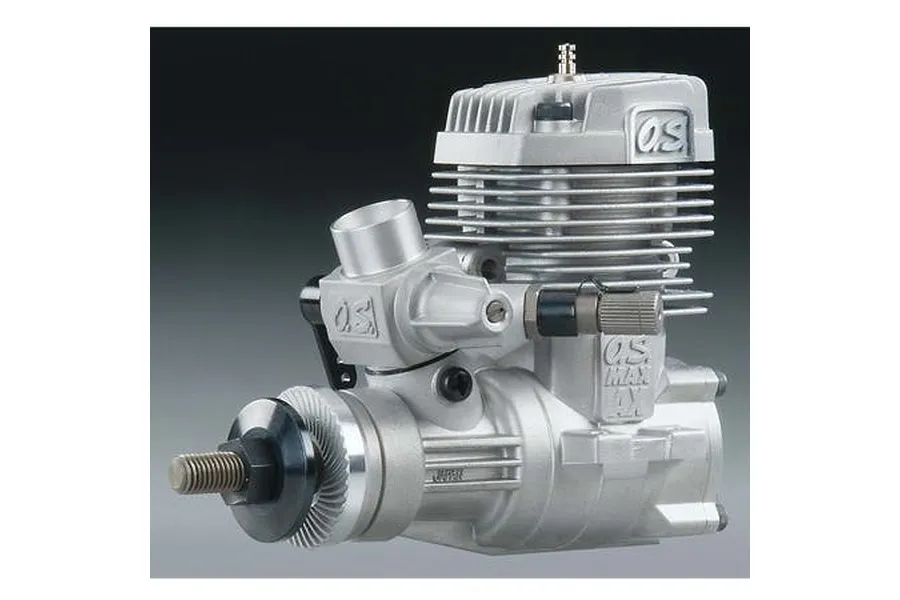

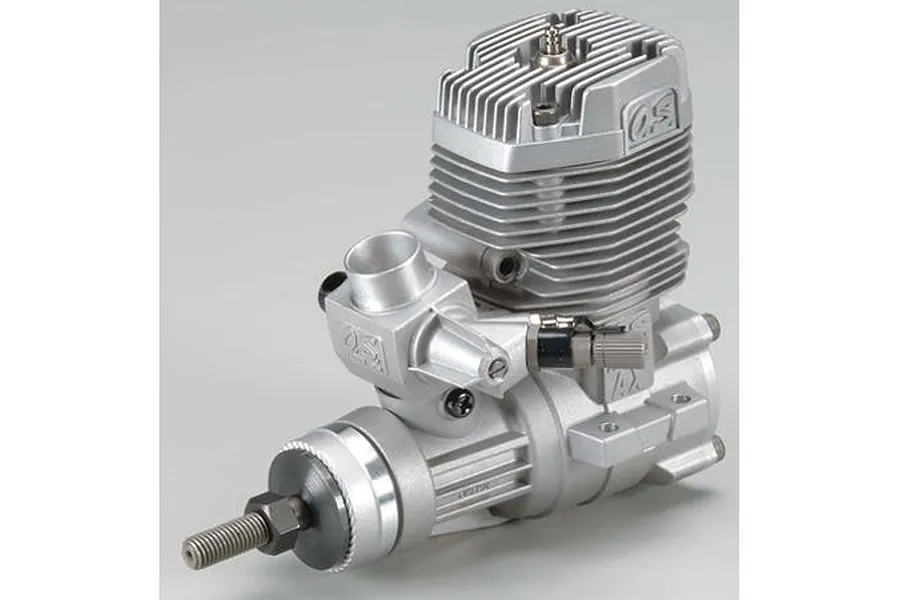

O.S. Engines .55 Size MAX 55AX Nitro Aircraft Engine

  • Nitro

Part no. OSM15612

1 in stock5.0
1 review
1 / 6
1 / 6

$290.31

or 4 fortnightly payments of $72.58 with afterpay or PayPal, or zip

Check fit: add your vehicle to My Garage

Want more than 1? and we'll email you when they're here.

Overview

Unleash upgraded power without sacrificing fit. The O.S. Max .55 AX delivers .50 scale muscle packed into a .40 size envelope. Its redesigned carburettor and muffler boost performance and ease, featuring a rear-angle needle valve for convenient tuning and a squared-off muffler for hassle-free cowling installation. Take your flights to the next level with the .55 AX - power, precision, and ease, all in one.

Features

  • Comes with the E3071 muffler for quieter efficiency
  • Compact design means it has the same mounting dimensions as the O.S. Max .46 AX

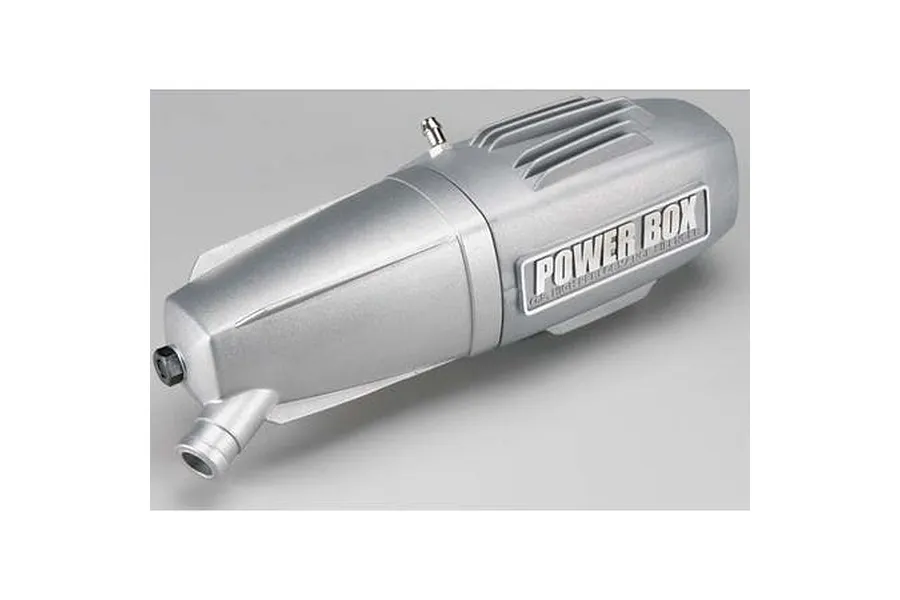

  • Power Box positionable muffler
  • Angular head design offers increased surface area for better cooling
  • 40K Carburettor with diagonally placed needle valve eliminates remote needle valve placement

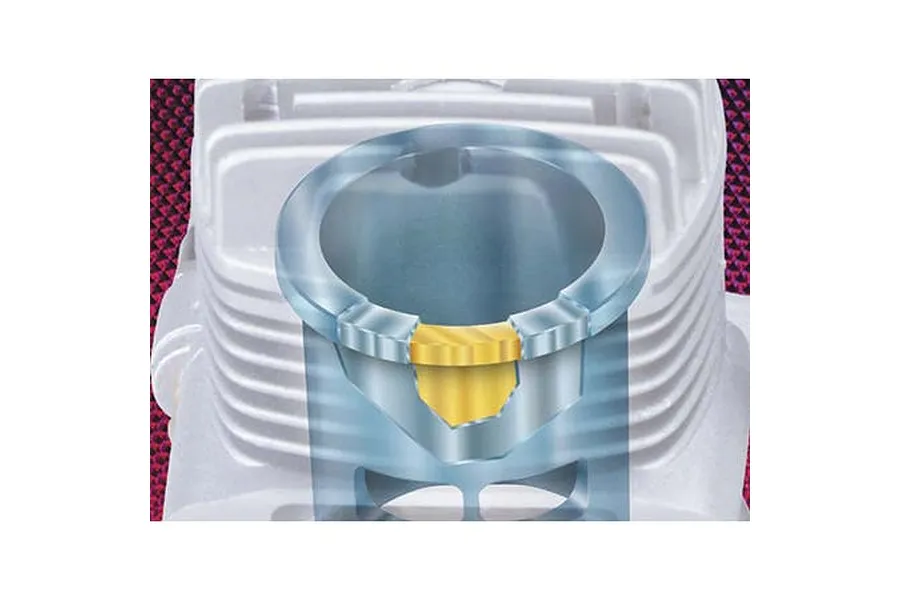

  • Advanced Bi-Metallic Liner process uses a double layer of plating material rather than one thick layer
  • Plating process is more consistent, resulting in a more precise fit between piston and sleeve for better compression and longer life
  • Recommended prop sizes: 12x7, 12x8, 13x6, 13x7

In the box

  • 1x O.S. Engines .55 Size MAX 55AX Nitro Aircraft Engine
  • 1x Muffler

You'll need

  • Aircraft blend fuel containing 5%-20% Nitromethane with at least 18% lubricant
  • Plane
  • Propeller

Specifications

Displacement8.93cc (.545cu/in)
Bore23mm (.906in)
Stroke21.5mm (.846in)
Practical RPM2,000-17,000
Power Output1.75 PS, 1.68 HP/16,000 RPM
Weight w/o muffler405g (14.29oz)
Weight w/ muffler525g (18.52oz)
