Compact GNSS Analyzer Mount
With its compact dimension of 40mm x 40mm x 17mm and internal antenna, the GNSS Performance Analyzer is an ideal choice for mounting on RC vehicles and airplanes.
Next Dispatch: 00d 05h45m18s
SkyRC GSM020 GNSS Bluetooth Performance Analyzer โ GPS & GLONASS, 4 race modes, 5-hour built-in battery, app-enabled for Android & Apple. 40x40x17mm, 35g.
3+ in stock ยท Order in 5h 45m, dispatched today
Checking delivery datesโฆ
Free 60-day returns ยท 12,000+ 5-star reviews ยท 03 5292 1101 ยท

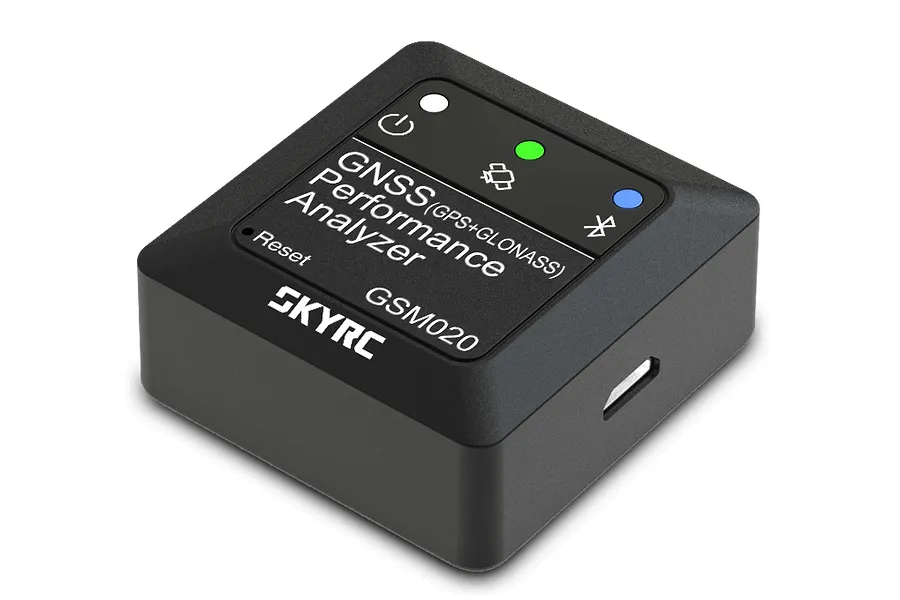

The SkyRC GSM020 GNSS Bluetooth Performance Analyzer lets you measure and analyze the performance of your RC car or airplane using the latest GNSS engine (GPS & GLONASS). Mount it to almost any RC vehicle or airplane, connect it to the Android or Apple app via Bluetooth, and track acceleration, G-force, speed, time, distance, altitude, and vertical velocity in real time.
Its compact dimensions of 40mm x 40mm x 17mm and built-in antenna make it ideal for RC vehicles and airplanes. The built-in rechargeable LiPo battery provides up to 5 hours of operating time, and charges conveniently via the micro USB port. Built-in 1M memory records up to 50 runs, and data can be exported as screenshots or in Excel format.

With its compact dimension of 40mm x 40mm x 17mm and internal antenna, the GNSS Performance Analyzer is an ideal choice for mounting on RC vehicles and airplanes.

Just use an app on your smartphone, strap it to your car, and track speed, acceleration, G-force, time, distance, and vertical velocity via Android and Apple apps with Bluetooth connectivity.
| Satellite Systems | GPS & GLONASS |
|---|---|
| Receiver | L1, 1575 MHz |
| Update Frequency | 10 Hz |
| Antenna Type | Built-In |
| Satellite Signal Reception Sensitivity | -167dBm |
| Weight | 35g |
| Operating Temperature | 0 to +40ยฐC |
| Storage Temperature | -10 to +70ยฐC |
| Operating Humidity | 5% to 90% |
| Length | 39mm |
|---|---|
| Width | 40mm |
| Height | 16mm |
