Tamiya 1/10 TT-02 Ford Escort Custom 1998 Electric On Road RC Car Kit

This is a special custom (street spec) version of the 1998 Ford Escort. The body depicts the Ford Escort as a customized street version of the WRC car and is based upon the TT-02 chassis. The actual car was powered by an inline-4 2-litre engine offering 300PS and 50Kgm of torque.

TT-02 Chassis: Adaptable, Balanced Shaft-Driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

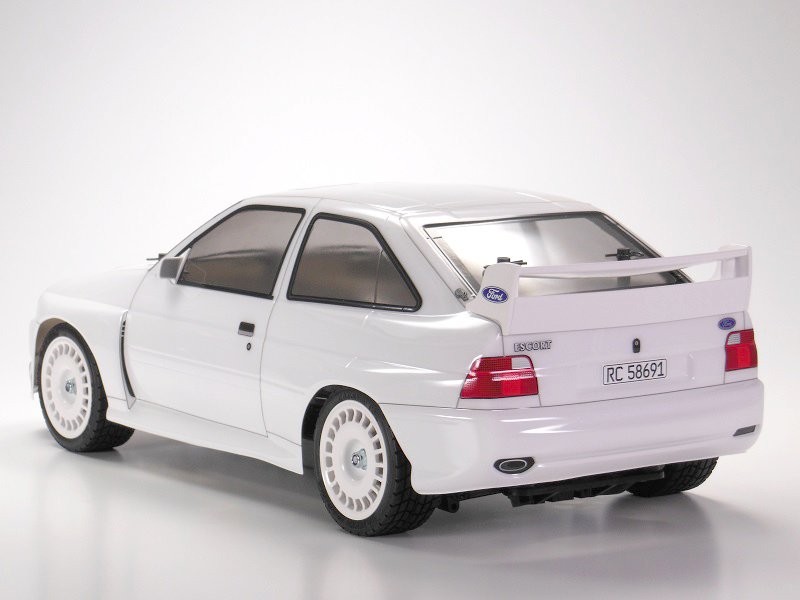

Features a polycarbonate body, which is unpainted for export. Stickers are also included.

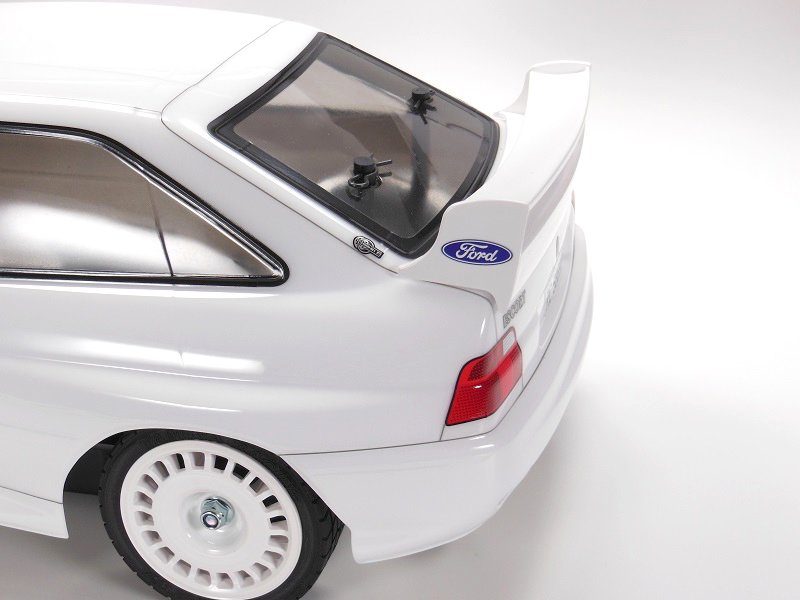

Separate parts are included for side mirrors and rear wing. Stickers and masking stickers are also included.

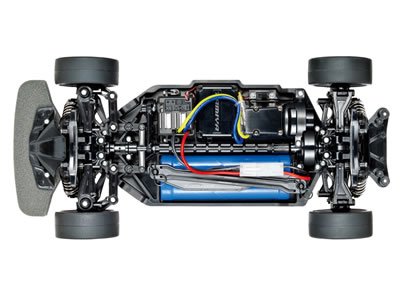

The TT-02 chassis is a highly versatile shaft-driven 4WD unit, based around a durable bathtub.

• 1/10 scale R/C model assembly kit
• Features a 1.0mm thick polycarbonate body
• Dish-type wheels are moulded in white ABS plastic, and paired with treaded tyres
• Stickers and window painting masking stickers for use in the painting process included
• The TT-02 chassis is a highly versatile shaft-driven 4WD unit, based around a durable bathtub
• 4-wheel independent double-wishbone suspension has identical arm and upright parts for ease of maintenance
• A wide range of Hop-Up Option parts is available to customize your chassis
• Includes 540-brushed type motor
• Includes ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over

• Type: 1/10 Scale R/C Model Assembly Kit
• Terrain: On-Road
• Dimensions
• Length: 425mm (16.7")
• Width: 189mm (7.44")
• Height: 145mm (5.7")
• Wheelbase: 257mm (10.1")
• Motor
• Wheel Drive: 4WD
• Motor Type: 540-Brushed
• Differential
• Gear Ratio: Adjustable
• Bearings: Plastic Bushing
• Steering & Suspension
• Friction Dampers: Front & Rear
• 4-Wheel Independent Double-Wishbone Suspension

• 2Ch+ Transmitter & Receiver
• Standard Servo
• 7.2V Battery Pack w/ Tamiya Plug & Compatible Charger
• Tools
• Paint
