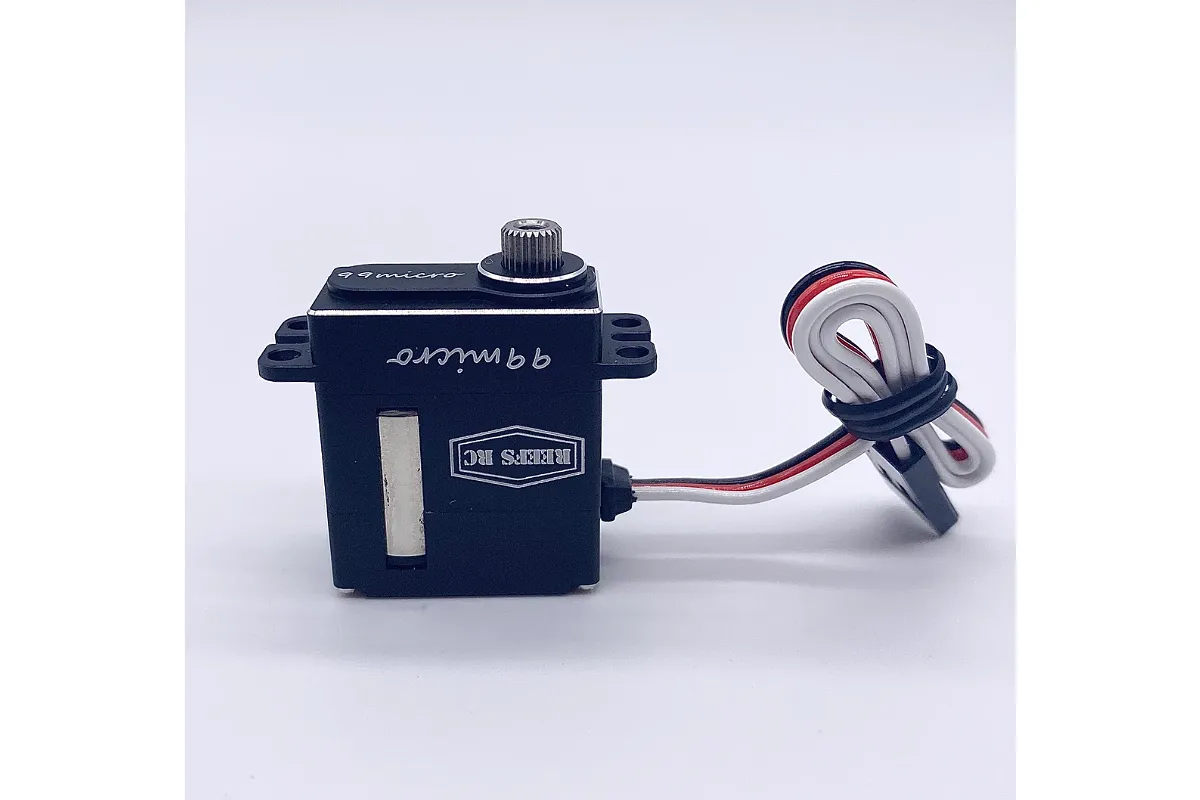

Reefs RC Aluminium 99 Micro 8.3kg 8.4V Metal Gear Servo - Black
Brand: Reefs RC
|
SKU: REEFS25
Description
No description
Specifications
| Servo | |
|---|---|
| Size: | Micro |
| 6.0v Torque: | 6.4kg |
| 6.0v Speed: | .11s |
| Gear Material: | Metal |
| Waterproof Casing: | Yes |
| Servo Spline Count: | 25tooth |
| Signal Type: | Digital |
| Input Voltage Range: | 6V, 7.4V, 8.4V |
| Drive Motor Type: | Brushed |
| Case Material: | Aluminium |
| Rotational Degrees: | 120° (Normal) |
| Total Height: | 31.71mm |
| Body Length: | 23.15mm |
| Bottom to Under Mount: | 20.42mm |
| Top to Under Mount: | 11.75mm |
| Total Length: | 32.07mm |
| Total Width: | 12.07mm |
| 7.4V Torque kg/cm: | 7.1 |
| 8.4V Torque kg/cm: | 8.3 |
| 7.4V Sec/60 Degrees: | .09 |
| 8.4V Sec/60 Degrees: | .08 |
