Team Associated RC10B84D RC Buggy Electric 4WD 1/10 Scale Kit

Team Associated RC10B84D RC Buggy Electric 4WD 1/10 Scale Kit

Team Associated RC10B84D RC Buggy Electric 4WD 1/10 Scale Kit

Brand: Team Associated | SKU: 90051
3 in stock
Now $849.99
$920.10
You Save $70.11
Engineered for the top step of the podium, the RC10B74D is a 1/10 4WD competition RC buggy kit packed with highly adjustable race features.
  • Long-arm suspension geometry for high grip and stability

  • Height-adjustable gearboxes for fine-tuning the CG

  • Highly adjustable chassis bracing, caster, and battery position

  • Features 13mm big-bore shocks and optimised steering rack

  • A high-performance kit for serious racers and expert builders

Add to Wishlist
Pay later with
Afterpay Zip Paypal
We'll send it today
When ordered within the next hms
Description

The Team Associated RC10B74D is a no-compromise, 1/10 scale 4WD competition buggy kit, designed for one purpose: to win races. This is an assembly kit for experienced builders, requiring a full complement of race-grade electronics and components to complete. The design philosophy centres around total adjustability, giving you the power to tune the buggy for any track condition. Racers can fine-tune the buggy's centre of gravity using the height-adjustable front and rear gearboxes, and further dial in the handling with adjustable upper and lower chassis bracing to control flex characteristics for any surface.

The RC10B74D's performance is built on a foundation of precision. Its long-arm suspension geometry provides a predictable and high-grip feel, while the optimised steering bellcranks and rack are designed to minimise bump steer, ensuring precise control through the roughest sections of the track. The large-volume 13mm big-bore shocks soak up landings and provide consistent damping lap after lap. With additional tuning options like adjustable caster blocks, HRC rear hubs, and multiple motor and battery positions for weight bias, the RC10B74D gives the competitive racer all the tools they need to reach the top of the podium.

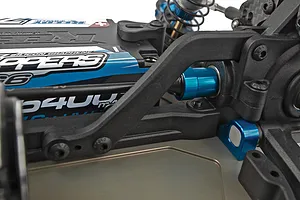

Tunable Chassis Flex Bracing System

Fine-tune the handling of your B74D with the adjustable chassis bracing system. By using different combinations of the upper and lower chassis braces at the front and rear, you can alter the chassis flex characteristics. This allows you to dial in your buggy for different track surfaces and grip levels.

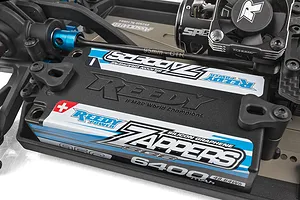

Adjustable Battery Holder with Thumb Tabs

The highly adjustable battery holder makes it easy to fine-tune your buggy's weight bias. You can shift the battery position to alter the handling characteristics for any track condition. Convenient thumb tabs also allow for quick and easy battery removal between races without needing any tools.

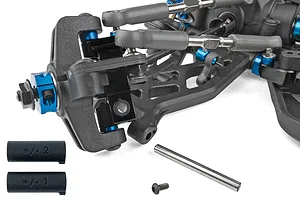

Easy-Adjust Caster Block Inserts

Quickly and easily adjust the front caster with the included insert system. The kit comes with 0, +/-1, and +/-2 degree inserts for the caster blocks. This simple yet effective system allows you to make precise tuning changes to the steering characteristics to suit any track layout.

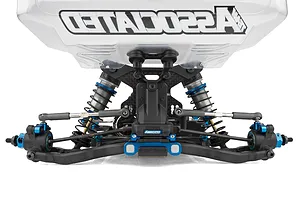

Long-Arm Suspension Geometry

The B74D features long-arm suspension geometry for improved handling in all conditions. This design increases mechanical grip and makes the buggy more predictable to drive, especially on lower grip or bumpy surfaces. It gives you the confidence to push harder and find the limits of your buggy.

Adjustable Forward and Rear Motor Positions

Further refine your buggy's weight distribution with adjustable motor positioning. The B74D allows for both forward and rear motor mounting locations. This provides another powerful tuning option to adjust the weight bias and change how the buggy handles through corners and over jumps.

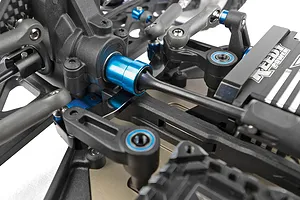

Refined Steering Bellcranks and Rack

The B74D's steering system has been refined for better control and consistency. The new bellcrank and rack design improves bumpsteer control across all ride heights. This means the buggy will track straighter through bumps and ruts, providing a more stable and predictable feel for the driver.

Features
  • 1/10 scale 4WD competition off-road buggy assembly kit

  • Height-adjustable front and rear gearboxes for CG tuning

  • Long-arm suspension geometry improves grip and predictability

  • A chassis bracing system allows for fine-tuning chassis flex

  • An optimised steering bellcrank and rack reduces bump steer

  • Forward and back motor positions for weight bias adjustment

  • Features large-volume 13mm big-bore oil-filled shocks

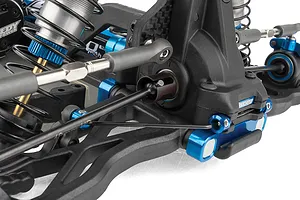

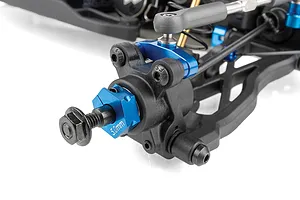

  • Includes standard and HRC (High Roll Centre) rear hubs

  • Low-profile body and 7-inch rear wing for aerodynamics

  • Genuine Team Associated Product

Specifications
  • Length: 395mm (15.55")

  • Width: Varies

  • Height: N/A

  • Wheelbase: Varies

  • Weight: Varies

  • Chassis: 2.5mm 7075-T6 Aluminium

  • Suspension: Long-Arm Independent

  • Drivetrain: 4WD

  • Motor: Not Included

  • ESC: Not Included

Included Items
  • 1x RC10B74D Team Kit (Unassembled)

  • 1x Low-Profile Clear Body

  • 1x 7-inch Rear Wing

  • 1x Set of Shock Tower Covers

  • 1x Set of Caster Block Inserts

  • Standard and HRC Rear Hubs

  • 1x Assembly Manual

Required Items
  • 1x 1/10 Scale Brushless Motor and Pinion Gear

  • 1x Electronic Speed Control (ESC)

  • 1x 2-Channel Radio System (Transmitter and Receiver)

  • 1x Steering Servo

  • 1x 7.4V 2S Shorty LiPo Battery Pack

  • 1x Compatible Battery Charger

  • 1x Set of 1/10 Buggy Wheels and Tyres

  • 1x Polycarbonate Body Paint

  • 1x Assembly Tools

Specifications
Factory Specs
Wheel Hex Size
12mm
Spur Gear
78T 48dp/0.5Mod
Front Differential Oil
15000cSt
Rear Differential Oil
15000cSt
Front Shock Oil
35wt
Rear Shock Oil
30wt
Max LiPo Power
2S (7.4v)
Battery Connector
Not Included
Centre Differential Oil
200000cSt
RC Car
Completion
Kit
Skill Level
Expert
Drivetrain
4WD
Max LiPo Power
2S (7.4v)
On/Off Road
Off Road
Chassis Type
Buggy
Power Source
Electric Brushless
Scale
1/10
