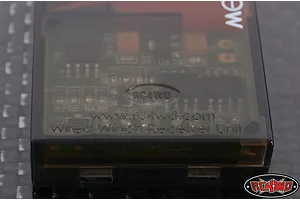

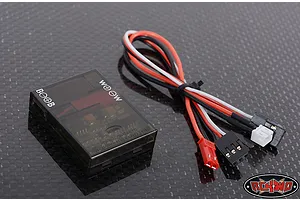

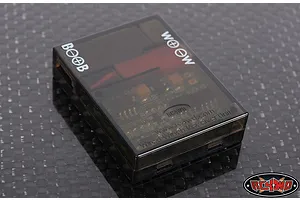

This is the wired Winch Control Unit offered to allow operation function from your radio and receiver. This will allow you to control a winch with your remotes third channel.

• Small Compact Size

• Operating Voltage 6V to 11.1V

• Requires 3 position Third Channel

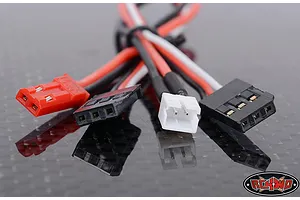

• Easy Plug and Play

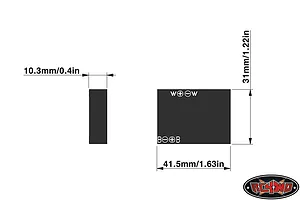

• Length: 1.6in / 41mm

• Width: 1.2in / 31mm

• Height: 0.39in / 10mm

• Weight: 0.35oz / 10g

Notes:

• You will need a radio with a third channel to operate this controller.

• Your third channel needs to be a three position switch (on/off/on).

• If your radio does not have a three position switch, you can purchase a wireless controller unit. (Z-S1092)

• This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty.

• For Warnings, Precautions, Safety and Damage Limits: Click Here

• If for any reason you cut the wires on the control box, this will void the warranty.

• Some Lipo battery voltage can be higher than 11.1 volts. Please be careful and check voltage before using your battery.
