Kyosho MA-030EVO Mini-Z Touring Car Electric Brushless AWD Mini-Z Scale Car Kit

Brand: Kyosho | SKU: KYO-32180

1 in stock

write a review

$351.68

Kyosho Mini-Z MA-030 EVO: The Ultimate AWD Mini-Z for Drift or Touring!

Perfect for all skill levels
Compatible with a wide range of aftermarket and OEM upgrades
Top Speed: 17 kph
Runtime: ~ 50 Minutes

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Save Time & Add These Now

Complete your setup with these required items.

Fujitsu 1.5v AAA Alkaline Batteries 4Pcs

$6.15

AAA Batteries

Kyosho Mini-Z Audi LMS2015 ASC Body Shell - White

$102.17

Body Shell

Kyosho KT-531P 2.4Ghz Transmitter

$111.10

Transmitter

Kyosho Mini-Z 4x4 ESC & Receiver Unit

$131.41

Receiver

Yeah Racing Kyosho Mini-Z Florescent Yellow Narrow Rim Set (Offset 0 +1 +2 +3) 8Pcs

$18.36

Rims

Kyosho Mini-Z 30 Radial Wide Racing Tyres 4Pcs

$22.66

Tyres

Shop replacement & upgrade parts for this model

Shop Parts

Description

The Kyosho Mini-Z MA-030 EVO marks a significant advancement in AWD Mini-Z performance. This upgraded chassis builds upon the success of the MA-03F, incorporating innovative features and enhanced components for an unparalleled driving experience. The MA-030 EVO introduces a separable receiver design, allowing you to use transmitters from various brands like Kyosho, KO Propo, Futaba, and Flysky. This opens up a new world of customisation and control, putting the power in your hands.

The MA-030 EVO also features the higher-spec 5-stage gear type steering servo from the MR-03, along with a special CPU for servo control that improves positioning feedback and responsiveness. The result is the best steering feel of any AWD Mini-Z model, with enhanced linearity and precision. The KYOSHO SPEED HOUSE XSPEED 85 brushless motor, with its integrated heatsink and aluminium case, delivers optimal performance and efficient cooling. And with the I.C.S. manager, you can fine-tune settings and even switch to a brushed motor for even greater versatility.

Whether you prefer the excitement of drift driving or the precision of grip racing, the Kyosho Mini-Z MA-030 EVO delivers the ultimate in AWD performance and customisation. Experience a new era of Mini-Z driving with this innovative and feature-packed chassis.

AWD MA-030 Chassis: Superior Handling with Front Midship Layout

AWD MA-030 chassis is based on the FWD (Mini-Z) MA-03F chassis. Front midship layout of the motor produces superior lateral and vertical weight distribution to realize excellent handling.

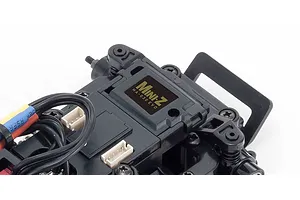

Various transmitters on the MA-030EVO chassis

Remove the upper cover of the receiver on top of the chassis to install the receiver units compatible with KYOSHO, KO, FUTABA and Flysky transmitters.

Tool-free VCS Front Suspension with Adjustable Coil Springs

Featuring high-performance VCS front suspension adopted from the previous models. Settings can be adjusted with using any tools just by replacing coil springs.

Advanced Rear Suspension System

Rear suspension is equipped with the same strut unit as the MA-03F chassis (default setting at time of shipment). Not only is maintenance easy, settings can be changed with toe control rods and camber knuckles according to conditions.

Rear Double Wishbone Suspension Set

Precision rear double wishbone suspension set enables setting changes through toe angle adjustment. Can be used in place of normal strut type suspension depending on requirements. (*Only LL size wheelbase can be used with rear double wishbone suspension set.)

Efficient Heat Dissipation

KYOSHO SPEED HOUSE brushless motor XSPEED 85 (8500KV) features a one-piece aluminium case that realizes efficient heat dissipation.

Features

MA-030 AWD chassis is based on MINI-Z FWD MA-03F chassis
The chassis set comes with a separate ESC and receiver unit
Includes KYOSHO SPEED HOUSE 85 brushless motor (KV8500)
I.C.S manager enables precise setting control and use of either brushless or brushed motor
Independent CPU control with increased processing speed delivers even more precise control
Full ball bearing specifications reduces drive loss
Includes rear double-wishbone suspension
Compatible with L?94mm? and LL?98mm? wheelbases. Only LL?98mm? can be used with the rear double wishbone suspension set
Compatible with optional parts for the various MR-03F chassis models
Genuine Kyosho Product

Specifications

Length: 126mm (4.96")
Width: 65 - 76mm (2.55 - 2.99") adjustable by wheel offset
Height: 36mm (1.41")
Wheelbase: 98mm (3.85")
Weight: 135g (0.30 lbs)
Chassis: MA-030 (On Road Drift or Touring)
Drivetrain: 4WD
Suspension: N/A
Motor: Brushless 8500KV Motor
ESC: N/A

Included Items

1x Factory-assembled chassis equipped with EVO main unit installed
4x Pinion Gears (15T, 17T, 19T, 21T)
1x DWS conversion parts *Front tread conversion parts Set
1x Pinion gear removal tool
1x Spare wheel nuts set
1x Wheel wrench
1x Center shaft for L wheelbase Set
1x Wide rear suspension arms for DWS Set
4x swing shafts (long)
3x Spur gears (27T, 29T, 31T)

Required Items

8 x AAA Batteries
1x Auto Scale Collection (body, wheels and tyres)
1x Compatible Transmitter
1x MINI-Z EVO receiver unit compatible with the transmitter used

Specifications

Factory Specs

Spur Gear: 27T, 29T, 31T
Pinion Gear: 19T, 21T, 15T, 17T
Battery Connector: AAA
Max LiPo Power: 2S (7.4v)

RC Car

Completion: Ready to Run
Skill Level: Intermediate
Drivetrain: 4WD
Max LiPo Power: 2S (7.4v)
On/Off Road: On Road
Chassis Type: Car
Power Source: Electric Brushed
Scale: Mini-Z
