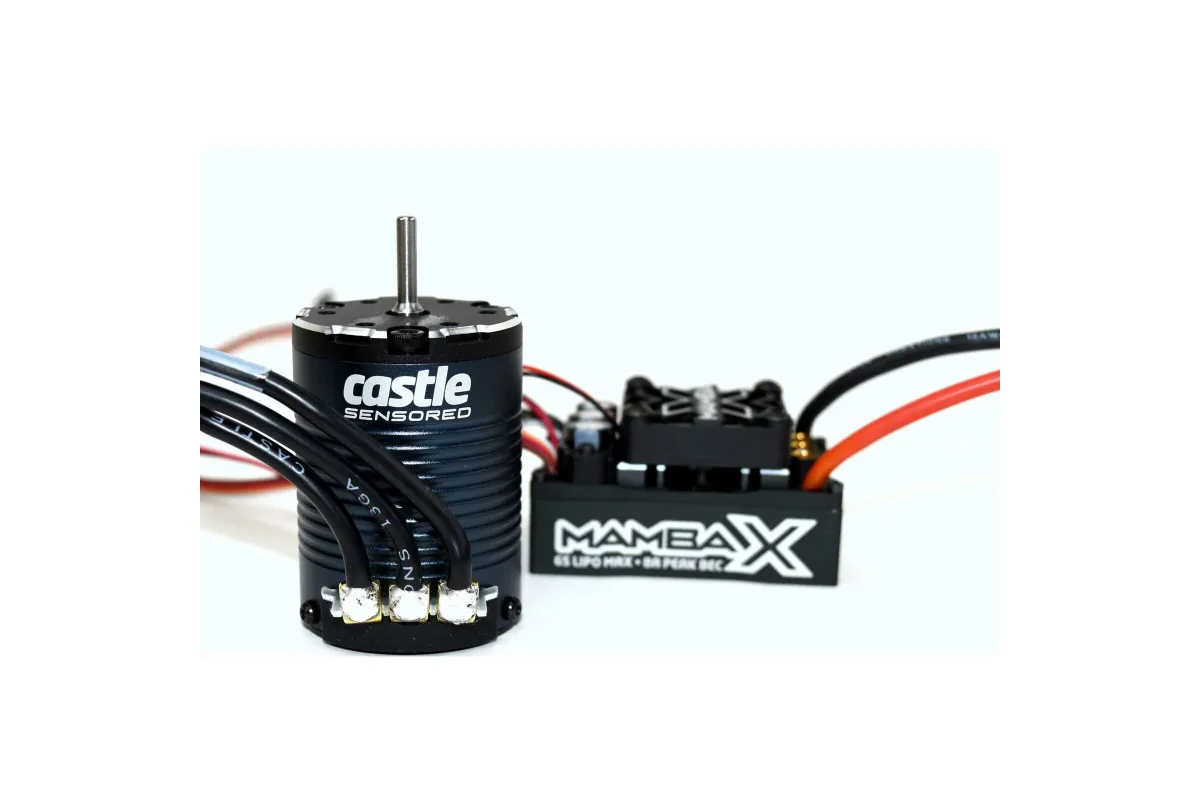

Castle Creations 1406-1900Kv 4-Pole Sensored Brushless Motor & Mamba X Waterproof 6S ESC Combo

Brand: Castle Creations | SKU: 010-0155-08
1 in stock

$460.21

Description
WARRANTY INFO: Your Castle ESC is warranted for one (1) year from date of purchase to be free from manufacturing and component defects. This warranty does not cover damages caused to your motor or controller from abuse. Abuse includes, but is not limited to, incorrect wiring, over-voltage, overloading, improper gearing, improper motor selection, incorrect controller settings, insufficient batteries, or inadequate connectors. Always monitor your ESC and motor temperatures during the first run after modifying your system to ensure they stay within the safe operating limits.
WARNING: Drag and speed run setups are inherently abusive and exceedingly hard on all electronic components. Every component in the configuration can be strained, weakened or worse without extreme caution, an understanding of electric theory and advanced knowledge of all aspects of the RC hobby. High speed runs and drag racing are the most aggressive and volatile applications in the RC car hobby. Improper setup or use of this product can result in catastrophic failures of the motor, ESC and/or batteries. For this reason, Castle does NOT warranty products used in these abusive applications.

The Mamba X Crawler edition is our latest offering for the crawling crowd. We have taken our new 1406 low kv crawler motors and paired it with the high power, ultra-reliable Mamba X ESC. This combo is ideal for low speed crawling or trail running in vehicles weighing up to 9lbs on 3s or 4s; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 5lbs. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation.

ESCs have a tough life - landing extreme jumps, experiencing accidental collisions, and splashing through the occasional puddle. As R/C enthusiast themselves, Castle engineers understand this and designed the Mamba X to endure these situations and power through them. It is housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.

The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale race buggies. SmartSense™ allows you to take advantage of smooth, cog-free, and predictable sensored starts, and Castles new and improved throttle response keeps you ahead of the competition.

Smart Sense

Enabled by default, the Mamba X uses the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.

Features
  • ESC voltage range 2S-6S
  • 1406-1900Kv 2S-4S sensored motor
  • Waterproof
  • 8A Adjustable BEC (5.25V-8.0V)
  • Data-logging
  • Rugged CNC Aluminium Case
  • Castle Link Programming Support
  • Convenient Transmitter Programming
  • Auxiliary Wire Functionality for "on-the-fly" adjustments
  • SmartSense™Technology
  • Integrated Capacitors
  • Removable 30mm Cooling Fan
  • Integrated 4mm Bullet Connectors
  • 12 AWG Power Wires
  • Waterproof Switch
  • Audible Alerts and LED Alerts for easy diagnoses of common issues
  • ROAR Certified ESC
  • RECON G6 Certified ESC
Specifications

ESC

  • Input Voltage Range: MIN: 2S LiPo MAX: 6S LiPo (25.2V) (4s max with included 1900kv motor)
  • BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
  • Operating Environment: Waterproof design allows for use in nearly any environment.
  • Brake: Proportional
  • Reversible: Yes, but may be disabled for racing.
  • On/Off Switch: Yes
  • Cooling Fan: Yes, factory equipped (30mm), fully removable
  • Size: Length: 2.14" (54.4mm)
  • Width: 1.39" (35.2mm)
  • Height: 1.18" (30.0mm)
  • Weight (with wires): 3.56 oz. (101g)
  • Connectors: 4.0mm female bullets for motor connection.
  • Max. Recommended Vehicle Weight: Less than 9lbs, with batteries, ready-to-run with included 1406 - 1900kv motor in low speed crawlers; 5lbs maximum for more aggressive setups like rock racing and extended hill climbing
  • Programmability: Fully programmable Castle feature set using Castle Link USB adapter and downloadable Castle Link Windows software or a B-LINK Bluetooth Adapter (sold separately) and the Castle Link iOS App.
  • Telemetry Link Capable: Yes

Motor

  • Input Voltage Range: 2S-4S LiPo
  • Kv: 1900
  • Max. RPM: 100,000
  • Size: Length: 49.5mm Diameter: 36mm
  • Weight (w/wires): 197 g / 6.9oz
  • Shaft Size: Length: 15mm Diameter: 1/8" (3.17mm)
  • Mounting Hole Specifications: M3 @ 25mm
  • Cooling Fan: Optional - Coming Soon
  • Connectors: 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210mm length sensored wire.
Included items
Description QTY
Mamba X ESC with Sensor Harness 1
1406-1900Kv 4-pole 12-slot sensored motor 1
Mamba Decals 1
Driver's Ed and Quick Start Guide 1
Gearing Chart for Castle Motors 1
Note
  • Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt. The cooling fan must be removed prior to driving in wet conditions. It is not waterproof
Specifications
ESC (Electronic Speed Controller)
For Motor Type: Brushless
Max Voltage: 22.2
Motor Connectors: 4.0mm Bullet
LiPo Cut-off: Yes
Programmable: Yes
Waterproof Design: Yes
Cooling Method: Fan
BEC Voltage: Programmable
Dual Motor: No
Motor
Motor Type: Brushless
Can Length (mm): 49.5
Can Diameter (mm): 36
KV (RPM/V): 1900
Shaft Diameter (mm): 3.175 (1/8")
