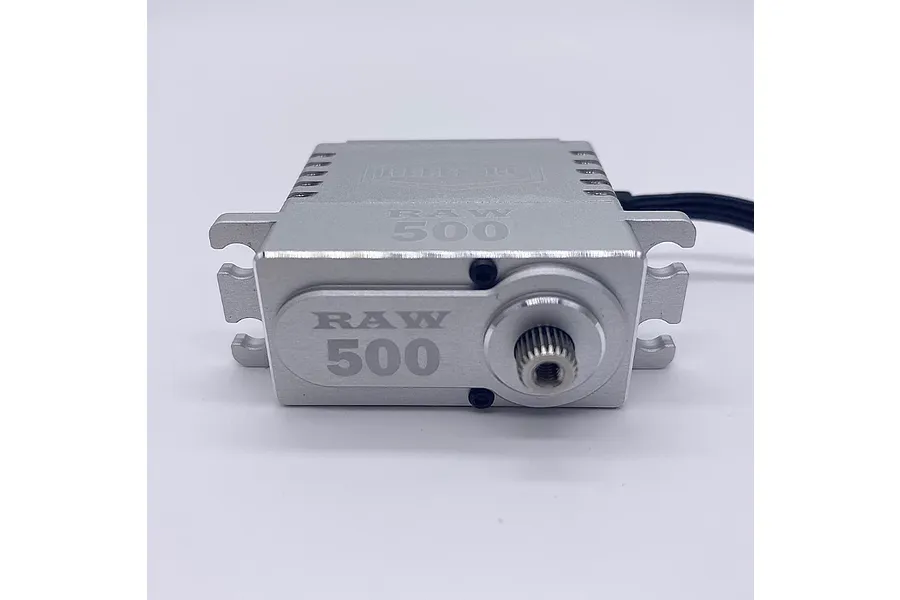

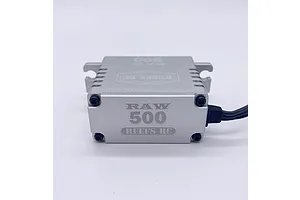

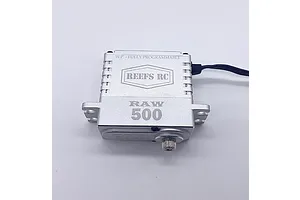

Reefs RC Aluminium RAW500 Standard 41kg 8.4V Brushless Metal Gear Servo - Silver
Reefs RC Aluminium RAW500 Standard 41kg 8.4V Brushless Metal Gear Servo - Silver
Brand:
Reefs RC
|
SKU: REEFS54
$250.53
Add to Wishlist
Description
No description
Specifications
Servo
-
Total Length
- 54.08mm
-
Total Width
- 20.25mm
-
Drive Motor Type
- Brushless
-
Top to Under Mount
- 16.50mm
-
8.4V Sec/60 Degrees
- .08
-
Input Voltage Range
- 7.4VV, 6VV, 8.4VV
-
Rotational Degrees
- 120° (Normal)
-
8.4V Torque kg/cm
- 41
-
Signal Type
- Digital
-
Case Material
- Aluminium
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 32
-
Gear Material
- Steel
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- .11
-
7.4V Torque kg/cm
- 36
-
Total Height
- 43.05mm
-
7.4V Sec/60 Degrees
- .095
-
Body Length
- 40.16mm
-
Bottom to Under Mount
- 25.70mm
-
SizeConventionally sized servo names
- Standard
