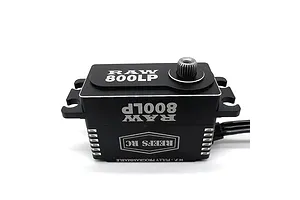

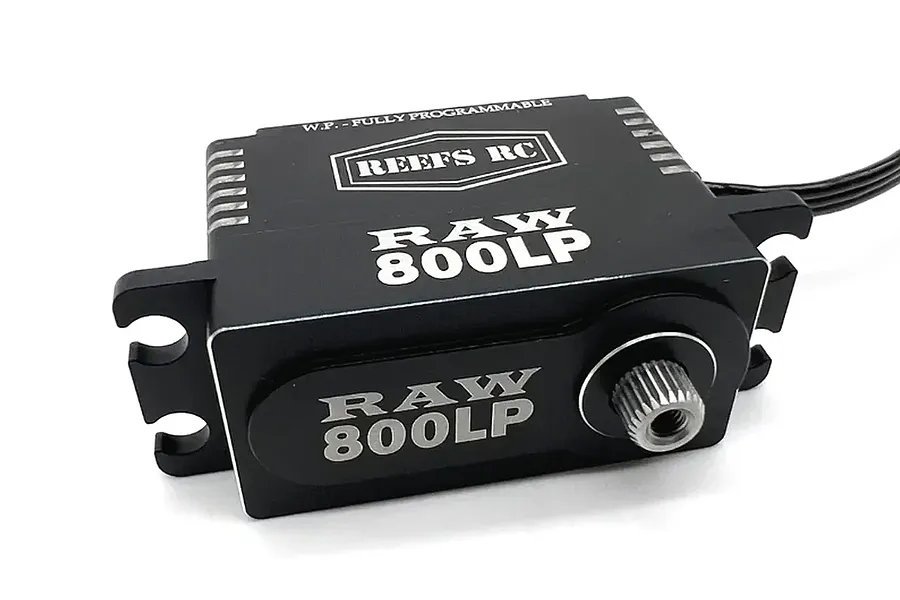

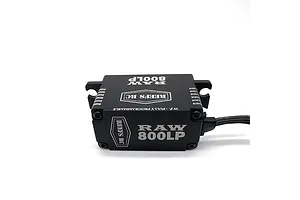

Reefs RC Aluminium RAW800 Low Profile 58kg 8.4V Brushless Metal Gear Servo - Black
$240.91
Reefs RC RAW 800LP Black 57.6kg RC Servo: High torque, high speed, and waterproof.
- High torque of 57.6 kg-cm
- Submarine waterproof with magnetic angle sensor
- Fully programmable with Reefs RC software
- Durable steel gears and CNC aluminium casing
- Low profile size suitable for various RC vehicles
The Reefs RC RAW 800LP Black Servo is a top-tier choice for RC enthusiasts seeking high performance and reliability in a low-profile design. This servo boasts impressive torque and speed, making it ideal for demanding applications. With a voltage range of 4.8V to 8.4V, it delivers consistent power and performance across various conditions.
Designed with durability in mind, the RAW 800LP features steel gears and a CNC aluminium casing, ensuring it can withstand rigorous use. The submarine waterproof design with 7-point seals provides excellent protection against water and dust, making it suitable for all-terrain adventures. Additionally, the magnetic angle sensor and pulse width modulation control offer precise and responsive control, enhancing the overall driving experience. Fully programmable with Reefs RC software, this servo allows for customisation to meet specific needs. Whether you're a seasoned RC hobbyist or a newcomer, the Reefs RC RAW 800LP Black is a reliable and powerful addition to your RC setup.
- High torque and speed brushless servo
- Strong torque @ 57.6 kg-cm (800 oz-in) and fast speed of 0.09 sec @ 8.4V
- Submarine waterproof with magnetic angle sensor
- Fully programmable with Reefs RC software
- Pulse width modulation control
- Voltage range: 4.8V - 8.4V
- No mechanical angle limit
- Steel gears and CNC aluminium casing
- 2 ball bearings for smooth operation
- 22AWG wires
- Genuine Reefs RC product
- Torque(6.0V): 45.8 kg-cm (635 oz-in)
- Torque(7.4V): 51.7 kg-cm (715 oz-in)
- Torque(8.4V): 57.6 kg-cm (800 oz-in)
- Speed: 0.12 sec (6.0V), 0.10 sec (7.4V), 0.09 sec (8.4V)
- Operating Voltage: 4.8V - 8.4V
- Weight: 66g (2.3oz)
- Bearing Type: 2 Ball Bearings
- Motor Type: Brushless Motor
- Gear Type: Steel Gears

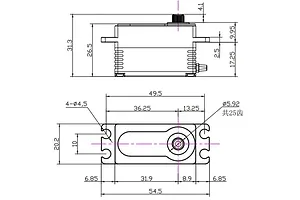

- Size: 40.8x20.2x29.5mm (1.6x0.79x1.16")
- 1x Reefs RC RAW 800LP Black Servo
- BEC is not required but recommended for maximum performance
- Reefs RC LINK required for programming (optional)
- Consult the manual for waterproof standards and maintenance
| Servo | |
|---|---|
| Size: | Low Profile |
| 6.0v Torque: | 46kg |
| 6.0v Speed: | .12s |
| Gear Material: | Steel |
| Waterproof Casing: | Yes |
| Servo Spline Count: | 25tooth |
| Signal Type: | Digital |
| Input Voltage Range: | 6V, 7.4V, 8.4V |
| Drive Motor Type: | Brushless |
| Case Material: | Aluminium |
| Rotational Degrees: | 120° (Normal) |
| Total Height: | |
| Body Length: | |
| Bottom to Under Mount: | |
| Top to Under Mount: | |
| Total Length: | |
| Total Width: | |
| 7.4V Torque kg/cm: | 52 |
| 8.4V Torque kg/cm: | 58 |
| 7.4V Sec/60 Degrees: | .10 |
| 8.4V Sec/60 Degrees: | .09 |
