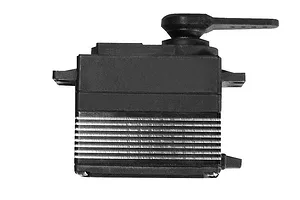

Hitec HS-7955TG Standard 24kg Metal Geared Servo

Brand: Hitec | SKU: HRC37955S

2 in stock

write a review

$204.60

Pay later with

We'll send it today

When ordered within the next hms

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Hitec's best servo just got better. Based on the powerhouse HS-5955TG servo the HS-7955TG has the added benefit of our G2 second generation programmable digital circuit. This new circuit has twice the resolution of our original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333 oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.

Features

G2 Digital Circuit
Coreless Motor
Dual Ball Bearing Supported Output Shaft
Titanium Gear Train (MK first gear)

Programmable Functions

End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Overload Protection
Resolution
Data Save / Load
Program Reset

Specifications

Total Height (A) = 40mm
Body Width (B) = 38mm
Below Mount (C) = 24mm
Above Mount (D) = 11mm
Total Length (E) = 51mm
Total Width (F) = 17mm

Specifications

Servo

Top to Under Mount: 11mm
Total Length: 51mm
Body Length: 38mm
Bottom to Under Mount: 24mm
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.15
Total Height: 40mm
Case Material: Metal, Plastic
Drive Motor Type: Coreless
Signal Type: Digital
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 24
Gear Material: Titanium
Waterproof Casing: Splash Proof
Total Width: 17mm
Rotational Degrees: 120° (Normal)
Servo Spline Count: 24Tooth
Size Conventionally sized servo names: Standard
