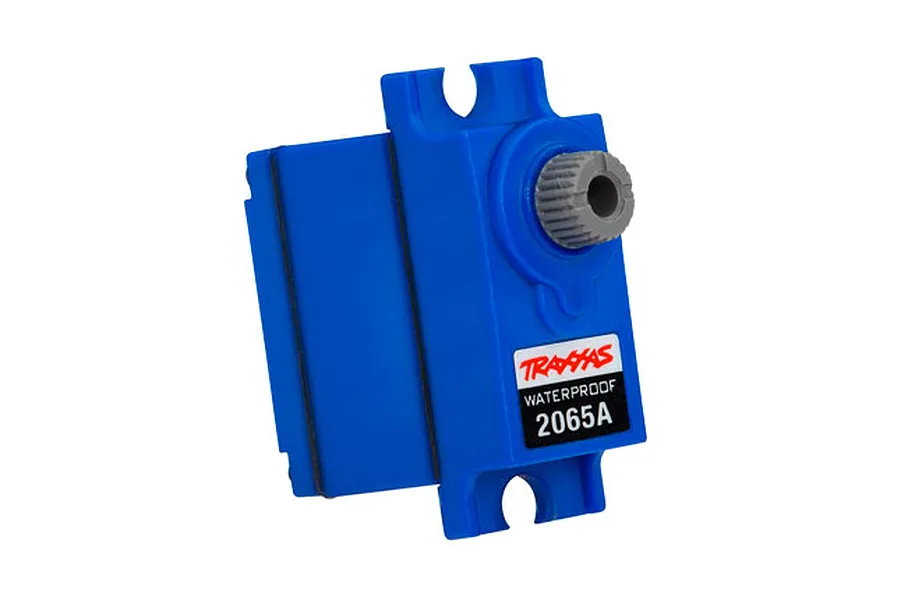

Traxxas Blue Sub Micro Waterproof 2.5kg Servo
Traxxas Blue Sub Micro Waterproof 2.5kg Servo
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
- Total Height (A) = 27mm
- Body Width (B) = 22.8mm
- Below Mount (C) = 14.5mm
- Above Mount (D) = 12.5mm
- Total Length (E) = 29.7mm
- Total Width (F) = 12.8mm
Traxxas Blue Sub Micro Waterproof 2.5kg Servo
-
Total Width
- 12.8mm
-
Top to Under Mount
- 12.5mm
-
Total Length
- 29.7mm
-
Body Length
- 22.8mm
-
Bottom to Under Mount
- 14.5mm
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.20
-
Total Height
- 27mm
-
Case Material
- Plastic
-
Rotational Degrees
- 120° (Normal)
-
Signal Type
- Digital
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 2.5
-
Gear Material
- Plastic
-
Waterproof Casing
- Yes
-
SizeConventionally sized servo names
- Sub Micro
