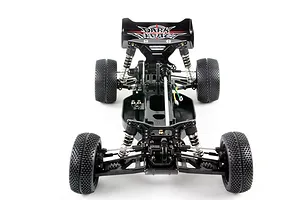

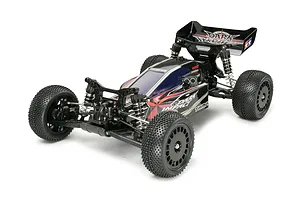

Tamiya DF-03 Dark Impact RC Buggy Electric 4WD 1/10 Kit
- Perfect for all skill levels
- Compatible with a wide range of brushed and brushless electronics
- Compatible with a wide range of upgrade parts
- Highly customisable
- Adjustable chassis length
This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.

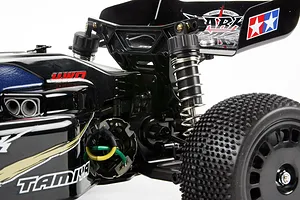

The Tamiya Dark Impact 4WD Buggy is a 1/10 scale off-road machine designed for those who crave speed, agility, and performance. This versatile and durable buggy is ready to tackle any terrain, from smooth tracks to challenging off-road courses. The Dark Impact features a mid-rear mounted motor and longitudinally mounted battery for optimal balance and jumping capabilities, making it perfect for high-flying action.

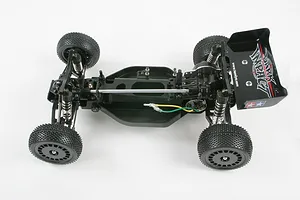

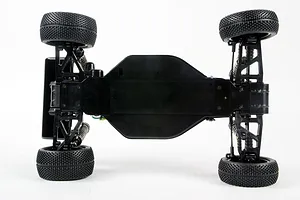

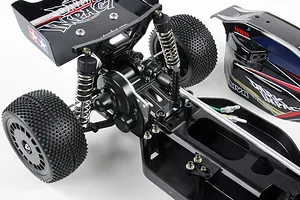

The DF-03 chassis provides a solid foundation for the Dark Impact's impressive performance. The durable monocoque bathtub frame houses the heavy battery and R/C mechanism components low and central for optimal vehicle balance. Even the oil dampers are located within the wheelbase for greater stability and cornering performance. Compact gearboxes are equipped with ball differentials, and the propeller shaft directly links to the front bevel gear to minimize power loss during transmission. The 4-wheel double wishbone suspension with long suspension arms provides excellent shock absorption and a wide range of tuning options.
With its combination of powerful performance, durable construction, and versatile features, the Tamiya Dark Impact 4WD Buggy is the perfect choice for RC enthusiasts of all skill levels.
- High-performance 1/10 4WD buggy chassis designed for off-road running

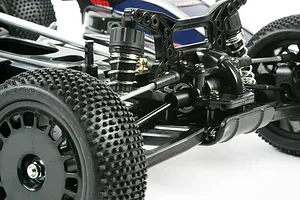

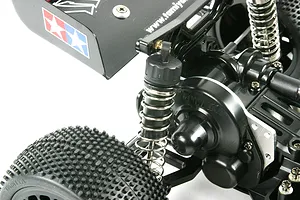

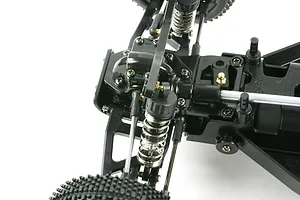

- 4-wheel independent double wishbone suspension with CVA oil dampers and extra-long suspension arms
- Sealed differential gearbox for protection and smooth operation
- Full ball bearings throughout the drivetrain for efficiency and reduced friction
- Includes a 540 type motor for ample power
- Newly designed off-road tyres and wheels with larger diameter, width, and tread pattern for excellent performance on hard dirt tracks
- High-Density Spike Tyres K (4WD/Front, 62/25) and High-Density Spike Tyres K (Rear, 62/35) provide optimal grip and traction
- Large Dish Wheels (4WD/Front, 62/25) and Large Dish Wheels (Rear 62/35) offer durability and a stylish look
- 2.94 internal gear ratio for a balance of speed and acceleration
- Genuine Tamiya Product
- Length: 387mm (15.24")
- Width: 250mm (9.84")
- Height: 145mm (5.71")
- Wheelbase: 272mm (10.71")
- Weight: 1156g (2.55 lbs)
- Chassis: Off-Road (DF-03 Chassis Type)
- Drivetrain: 4WD
- Suspension: Oil Filled Coil Over Shock Absorbers
- Motor: Tamiya 540 Sized Brushed Motor
- ESC: Tamiya Brushed ESC
- 1x 1/10 DF-03 Dark Impact 4WD Electric Off Road RC Buggy Kit
- 1x 540 Sized Brushed Motor
- 1x Tamiya Brushed ESC
- 1x Compatible 7.4V LiPo or 7.2V NiMH Battery
- 1x Compatible Charger

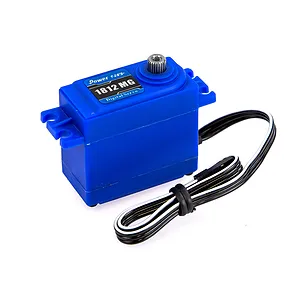

- 1x Compatible 1/10 Scale Servo

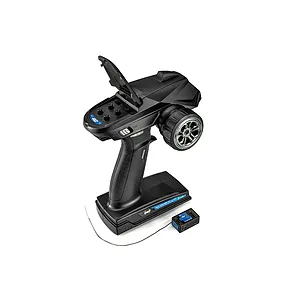

- 1x 2+ Channel Transmitter & Receiver
- Polycarbonate Compatible Paint
- AA Batteries For Transmitter
-
Suited Motor/ESC Type
- Electric
-
Spur Gear
- 78T
-
Max LiPo Power
- 2S (7.4v)
-
Wheel Hex Size
- 12mm
-
Pinion Gear
- 26T
-
Front Shock Oil
- 400cSt
-
Rear Shock Oil
- 400cSt
-
Battery Connector
- Tamiya
-
Completion
- Kit
-
Drivetrain
- 4WD
-
Max LiPo Power
- 2S (7.4v)
-
On/Off Road
- Off Road
-
Chassis Type
- Buggy
-
Power Source
- Electric Brushed
-
Skill Level
- Intermediate
-
Scale
- 1/10
