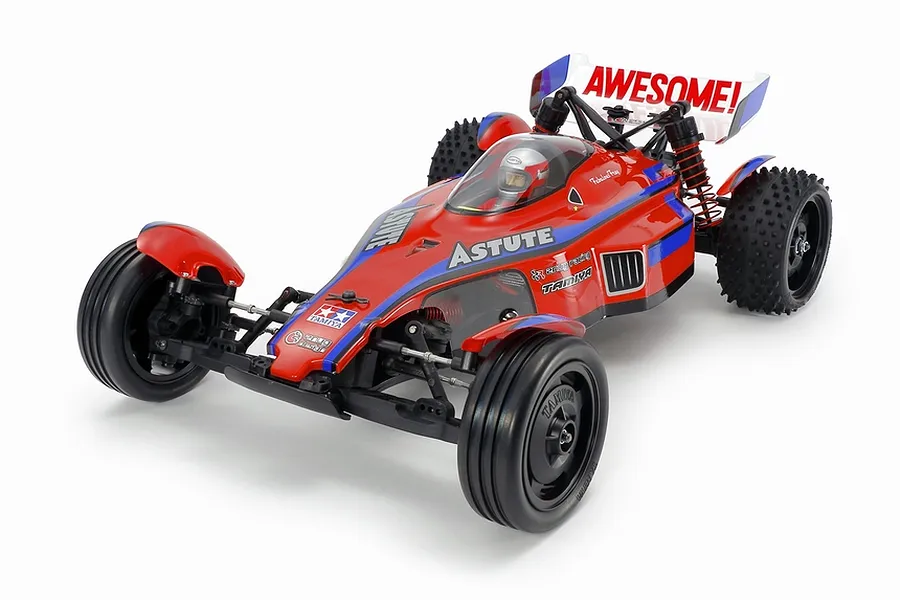

Name: Tamiya TD2 Astute RC Buggy Electric 2WD 1/10 Scale Kit - Red Limited Edition
Brand: Tamiya
SKU: TAM-47482
Price: 437.90 AUD
Availability: Discontinued

Overview

Please Note:

This kit comes without an ESC, Servo, Battery, Charger, Motor or Transmitter and will come with a painted body that may require cutting, and drilling.

The Tamiya Astute (2022) Limited Edition is a special release of the iconic off-road buggy, now featuring a pre-painted and pre-cut body for added convenience and a stunning finish. This 1/10 scale RC car is perfect for both new and veteran hobbyists who want to focus on the excitement of building and driving without the extra steps of painting the body. The Astute is built on the new TD2 chassis, a high-performance platform based on the successful TD4 design.

The TD2 chassis boasts a front inboard suspension layout, resulting in a slim and low-profile design that enhances handling and stability. The front suspension arms have a 25-degree skid angle for exceptional ground clearance and off-road capability, while CVA oil dampers provide smooth and responsive suspension movement. The one-piece monocoque frame ensures a rigid and durable structure, and the use of a ball differential and full ball bearings throughout the driveline guarantees smooth and efficient power transfer. The midship transverse motor layout with a 3-gear transmission delivers optimal balance and improved performance. With its combination of classic design, modern technology, and ready-to-run convenience, the Tamiya Astute (2022) Limited Edition is a must-have for any RC enthusiast.

Features

1/10 scale electric radio control car assembly kit of the Astute 2022, a mid-class rear-wheel drive buggy
Pre-painted and pre-cut polycarbonate body in red, designed by Kota Nezu of znug design
Distinctive front and rear mini fenders also pre-painted and pre-cut

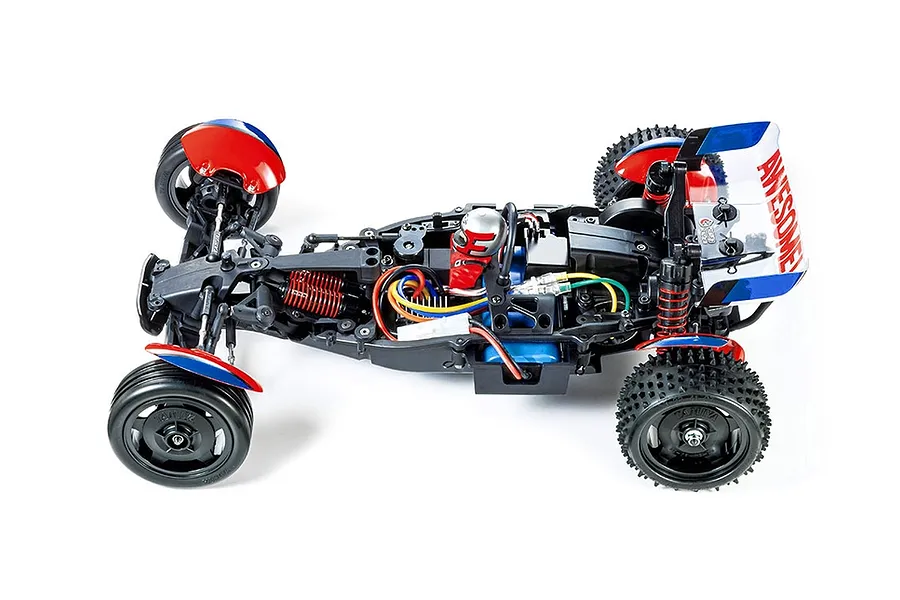

TD2 chassis with midship motor and rear-wheel drive configuration for balanced handling
Inboard front suspension and centrally arranged mechanism for a low centre of gravity
Heavy running battery placed horizontally at the rear for optimal traction
Sealed gearbox with built-in ball differential for smooth cornering
Four-wheel independent double wishbone suspension with CVA oil dampers
Adjustable camber angle using turnbuckle shafts on the upper arms
25-degree attack angle on the front suspension for optimal 2WD buggy performance
Ribbed pattern front tyres and square spike rear tyres for a balance of steering and grip
Hexagonal hubs on the front wheels for compatibility with various wheels
Genuine Tamiya Product

In the box

1x Tamiya Astute RC Buggy Electric 2WD 1/10 Scale Kit

You'll need

1x Compatible 7.4V LiPo or 7.2V NiMH Battery
1x Compatible Charger
1x Compatible 1/10 Scale Servo
1x 2+ Channel Transmitter & Receiver
1x Compatible 540 Sized Motor
1x Compatible ESC
AA Batteries For Chosen Transmitter

Highlights

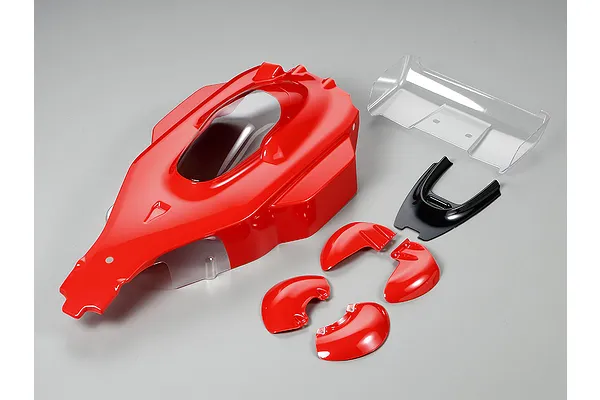

Limited Edition

The car's striking red body, black cockpit interior, and red fenders create a bold and sporty aesthetic. A fighter jet-style canopy and included driver figure enhance the realism, while the polycarbonate front fender and clear side pontoons add a touch of modern flair.

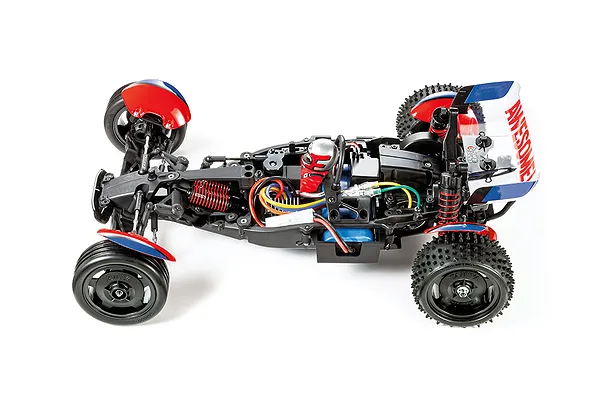

Rear Wheel Drive

The TD2 chassis features a rear-wheel-drive configuration with a mid-mounted motor and rear-biased weight distribution for optimal traction and handling. The drivetrain includes a sealed gearbox with a ball differential, reinforced steel joint cups, and a three-gear system for smooth and efficient power delivery.

Oil Filled Shock Absorbers

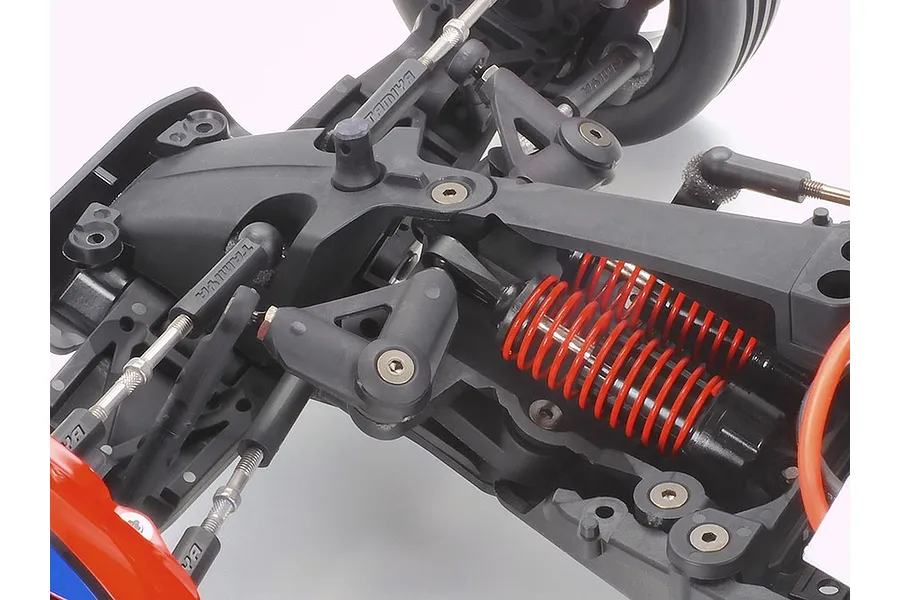

The front inboard suspension features a 25-degree attack angle and CVA oil filled shocks for smooth and responsive handling. The rear suspension utilises a double wishbone configuration with CVA oil filled shocks and adjustable toe-in for precise tuning.

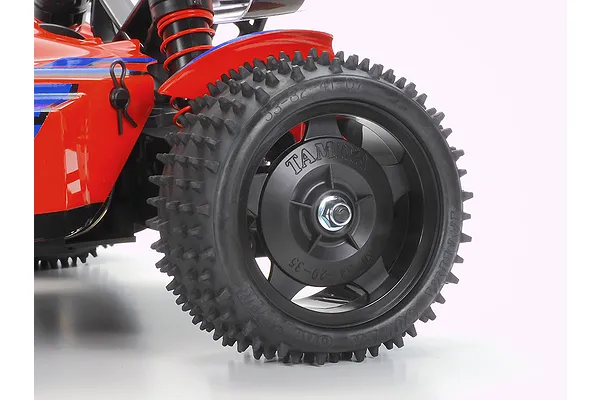

Stylish Wheels

The black star dish wheels, with their hexagonal hubs and ribbed pattern tyres, provide excellent directional stability and a stylish look. The square spike tyres on the rear wheels offer maximum grip and enhance the car's off-road capabilities.

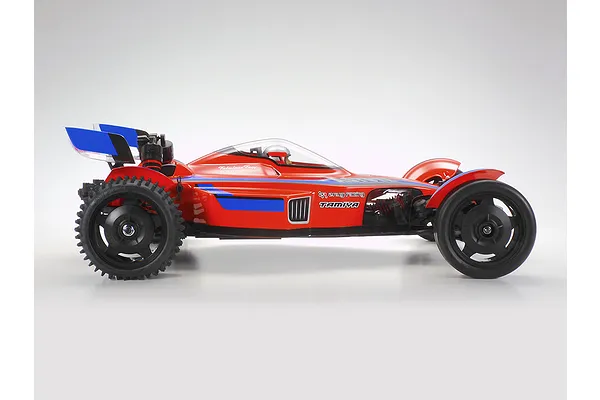

LCG Chassis

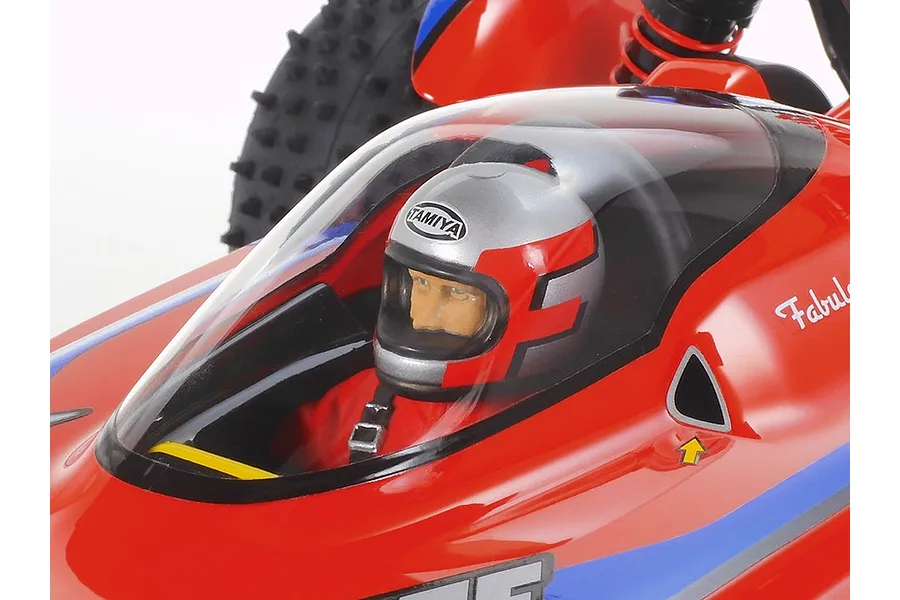

The car features a low centre of gravity design for enhanced stability and handling. The cockpit resembles a fighter jet canopy and includes a driver figure for added realism. Two types of spacers allow you to adjust the rear wing downforce, and the polycarbonate front fender is pre-painted and pre-cut for convenience.

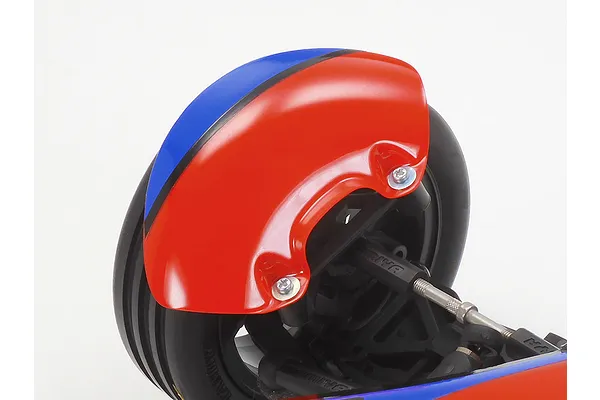

Hub Mounted Wheel Arch

The car features a stylish front fender that's both functional and visually appealing. The pre-painted polycarbonate construction and blue accent sticker create a distinctive look that complements the car's overall design.

Specifications

Length	387mm (15.24")
Width	246mm (9.69")
Height	125mm (4.92")
Wheelbase	284mm (11.18")
Weight	Varies
Chassis	Buggy (TD2)
Drivetrain	4WD
Suspension	Oil Filled Coil Over Shock Absorbers
Motor	Not Included
ESC	Not Included
