Tamiya Super Avante RC Buggy Electric 4WD 1/10 Scale Kit - Yellow/Blue

Tamiya Super Avante RC Buggy Electric 4WD 1/10 Scale Kit - Yellow/Blue

Videos

Tamiya Super Avante RC Buggy Electric 4WD 1/10 Scale Kit - Yellow/Blue

Brand: Tamiya | MPN: 47481
discontinued
Description

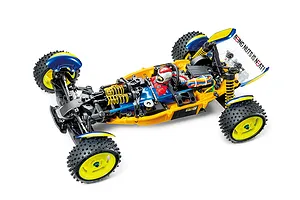

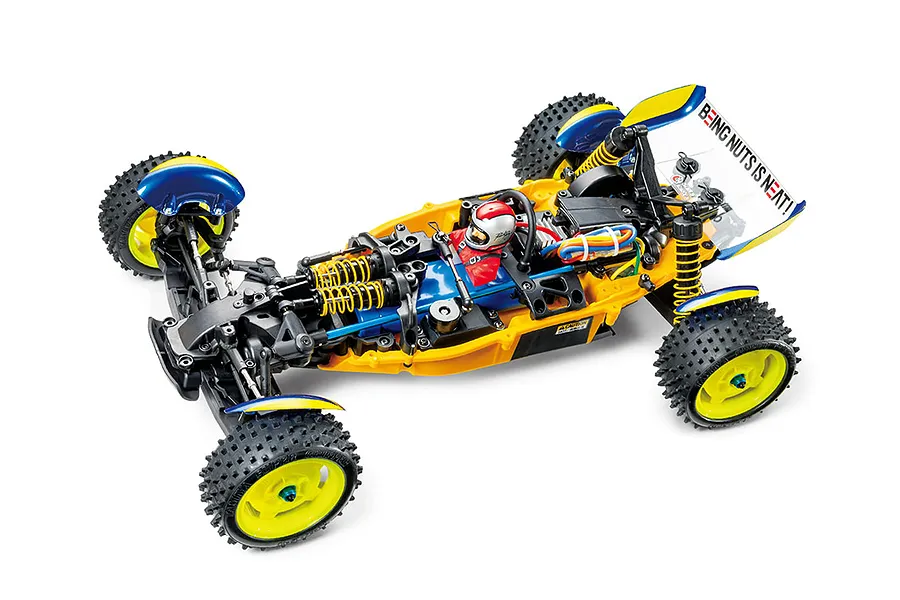

The Super Avante is a new 1/10 R/C 4WD off-road buggy assembly kit employing the newly designed TD4 chassis and a stylish body by Kota Nezu of znug design. The front inboard suspension enables an exceptionally low profile design, with a shaft-driven 4WD drivetrain powered by a midship motor and front/rear ball differentials plus full ball bearings. The futuristic polycarbonate body features numerous clear sections, a cockpit-rear buttress, and four mini fenders.

Features
  • Pre-painted body shell
  • This is a 1/10 R/C assembly kit
  • Eye-catching polycarbonate body (inspired by Tamiya classic Avante) designed by Kota Nezu of znug design
  • Newly designed shaft-driven 4WD chassis based on a one-piece monocoque frame with ball differentials for front and rear, longitudinal battery pack position in the centre, and midship transverse motor
  • TD4 chassis employs a front inboard suspension layout which eliminates the need for a front damper stay and offers slim, low-profile form

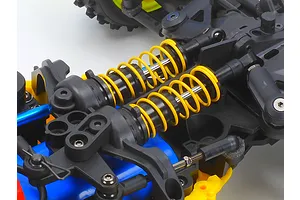

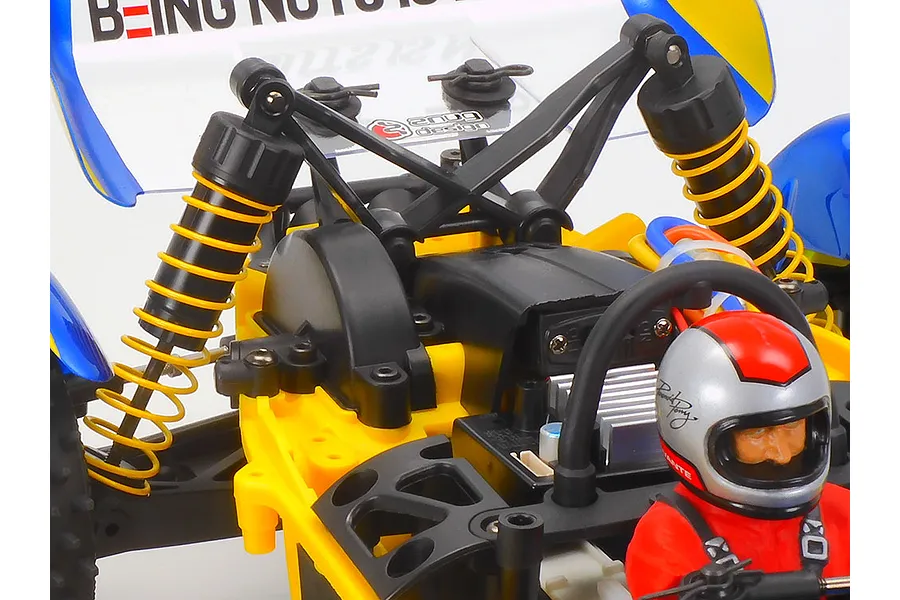

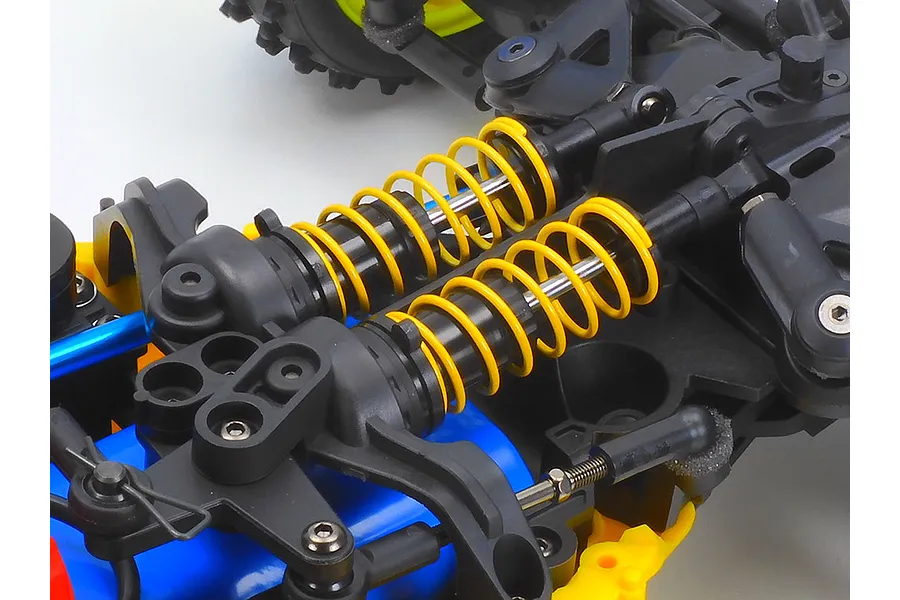

  • Four wheel double wishbone suspension with CVA oil dampers
  • Full ball bearings
  • Two link rods and crank arm transmit movement of the left-side servo to the three-piece steering arm setup
  • Turnbuckle shafts for upper arms facilitate camber angle adjustment
  • Star dish wheels paired with square spike tires for off-road grip

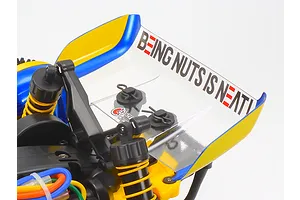

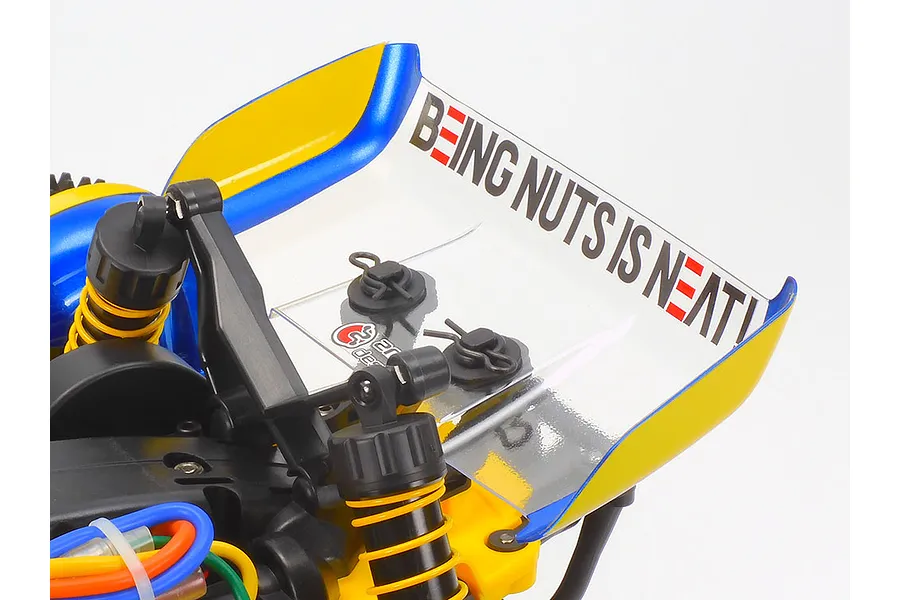

  • Choose between high and low type wing stays to adjust downforce depending on road surface
  • Comes with a driver figure and high-torque servo saver
Included Items
  • 1x 1/10 Super Avante TD4
Required Items
  • 2-channel R/C system with ESC
  • R6/AA/UM3 batteries for transmitter
  • Battery pack & charger
Videos
Specifications
Length
387mm, Width: 246mm, Height: 117mm (with low wing stays)
Wheelbase
283mm
Tread
214mm (front), 205mm (rear)
Plastic bathtub frame
Shaft-driven 4WD
Front & rear ball differentials
3-piece steering tie-rod
4-wheel double wishbone suspension
Tire width/diameter
32/82mm (front), 41/82mm (rear)
CVA oil dampers
Gear Ratio
10.71:1
Type 540 motor
Electronic Speed Controller (ESC) sold separately

RC Car
Scale
1/10
Completion
Kit
Skill Level
Intermediate
Power Source
Electric Brushed
Chassis Type
Buggy
On/Off Road
Off Road
Drivetrain
4WD
Factory Specs
Wheel Hex Size
12mm
